Rockshox Lyrik/Yari

Technology

This will make your fork feel like a completely different fork,
Low speed damping that’s firm but still blows-off to be plush on small bumps,
Reduced fork dive that eases the fork through the travel without harshness,
No more high speed compression spikes and no more bottoming with the optional ABS system.
Low speed compression and rebound adjusters help fine tune the valving as to how it transitions from low to mid and when the high speed kicks in,
Much more effective than the other dampers attempt to add high speed adjustment without the proper shim stack.

ABS not recommended for smaller travel set-ups of 150-120 mm

All cartridges are optimized for current travel.
If you plan on changing the travel in the future, please let us know so the proper cartridge tube can be installed.

Lyrik/Yari Cartridge

Specifications

• Replacement open bath maintenance free speed sensitive damper assembly, "set it and forget it"
• 20 mm ID damper tube with shimmed 4 port MX style compression and rebound valving pistons
• Upper fork cap adjuster screw with 22 clicks of activated low speed rebound
• Base valve adjuster screw with 22 clicks of activated low speed compression adjustment
Optional Hydraulic Anti-Bottoming System (ABS) for end of stroke bottoming resistance
• Speed sensitive multi-stage shimmed compression, midvalves and rebound valving
• Custom valved and set-up for each rider with printed set-up charts
• Fork spring and air pressure recomendations help us tune to to your weight riding style
Midvalve kit included with standard cartridge to prevent fork dive, adds low speed compression without
harshness, optional midvalve revalving shim kit and set-up charts available
• Designed to be self-installed or send it to us for installation if you need us to do the install

Optional FvAT/HSB
Floating Valving Assisted Threshold High Speed Blow-off System


click here to add it to your cartridge

For the firmer feel without harshness, have that big hit set-up that still feels plush on square edged bumps!

Also
Available for those who want to fiddle with their set-up:
Optional revalving kit for compression and rebound pistons, with revalving set-up charts

• Weight approx. 300 grams

Need us to install it for you, just send your fork to us and we will install it for $100 including Spectro 85/150 oil.

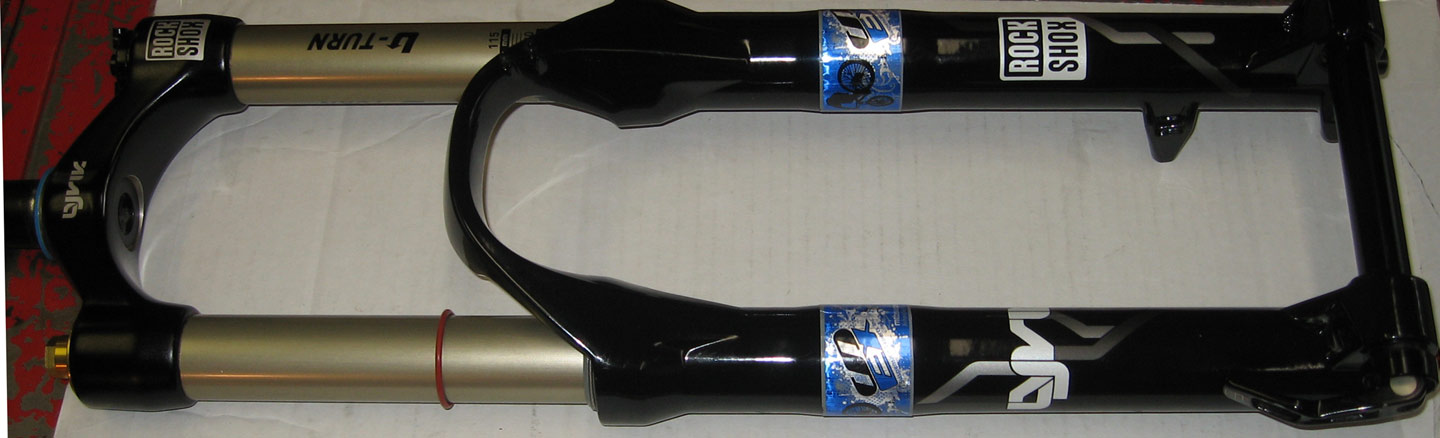

Lyrik 20 mm Cartridge kit

available for 160 mm, 170 and 180 mm models



Base Nut and Compression Adjuster

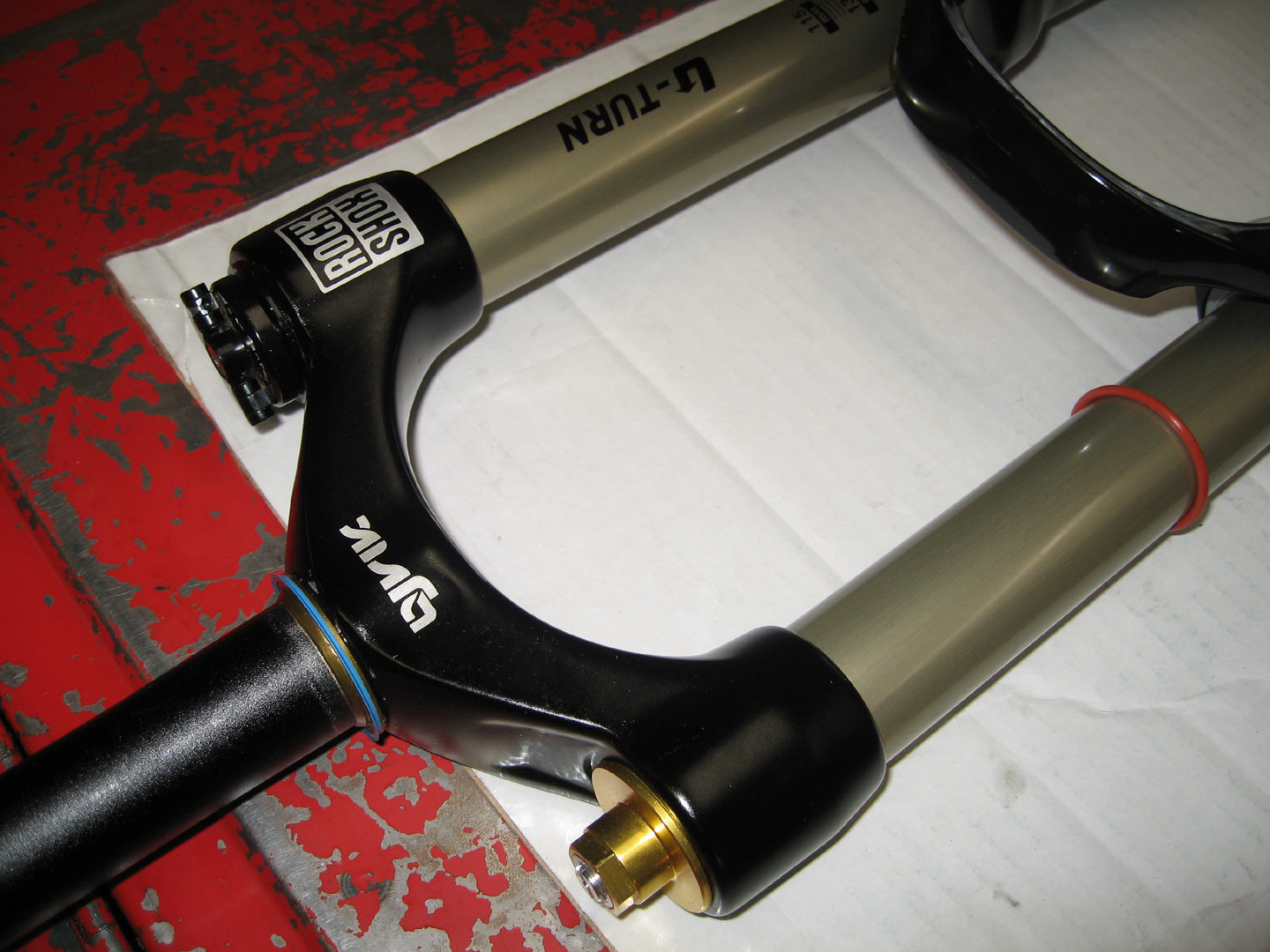

New Flush Style Rebound Fork Cap

Available for all models of


2007-2015 Rockshox Lyrik 160/170mm

2016-19Rockshox Lyrik 27.5/29er 120/130/140/150160/170/180mm

2016-19 Rockshox Yari 27.5/29er 120/130/140/150160/170/180mm

New versions are all slightly different lengths and not reverse compatible with pre 2015 forks

Push ACS3 coil conversion kits
Push ACS3 coil conversion kits are compatible with our cartridge.
In order to make the overall spring rate as linear as possible we recommend the minimum or no ramp pressure.
Choose the spring for your weight that gives you 22% sag with 5-8 mm of preload.
We prefer to control bottoming with the use of our optional ABS on the damper side.
This will create a more linear spring system without any mid to end stroke ramp-up and will improve deep square edged hits and better control on jump faces.
The reason you are buying the coil system is to improve the feel of the air spring system and eliminate some of the maintenance issues. The coil will reduce the stiction and smooth out the drag in the beginning of the travel. With the stock damper the compression is too harsh and has to be setup very soft to feel acceptable, since you are converting to coil the tokens will not be able to be used to stop bottoming, Push has designed an end of stroke(last 1/3) to add this progression back into the spring system to allow the rider to create ramp-up to assist the linear coil system from bottoming. This air system is adjustable and is essentially not needed or will be set to 0 psi with proper damping system that we are producing, we are trying to make the fork feel as linear as possible with either the air system, ie no extra tokens needed or with a coil system no air assist system needed. As with all Motocross bikes and most of the early MTB coil forks they used larger amounts of oil in the fork spring side and this height of the fork oil could be varied to create progression. As forks were made lighter this oil was eliminated from the coil leg to save weight and the damper side created all the progression needed or the damper side provided a hydraulic anti-bottoming system, as with our open bath damper design can do. Remember long before air forks were designed to work well, coil forks ruled the planet and we originally designed our cartridge for these coil systems, nothing new here!

Includes 20 mm Cartridge, Adaptor kit and MidValve Kit preinstalled

$449

Download: 2016-19 Lyrik/Yari open bath installation manual (14.9 MB)
(same as pike manual)

Yari requires the damper and lower snap ring to be remove like the older Lyrik's, install like the newer Pikes.

Download: Yari damper Removal and Lyrik 35 mm older Installation and Set-up Manual Rev C(13.5 MB)

Custom valved and set-up to rider weight, ability and riding style



For details on Cartridge click here:

To order tools, revalving kits, and replacement adaptors click here:



Choose the type of riding that you will be doing so we can custom valve it to your specific needs.

Click here for a description of our definitions

Type of Riding



Choose your fork year that the cartridge will be installed in.

Fork Year



Choose your fork model that the cartridge will be installed in.

Fork Model

Choose rider weight.

Choose your fork travel that the cartridge will be installed in.

Fork Travel

Choose rider weight.


Rider weight is without gear, we add 5-7 lbs for DH gear, 7-10 lbs for All-Mtn/Freeride.

Rider Weight

Choose the spring rate/air pressure you will be using which gives you 22% sag.
We need this number to help set-up your fork rebound damping correctly.

Click here for sag setting Tips

Spring
Rate/Pressure

Choose your rider ability for us to set-up the cartridge.

Rider Ability











ABS Option

Click here for more details

Add option here

Add for 2016 Yari or Lyrik 27.5 and 29er forks, included with older Lyrik's.

Price $89.95

ABS Option

Price $89.95, during initial build.

Price $89.95, plus labor($89) to reto fit, send your cartridge to us for installation.

















Have us install your cartridge for you

Ship us your fork, we will install your new cartridge
includes Spectro 85/150 Oil

Add option here, does not include shipping back to you, we will adjust your shipping total depending on where you live in the world and send you a Paypal invoice for the difference. This is not a rebuild, it assumes your fork is in good working condition with no leaks or scratches on the stanchions.

Price $100



Installation

Price $100, plus shipping difference









:
