Segway X260 /Light Bee X / Sur-Ron X / Talaria Sting

E-bikes

Shock

8 inch/203 mm travel
Works with the stock Progressive Linkage(stock leverage/progression curve or equal leverage/progression with aftermarket upgraded linkage)
Not recommended for linkages that raise the rear as these generally decrease the overall progression.
Linkage is coil Compatible with additional ramp up supplied by bumper limited to 265 lb riders with 500 lb spring
Springs available 300/350/365/425/450/600*/700* 38 mm ID Fits FastAce/Avalanche Woodie
350/400/450/500/550/650 36 mm Inside Diameter KKE springs need adaptor collar for DNM
450/550/650/750 35 mm Inside Diameter for DNM only

*Special Order

Configuration
Shock
OEM build Configuration

10.5 x 3.5

Model
AVA Tuning options
Tuning Cost
Complete Shock
Rating

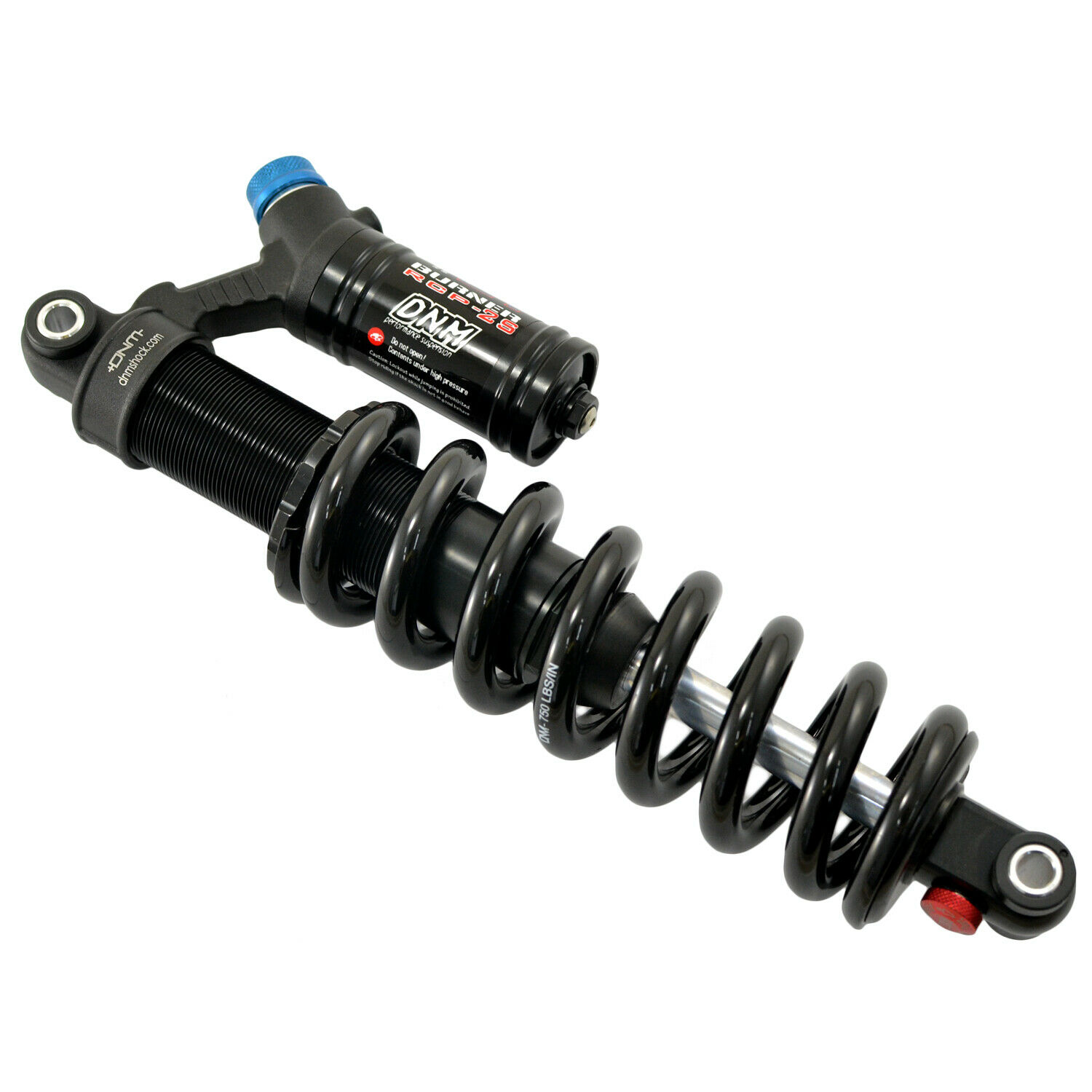

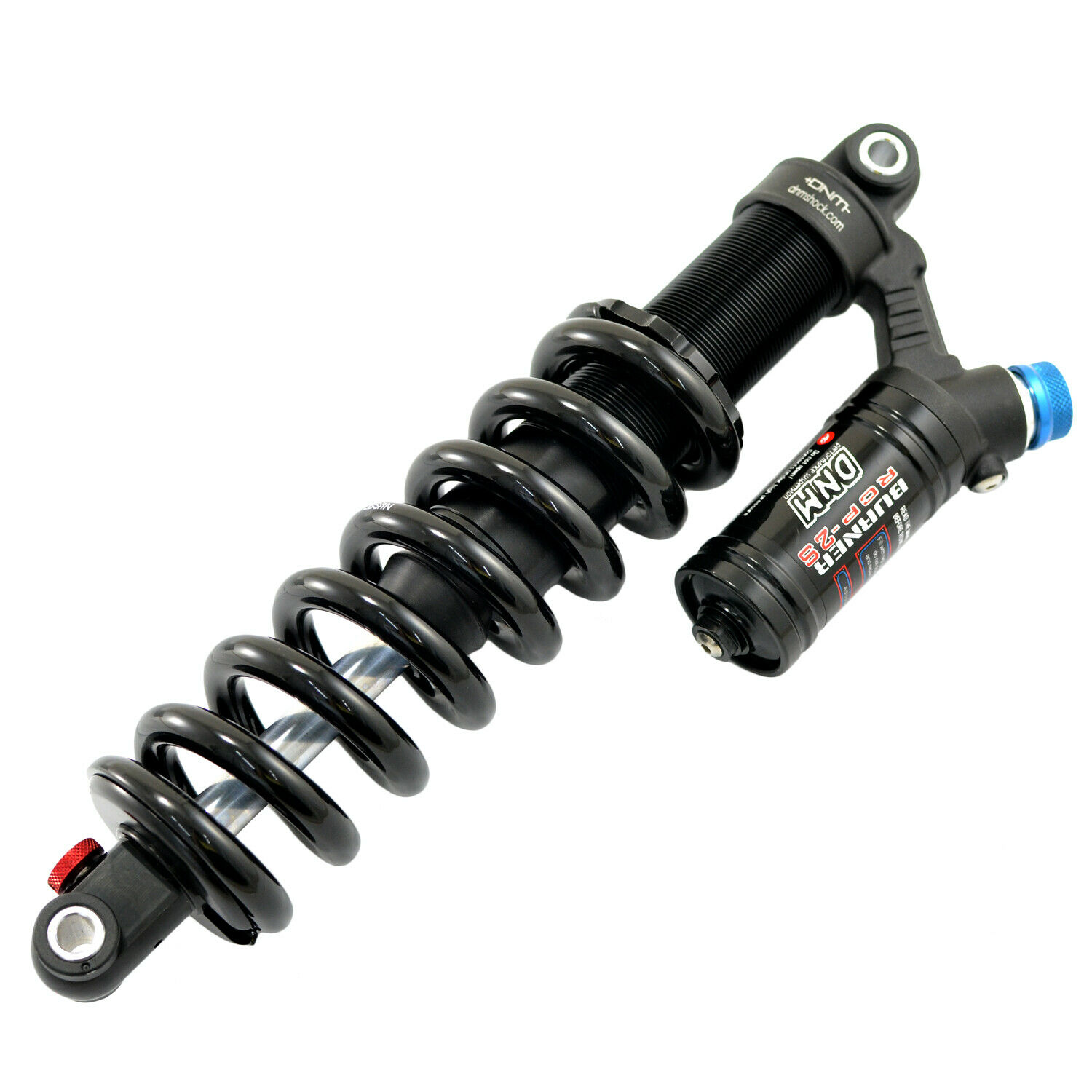

DNM Burner
SSD Mods/Tuning

$279

Custom Valved

$599

Custom Valved Available now call!

8
Fastace
SSD Mods/Tuning

$279

Custom Valved

-
8
KKE
SSD Mods/Tuning

$279

Custom Valved

-
8



Recommended Best Coil Option
Model
AVA Tuning options
Cost
Total Cost/with Shock
Rating

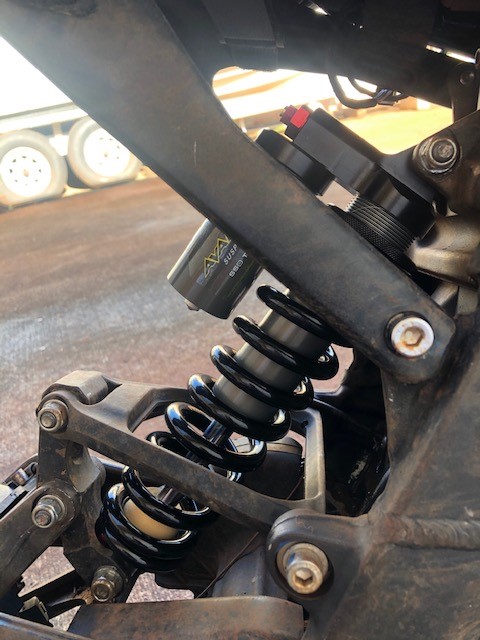

Avalanche Woodie 10.5 x 3.5 click here for more info OUT of Stock

Custom Tuned Included
$1099
10
Custom Tuned Included

$849
10

Fox VanRc

SSD Custom Tuned Included

$899

Custom Tuned Available now call!

8
Marzocchi BomberCR
(custom size 10.5 x 3.5)
SSD Custom Tuned Included

$899

Custom Valved Available now call!

8



Fork



Recommended Travel at 22-25% Sag 200-203 mm

Fox Evol Air spring

RS Debon Air

Coil options Ava Hybrid coil/air



Fork Options
OEM build Configuration
Model
AVA Tuning options
Cost
Rating
DNM conventional
not currently available
$499.00
8
DNM USD
Volcano

Available Now!
Most cost effective option

Custom tuning/revalve, service and includes
custom spring

New MidValve with adjustable float to tune internal compression
(Soft/Med /Firm)

New two stage Rebound Shim system to prevent packing and elminate bounce back.
Tuned for rider weight.

Single spring system without Harsh rubber ramp system.
46, 53 and 59 lb/in springs



$499.00
8
FastAce
not currently available
$499.00
8



Recommended Best Air Option

203 Travel

Model
AVA Tuning options
Cost
Rating
Fox 40
Open Bath Cartridge
$549*
7
Bomber 58
Open Bath Cartridge
$549*
7
Rockshox Boxxer
Open Bath Cartridge
$549*
6
Recommended Best Hybrid Coil/Air Option

203 Travel

Model
AVA Tuning options
Cost
Complete Fork
Rating
Fox 40 (40 mm Kashima)
Hybrid Coil/Air Open Bath Cartridge
$808*

10
Bomber 58 (40 mm)
Hybrid Coil/Air Open Bath Cartridge
$808*

9
Rockshox Boxxer (35 mm)

Hybrid Coil/Air Open Bath Cartridge

Limited to 185 lb riders

$808*

$2495

Custom Valved Available now call!

9

*This does not include the cost of the original fork, just the tuning options, installation and service extra.
# Limited Spring Rates available for heavier riders

Recommended Best Coil Option
Riders below
185 lbs

203 Travel

Model
AVA Tuning options
Cost
Complete Fork
Rating

Maintou Dorado Comp
37 mm

Open Bath Cartridge with ABS/HBO system
$648**

8.5

*This does not include the cost of the original fork, just the tuning options, installation and service extra.
** Requires OEM top and bottom caps to be adapted to and modified.
# Limited Spring Rates available for heavier riders



Other Resources

Prickly Reinforced Billet Linkage

Improved strength, better clearance and stronger bearings.
Not recommended for linkages that raise the rear as these generally decrease the overall progression.



Reinforced Billet Rear Linkage Triangle



Reinforced Billet Rear Linkage Rocker
