Boxxer 35mm 2010-2019 Cartridge and Adaptor Kit
fits both 26 and 27.5
The best performance modification you will ever do to your fork!
Complete replacement of the damper with our open bath cartridge!
This will make your fork feel like a completely different fork, because it is!
Low speed damping that’s firm but still blows-off to be plush on small bumps,
Reduced fork dive that eases the fork through the travel without harshness,
No more high speed compression spikes and no more bottoming with the ABS system.
Low speed compression and rebound adjusters help fine tune the valving as to how it transitions from low to mid and when the high speed kicks in,
Much more effective than the other dampers attempt to add high speed adjustment without the proper shim stack.
20 mm Cartridge Damper Kit with fork rebound adjuster cap, ABS cone/lower
casting adaptor, oil lock adaptor ring, adaptor arbor sealing nut
and oil lock snapring.
Self install kit includes custom valving, and midValves.
Thinking of upgrading your old Boxxer to the new Charger
Just order our open bath cartridge for your old Boxxer and be done with it.
Replacement open bath maintenance free speed sensitive
damper assembly, "set it and forget it"
20 mm ID damper tube with shimmed 4 port MX style compression and rebound valving pistons
Upper fork cap adjuster screw with 22 clicks of activated low speed rebound
Base valve adjuster screw with 22 clicks of activated low speed compression adjustment
Hydraulic Anti-Bottoming System (ABS) for end of stroke bottoming resistance
Speed sensitive multi-stage shimmed compression, midvalves and rebound valving
Custom valved and set-up for each rider with printed set-up charts
Fork spring and air pressure recomendations help us tune to to your weight riding style
Midvalve kit included with standard cartridge to prevent fork dive, adds low speed compression without
harshness, optional midvalve revalving shim kit and set-up charts available
Designed to be self-installed or send it to us for installation if you need us to do the install
Weight approx. 300 grams
Need us to install it for you, just send your fork to us and we will install it for $100 including Spectro 85/150 oil.
Floating Valving Assisted Threshold High Speed Blow-off System
For the firmer feel without harshness, have that big hit set-up that still feels plush on square edged bumps!
Download: Boxxer 35 mm
Available for all models of
Custom valved and set-up to rider weight, ability and riding style
Need to have us install it for you? Ship your fork to us and we can install it for $100 plus shipping, includes Spectro 85/150 oil.
Reviews and Comments:

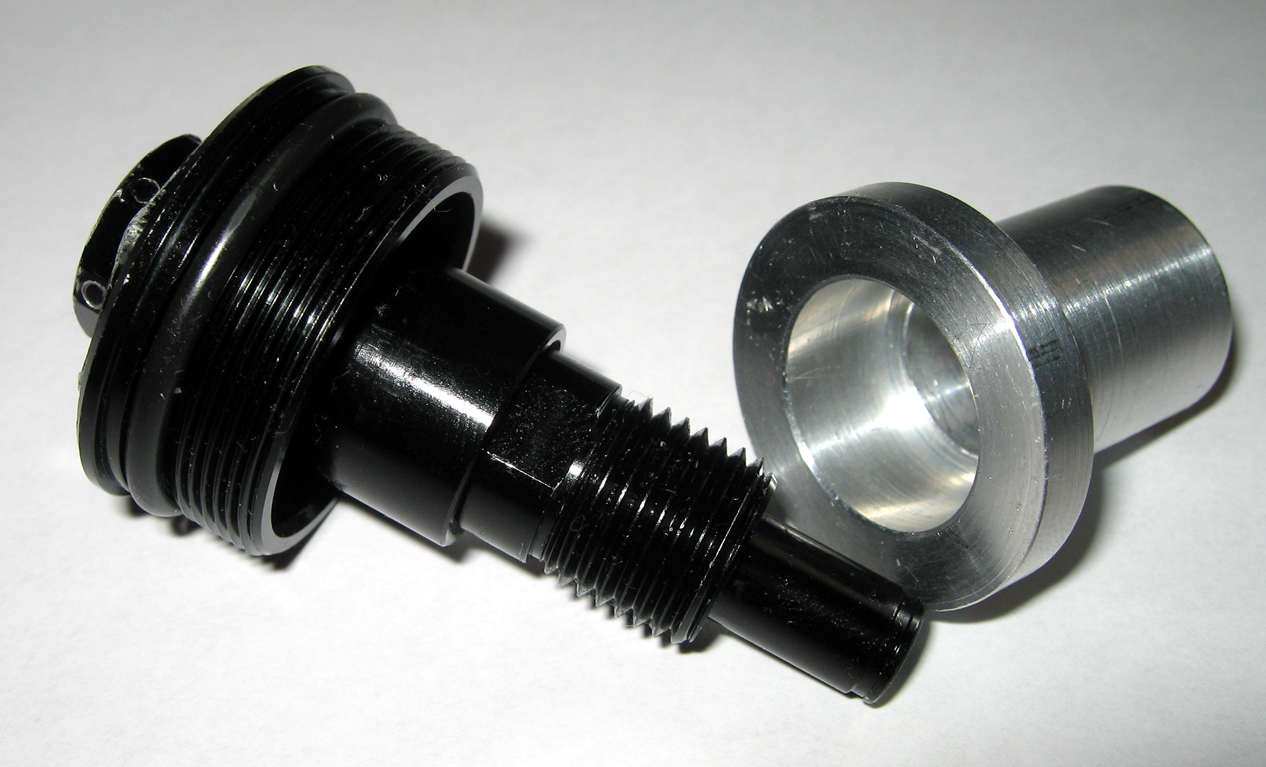

Add external preload adjustment to your Boxxer
In the stock fork you have to remove the fork cap and

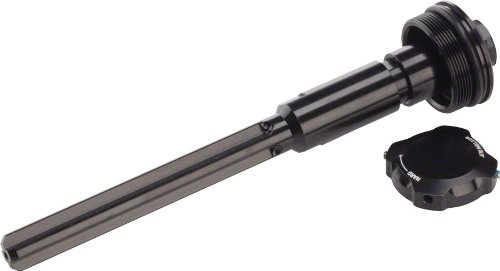

Boxxer 2010-2016 Bottom-Out/Dropstop fork cap with Dropstop removed
Easy installation, threads on by hand, no machining required.
This allows for adjustment from 0 to 10 mm
Add option here
Price $29.95 out of stock
Race/RC requires stock Team/RC2C Bottom-Out fork cap purchased from Rockshox
Have us install your cartridge for you
Ship us your fork, we
will install your new cartridge
Add option here, does not include shipping back to you, we will adjust your shipping total depending on where you live in the world and send you a Paypal invoice for the difference. This is not a rebuild, it assumes your fork is in good working condition with no leaks or scratches on the stanchions.
