DHS Downhill Racing Shock

DHS-3.0 x 9.5 with extended spring collar shown with standard adjuster(high/low included with price)

DHS-3.5 x 11.25 with 1/2" stroke reducer
shown with standard adjuster(high/low included with price)

• Nitrogen charged remote rubber bladder reservoir design (Improves small bump compliance and allows for remote placement of reservoir)
• Includes custom revalve, setup for rider, frame leverage and conditions. Custom printed set-up chart included.
• Shaft speed sensitive damping for better control on rough terrain


* Replacement shocks for many OEM downhill frame:
* Available lengths will be 7.25", 7.5", 7.625", 7.75" eye to eye for 2.00" stroke.
* Available lengths will be 7.5", 7.75", 7.875", 8.00", 8.25" eye to eye for 2.25" stroke.
* Available lengths will be 8.50", 8.75", 8.875", 9.00", eye to eye for 2.50" stroke.
* Available lengths will be 8.75", 9.00", 9.125", 9.25", eye to eye for 2.75" stroke.
* Available lengths will be 9.00", 9.25", 9.375, 9.50" and 9.75" eye to eye for 3.00" stroke.
* Available lengths will be 10.5", 10.75", 10.875, 11.0", 11.25" eye to eye for 3.0/3.50" stroke.


* 2.0 / 2.25 Stroke spring rates 400, 450, 500, 600, 700, 800 lbs/in.
* 2.50 / 2.75 Stroke spring rates 350, 400, 450, 500, 550,650 lbs/in.
* 3.00 Stroke spring rates 350, 400, 450, 500, 550, 600lbs/in.
* 3.50 inch stroke spring rates 150, 360, 425 lbs/in.

• Common bleed rebound adjustment, 16 clicks.
• Independent High/low compression adjustment, 22 clicks low speed, 3.25 turns high speed
• Adjustable anti-bob compression blow-off valving
• MX seal and valving technology
• Teflon coated piston ring and shock body bore for reduced friction and heat.
• O-ring sealed DU bearings and hard anodized and or 17-4-PH stainless steel reducers
• 30 mm ID shock body and 12.5 mm OD shaft
• Heavy duty shaft bumper with anti-bottoming shape factor bumper cup chamber to prevent bottoming
* 30 mm ID shock body and 12.5 mm OD shaft
* 2.25" max OD at spring
* Weight of 7.5 x 2.25 - 1 lb (453 grams)
* Remote reservoir with hose lengths of 4.0", 7.0", 9.0", 10.0", 12.0", 13.0" and 18.0" long.

Price $749
includes steel spring and hardware reducers

Price includes the Improved Independent Hi/low adjuster

Order Here:

Choose the type of riding that you will be doing so we can custom valve it to your specific needs.

Type of Riding

Choose your shock size for your frame.

Shock eye to eye
and stroke

Choose rider weight.
Rider weight is without gear, we add 5-7 lbs for DH gear, 7-10 lbs for All-Mtn/Freeride.

Rider Weight

Choose the spring rate you will be using with the shock. Make sure that this spring gives you 30% sag with 2-3 turns of preload.
We will help you choose your correct spring if you are unable to.
Click here for sag setting Tips

Spring Rate

Choose your rider ability for us to set-up your shock.

Rider Ability

Provide us with Bike info to set-up your shock.

Year

Brand

Model

Provide us with any other info to help us set-up your shock.

Set-up Info





Applications List

Download an Owners Manual (288k)

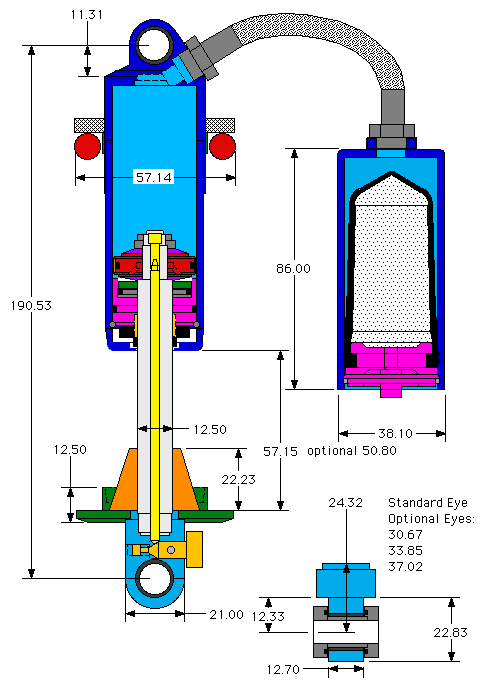

Dimensional Data
