Marzocchi 888 35mm 2004-2007 Cartridge and Adaptor Kit

The best performance modification you will ever do to your fork!

Complete replacement of the damper with our open bath cartridge!

This will make your fork feel like a completely different fork, because it is!


Low speed damping that’s firm but still blows-off to be plush on small bumps,
Reduced fork dive that eases the fork through the travel without harshness,
No more high speed compression spikes and no more bottoming with the ABS system.
Low speed compression and rebound adjusters help fine tune the valving as to how it transitions from low to mid and when the high speed kicks in,
Much more effective than the other dampers attempt to add high speed adjustment without the proper shim stack.

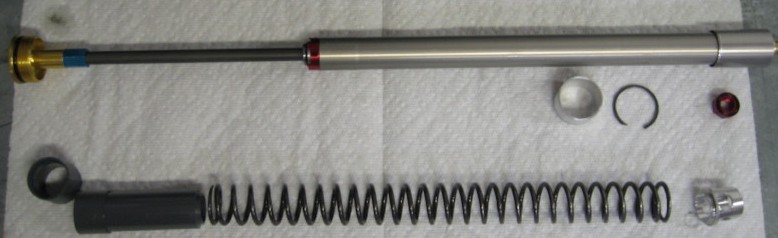

20 mm Cartridge Damper Kit with fork rebound adjuster cap, ABS cone/lower casting adaptor, oil lock adaptor ring, adaptor arbor sealing nut
and oil lock snapring.

Self install kit not available send to us for installation.

Fits all dual spring 35mm Marzocchi 888 (8inch/200 mm travel).
(some models require special fitting, make sure you include your model and year)

Specifications

• Replacement open bath maintenance free speed sensitive damper assembly, "set it and forget it"
• 20 mm ID damper tube with shimmed 4 port MX style compression and rebound valving pistons
• Upper fork cap adjuster screw with 22 clicks of low speed rebound
• Base valve adjuster screw with 22 clicks of low speed compression adjustment
Hydraulic Anti-Bottoming System (ABS) for end of stroke bottoming resistance
• Speed sensitive multi-stage shimmed compression, midvalves and rebound valving
• Custom valved and set-up for each rider with printed set-up charts
• Fork spring and air pressure recomendations help us tune to to your weight riding style
Midvalve kit included with standard cartridge to prevent fork dive, adds low speed compression without
harshness, optional midvalve revalving shim kit and set-up charts available
• Optional revalving kit for compression and rebound pistons, with revalving set-up charts
• Optional HSB compression blow-off system for the firmer feel with-out harshness
• Designed to be self-installed or send it to us for installation if you need us to do the install
• Weight approx. 300 grams



Need us to install it for you, just send your fork to us and we will install it for $100 including Spectro 85/150 oil.



• Optional FvAT/HSB
Floating Valving Assisted Threshold High Speed Blow-off System


click here to add it to your cartridge

For the firmer feel without harshness, have that big hit set-up that still feels plush on square edged bumps!

Also
Available for those who want to fiddle with their set-up:
Optional revalving kit for compression and rebound pistons, with revalving set-up charts

35mm Marzocchi 888


35mm Marzocchi 888 2004-2007 Cartridge Kit including Adaptor
and Midvalves installed, $449 plus installation.



Download: Marzocchi 888/66 35 mm Installation and Set-up Manual Rev A(36.1 MB)


For details on Cartridge click here:

To order tools, revalving kits, and replacement adaptors click here:

Available for all models of
35mm Marzocchi 888 with 8 inch travel

Custom valved and set-up to rider weight, ability and riding style

Ship your fork to us and we can install it for $100 plus shipping, includes Spectro 85/150 oil.

Choose the type of riding that you will be doing so we can custom valve it to your specific needs.

Type of Riding

Choose your fork model that the cartridge will be installed in.

Fork Model

Choose rider weight.
Rider weight is without gear, we add 5-7 lbs for DH gear, 7-10 lbs for All-Mtn/Freeride.

Rider Weight

Choose the spring rate/air pressure you will be using which gives you 22% sag.
We need this number to help set-up your fork rebound damping correctly.

Click here for sag setting Tips

Spring
Rate/Pressure

Choose your rider ability for us to set-up the cartridge.

Rider Ability





 e

Have us install your cartridge for you

Ship us your fork, we will install your new cartridge
includes Spectro 85/150 Oil

Add option here, does not include shipping back to you, we will adjust your shipping total depending on where you live in the world and send you a Paypal invoice for the difference. This is not a rebuild, it assumes your fork is in good working condition with no leaks or scratches on the stanchions.

Price $100



Installation

Price $100, plus shipping difference
