Fox DHX 5.0/4.0 Coil, and VanRC* Speed Sensitive DamperAdjuster Kit

Replaces the ProPedal Adjuster with a low speed compression adjuster and a custom valved high speed piston system in the existing Fox piggyback housing. This conversion complements
the revalved main piston to completely convert the DHX/VanRC* to a true speed sensitive damper.

...For Technical Discussion Click Here...

Includes custom valving and setup for rider, frame leverage and conditions, and printed set-up chart.

Also includes complete rebuild service, new improved seals and dust wiper system, oil, nitrogen charge and typical wear parts* included in price

*(Typical wear parts: shaft seal, dust scraper, shaft bushing, reducer DU bushings, and o-rings)

Includes Set-Up Chart

Optional:

Shape factor bottom-out bumper ($15.95)

Choice of Reservoir Volume Expansion Kit: modified reservoir( included in the cost) or extended volume cap ($49).

The larger the reservoir the less pressure increase during full compression, this pressure effects the midstroke harshness for rising rate linkages.
Also the longer the run the hotter the shock gets, and with small reservoir volumes this could double the pressure in the shock at the beginning of the stroke and make it feel topped out or over preloaded.
Regressive linkages like the "Sunday" only benefit from the bottom-out original unmodified reservoir. Most frames will need more nitrogen volume and will require the modified reservoir.
High rising rate frames and aggressive extended downhill runs on linear and progressive linkages will need the extended reservoir.



If you are looking for the SSD mods for a DHX RC4 click here:

Not available as a self install kit.

Damper Modifications apply to:

DHX 5.0
DHX 4.0
Van RC

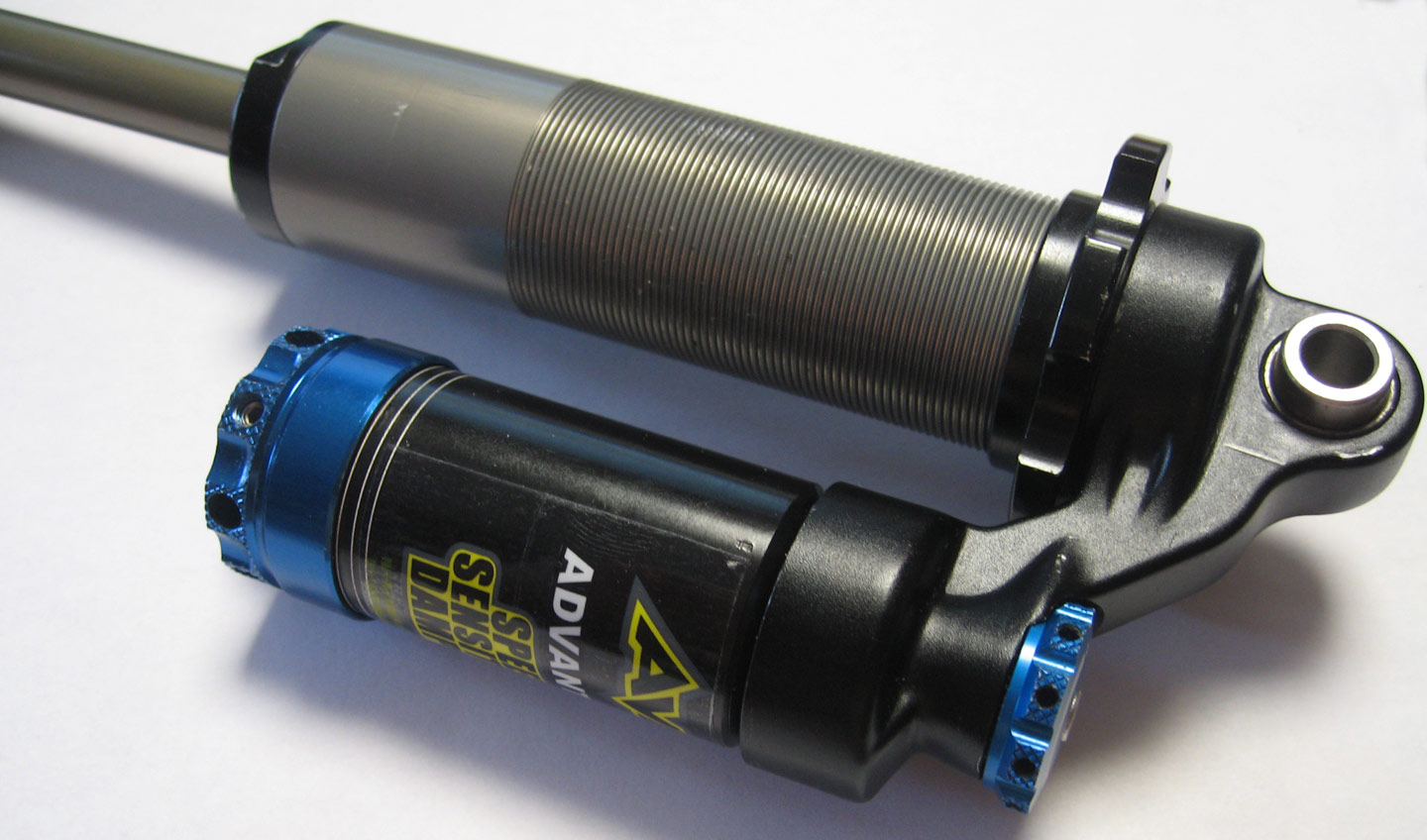

DHX 5.0 with Extended Reservoir and Shape Factor Bottom-out Bumper

VanRc with Extended Reservoir and Shape Factor Bottom-out Bumper

DHX Low Speed Adjuster and SSD High Speed Valve

Fox DHX 5.0/4.0

Speed Sensitive Damper (SSD) Adjuster Kit
and
Revalve
/Rebuild

Shock must be sent in to receive modifications.

Price $199

options shown below

Download: Whats been Done and Set-Up Manual (32.6 MB)

Comparison Chart

options shown below

* VanRC has Modified High Speed Adjuster Valving with wider range
22 click Low Speed adjuster(LSC)

Order Here and Send Shock for Modifications

Price $199

Choose the type of riding that you will be doing so we can custom valve it to your specific needs.

Click here for a description of our definitions

Type of Riding

Choose your shock model that the SSD kit will be installed in.

Shock Model

Choose rider weight.
Rider weight is without gear, we add 5-7 lbs for DH gear, 7-10 lbs for All-Mtn/Freeride.

Rider Weight

Choose the spring rate you will be using which gives you 30% sag.
We need this number to help set-up your shock rebound damping correctly.

Click here for sag setting Tips

Make sure that this spring gives you 30% sag with 2-3 turns of preload.
We will help you choose your correct spring if you are unable to.

Spring Rate

Choose your rider ability for us to set-up your shock.

Rider Ability

Provide us with Bike info to set-up your shock.

Year

Brand

Model

Provide us with any other info to help us set-up your shock.

Set-up Info

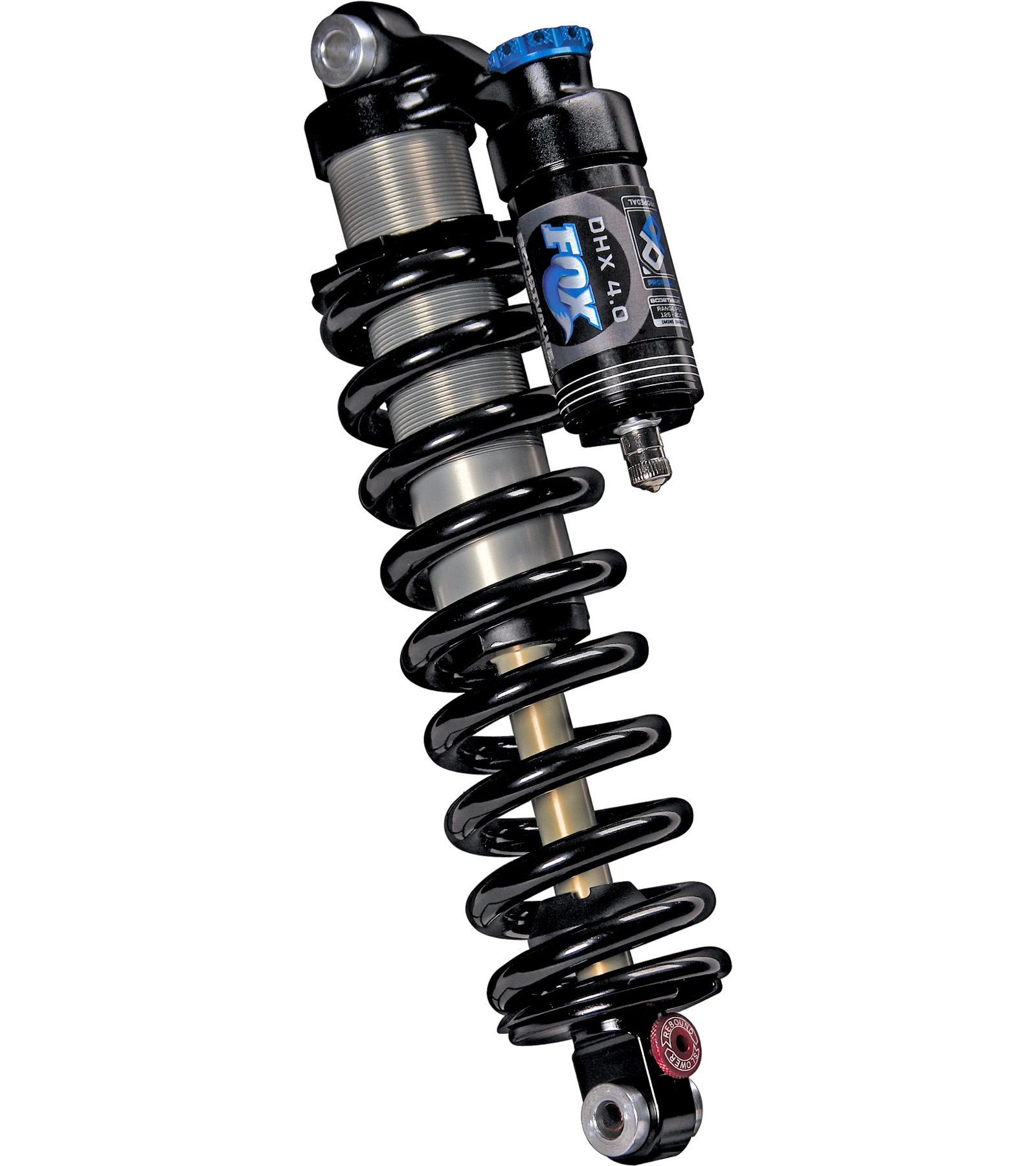

Fox DHX 5.0/4.0


Shown with Optional Extended Reservoir Cap (available now)



Fox VanRC

Shown with Optional Extended Reservoir Cap (available now)



DHX 5.0/4.0 SSD ADJUSTER


Low speed adjustment - 15 clicks provided now with the existing Blue Propedal knob

High speed adjustment - Internal Shim Stack

Revalvable High speed Shims to tune out high speed harshness and dial in bottoming control

Installs directly into the DHX housing, uses exiting Propedal knob as new low speed adjuster

Low speed adjustment - 22 clicks provided now with the existing Blue Low Speed Knob

High speed adjustment - Internal Shim Stack

Revalvable High speed Shims to tune out high speed harshness and dial in bottoming control

Modified High Speed Adjuster Valving with wider range 22 click low speed adjuster

Shape Factor Bottom-Out Bumper

Click here for Technical Description

Fox DHX RC4/5.0/4.0 and VanRC* Speed Sensitive

Shape Factor Bottom-Out Bumper

Add option here

Price $15.95

Available Now



Optional Bumper

Price $15.95











DHX Extended Reservoir Cap
shown anodized (gold)











VanRC Extended Reservoir Cap
shown anodized (
Black) - currently out of stock

Fox DHX 5.0/4.0 and VanRC* Speed Sensitive

Extended Reservoir Caps

Increases Nitrogen Volume by more than 2.2 times Stock

Eliminates midstroke shock damper stiffness caused by heat affected reservoir pressure build-up

Leak proof needle charging system

Easy to install, can be added later after SSD
modifications if desired

Adds 4.5 mm to length of DHX-5.0 reservoir.

Adds 14 mm to length of DHX-4.0 reservoir.

Adds 17 mm to length of VanRC reservoir.

Anodized

Add option here

Price $49

VanRC Cap - currently out of stock



Optional Reservoir Caps

Price $49









Fox DHX 5.0/4.0/VanRc

Improved IFP's



DHX IFP
Replacement to the left



After 2 or 3 years of riding the Internal Floating Piston
in the Fox DHX reservoirs begins to wear and allows the IFP to tip in the reservoir
and allow air and oil to leak between them. The VanRc's IFP are made of plastic and do not provide a bleed screw, these are always recommended be replaced.

This replacement IFP has been redesigned with a wider land and tighter tolerances and prevents this from happening. It is also hard coat anodized to prevent wearing out.

We may suggest you replace the stock IFP when we inspect your internals or
replace it now to prevent a blown shock in the future!

Add option here

Price $29.95

Available Now



Price $29.95

Improved IFP











DHX with remote reservoir DHR version
