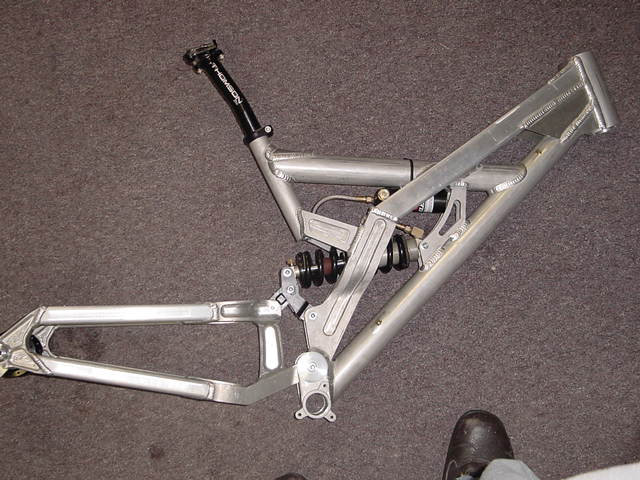

| 2003 Turner DHR |
|
|
 |
| SHOCK SPECIFICATIONS |
|
| EYE "2" EYE |
9.5 inches |
| STROKE |
3.0 inches |
| MODEL |
DHS3.0 |
| PIGGYBACK OPTION |
MAYBE |
| HOSE |
12 Inch |
| FITTING |
90 deg @ 6:00 |
| BUSHING (FRAME) |
22.0 x 6.0 |
| BUSHING (LINKAGE) |
22.0 x 6.0 |
|
|
|
|
|
|
|
|
|
| INSTALLATION / SETUP |
|
| RIDER WEIGHT |
|
| 130-165 LBS |
350 LB/IN |
| 165-195 LBS |
450 LB/IN |
| 195-230 LBS |
550 LB |
| 230-260 LBS |
600 LB Ti |
| PRELOAD |
1.5 TURNS |
| NITROGEN |
200 PSI |
| RESERVOIR PLACEMENT |
TOP TUBE |
| VALVING |
RISING RATE |
| MOUNTING CLAMP |
2.5 INCH |
|
RUBBER MOUNTS
|
1.5 X 1.5 |
|
|
| PROBLEMS / CONCERNS |
|
| MAXIMUM WEIGHT LIMIT |
260 LBS WITH Ti |
| INSTALLATION ISSUE |
NONE |
| TRAVEL CONSIDERATION |
NONE |
| CLEARANCE SPRING LENGTH |
STANDARD COLLAR |
| CLEARANCE SPRING DIAMETER |
OK |
| CLEARANCE FOR EYES |
OK |
| CLEARANCE FOR FITTINGS |
OK |
| LINKAGE RATE |
SOFT INITIALLY |
| FRAME MODIFICATIONS |
NONE |
| HOSE BEND RADIUS |
TIGHT |
| HOSE MOVEMENT |
NO ISSUE |
|
|
|
|
|
|
|
|
|
|
|
