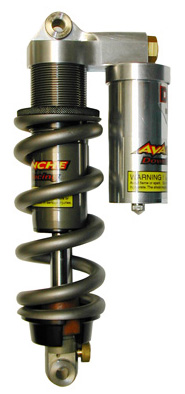

Piggyback Downhill Racing Shock

* Where space is available, this piggy shock can be made to fit many O.E.M. frames.
* Piggyback reservoir with bladder or shorter more compact internal floating piston.
* Available lengths:

Stroke	Eye to Eye	Spring Rates
2.00	7.25, 7.50, 7.63, 7.75, 8.00	500,600,700,800
2.25	7.50, 7.75, 7.87, 8.00, 8.25	500,600,700,800
2.50	8.50 ,8.75, 8.87, 9.00, 9.25	450,550,600,650
2.75	8.75, 9.00, 9.12, 9.25, 9.50	450,550,600,650
3.00	9.00, 9.25, 9.38, 9.50, 9.75	450,550,600
3.50/3.0^	10.25, 10.5, 10.63, 10.75, 11.0, 11.25	360,425

^ Stroke reducer available.

* Spring rates: 360, 425, 450, 550, 600, 700 in steel
and 450, 550, 650, 700 and 800 in Ti .
* Common bleed rebound adjustment, 16 clicks.
* High/low compression adjustment, 22 clicks
* Adjustable anti-bob compression blow-off valving
* MX seal and valving technology
* 30 mm ID shock body and 12.5 mm OD shaft
* 2.25" max OD at steel spring, 2.38 max Ti springs
* Weight of 9.0 x 3.0 with Ti 450 lb/in spring - 2 lbs
* O-ring sealed DU bearings.
* Heavy duty shaft bumper.
* Anti-bottoming shape factor chamber cup prevents bottoming

price $550 with optional Ti spring $175 extra

Piggyback Size

Eye to Eye

Ti spring must be ordered seperately

shipped ground USA, for expedited or International orders, additional charges can be added to cart below.

Click here for Dimensional Data

Click here for Downloadable DFX Files

Applications List

Download an Owners Manual (459k)

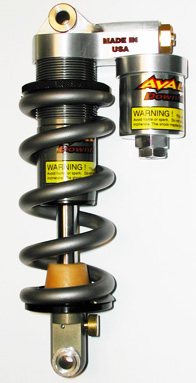

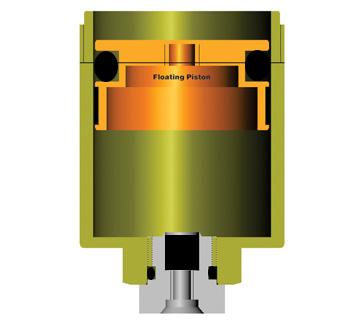

Optional More Compact

Internal Floating Piston Reservoir

34 mm long
