Monarch

SSD Modification and HSB Adjustment System

Redesigned valving system with our speed sensitive shim stack(SSD)
and Converts the Lever to HSB compression threshold adjustment System







































The current valving system of the Monarch's produce a threshold style damping system. At slower shaft speeds the shims are preloaded against the piston face and require larger hits or higher shaft speeds to open the shims to allow flow, this creates a platform feel that works great for pedaling but today's frames pedal much better and its more about how well the shock can absorb small bumps and handle the rough and rocky high speed hits.

We change the valving system to transition smoother into the low and midspeed valving circuit, by allowing the shims to open gradually and setting up the mid and highspeed valving based on the leverage of the frame.



The SSD/HSB conversion takes a different approach to the shock adjustment.

Descend/Pedal SSD/HSB low speed Threshold option

The lever system can now be run in the middle position because the low speed threshold can blow-off and transition smoothly into the main shim stack without that small bump harshness or having to aggressively try to force the valving to over come that stock valving threshold. The softer lever position provides less low speed threshold with a small amount of low speed bleed. The firmer position creates a firm low speed threshold with almost no blow-off forcing the shims to do all the work creating a pedal platform that still absorbs medium and larger hits well.

Pedal only/Firmer SSD/HSB low speed Threshold option

We do offer the same service for a less active/firmer pedal feel. This SSD/HSB option still offers the plusher high speed square edged feel but
with a less noticeable low speed blow-off to provide better pedal performance in all the positions.
This option is recommended for riders looking for that cross-country feel.

Technical discussion:

The low speed circuit is converted to our HSB system, this allows for a
increased low speed compression threshold that still blows off on small bumps
to create that small bump plushness without the harsh feel.

The HSB also provides for a smooth transition of low speed compression
to the main piston valving shim stack.

High and mid speed compression system is controlled by the custom valved speed sensitive shimmed compression main piston. This is set-up to match the leverage and rider terrain.

Mid and high speed rebound is controlled by a custom valved shim stack to match the riders weight
(air can pressure) and the leverage of the frame.
Low speed rebound can now be fine tuned by the red rebound knob,
i.e. more usable positions rather than coarse tuning for air pressure.

Includes custom revalve and setup for rider, frame leverage and conditions

and printed set-up chart.


We will recommend the air can size and air can spacer if needed

Optional ABS(anti-bottoming system) available for more aggressive and bigger riders or smaller riders on regressive linkage frame.

Also includes complete rebuild service, oil, nitrogen charge and typical wear parts* included in price.

New lower friction, higher temperature shaft seal and IFP seal.
*(Typical wear parts: shaft seal, reducer DU bushings, and o-rings)

**The shock must be in good working condition with no scratches or dents on moving parts, if the air can is leaking, it should also be noted that air side will not be modified in anyway and any air side issues will not be addressed. (Air can rebuild parts not included, self-install from Rockshox only)
Service interval will remain the same as before the modifications)

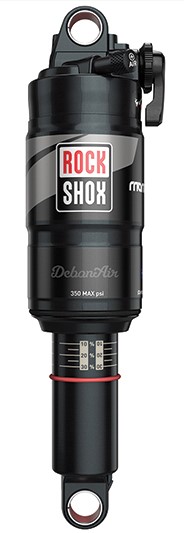

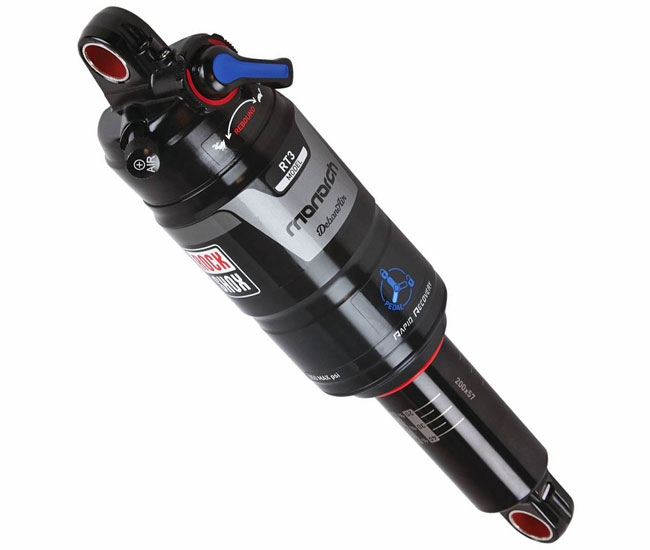

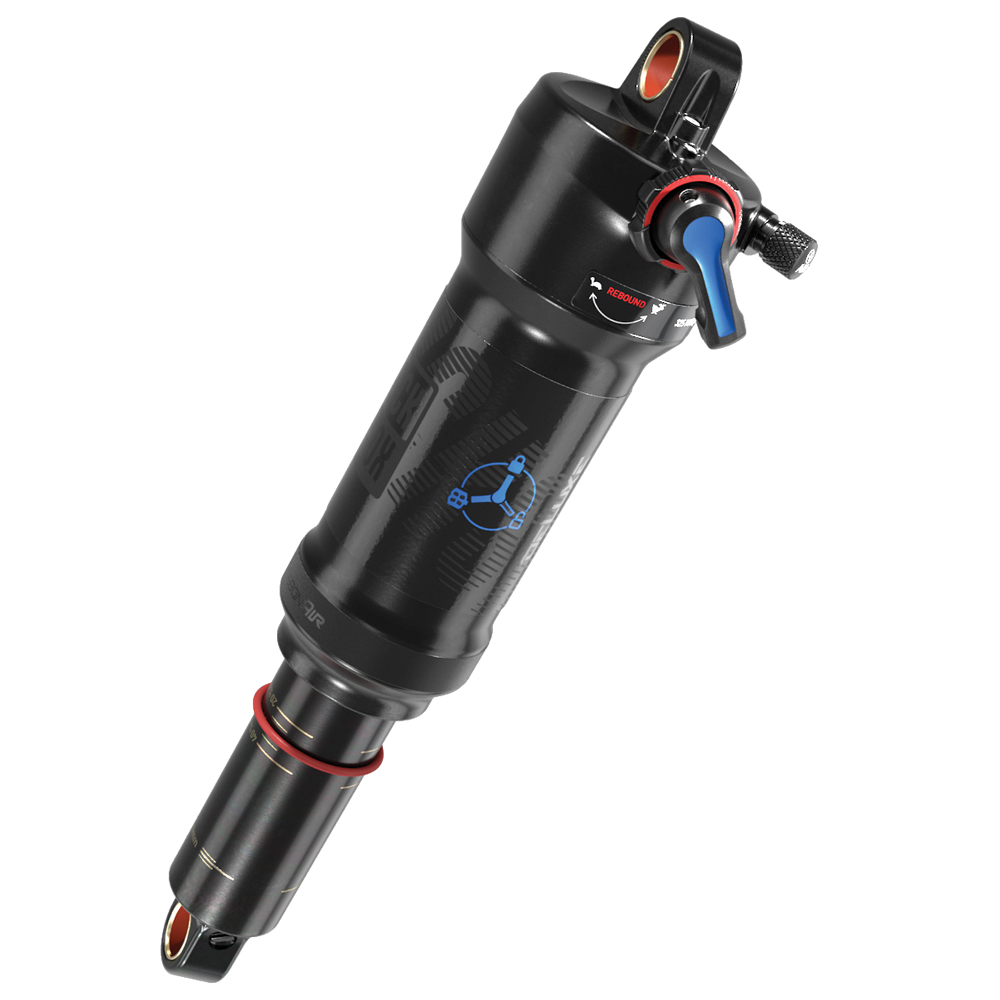

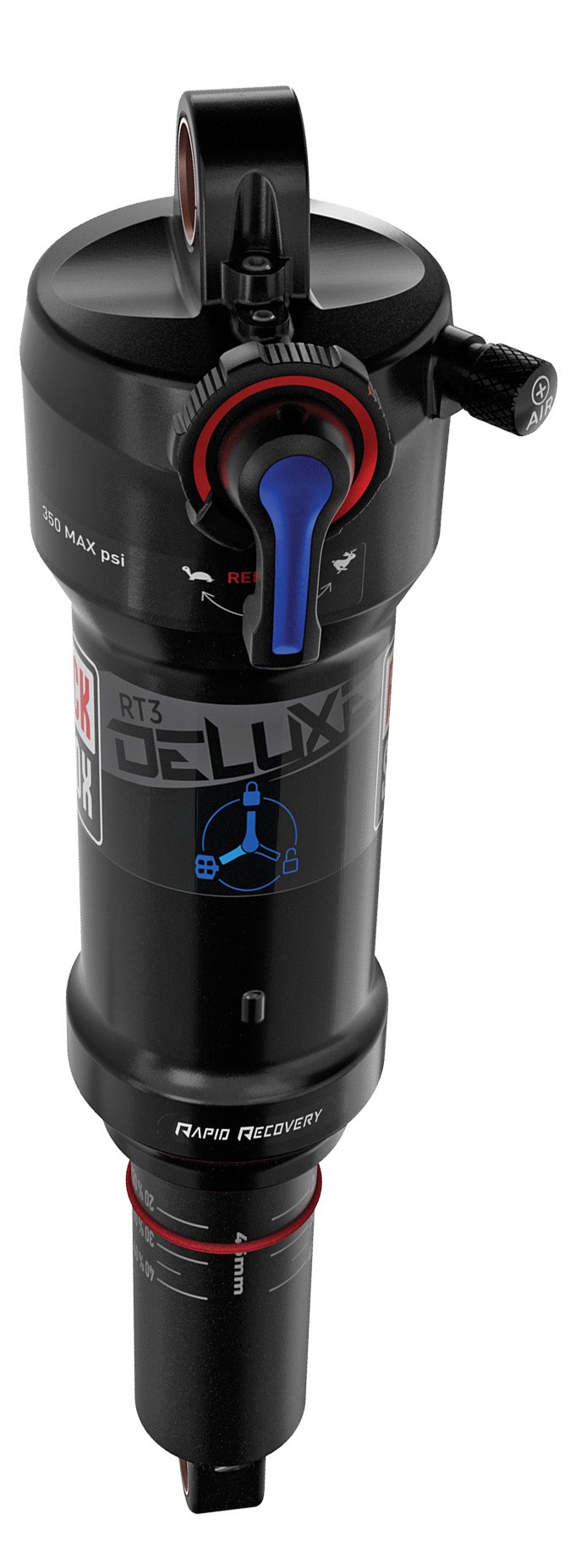

Rockshox Monarch

2014-16 RT3


RL and XX DebonAir can be tuned but no adjustment(open/lock)

Available now for the 2014-16 RT3, RL and XX and some select models, call us for availability.

SSD Modification
&
HSB Adjustment System
and
Revalve
/Rebuild

Shock must be sent in to receive modifications.

Price $179

Order Here and Send Shock for Modifications

Choose the type of riding that you will be doing so we can custom valve it to your specific needs.

Click here for a description of our definitions

Type of Riding

Choose your shock model that the SSD kit will be installed in.

Shock Model

Choose your SSD/HSB threshold tune option the kit will be set-up with.

SSD/HSB
Threshold tune



Choose rider weight.
Rider weight is without gear, we add 5-7 lbs for DH gear, 7-10 lbs for All-Mtn/Freeride.

Rider Weight

Choose the air pressure you will be using which gives you 30% sag.
We need this number to help set-up your shock rebound damping correctly.

Click here for sag setting Tips

We will help you choose your air pressure if you are unable to.
Service should be performed every 100 hrs, same as Fox recommends. For high leverage frames
or heavier riders requiring sag pressures over 185 psi, you should be aware that the
service life of damper oil will be dramatically decreased.

Air Pressure

Choose your rider ability for us to set-up your shock.

Rider Ability

Provide us with Bike info to set-up your shock.

Year

Brand

Model

Provide us with any other info to help us set-up your shock.

Set-up Info









Air Can Rebuild Kit
optional service



Air can and air sleeve
Rebuild and and seal replacement



After 50 hrs of riding the air can seals and air sleeve piston seals need replacing and if not replaced periodically
this allows the internal air pressureto leak between the positive and negative chambers reducing the effectiveness of the air spring system.
The air can seals also become jammed up with dirtand mud which can cause damage to the air piston shaft and create a leak path for the air can pressure.

We may suggest you replace the stock seals when we inspect your internals or
make plans to replace them yourself to prevent these issues!
This does not include damaged or dented air cans or air piston shafts, seals only.

Shocks newer than 50 hours need only be cleaned and reassembled typically.

Add option here

Price $29.95 includes parts and labor



Air Can Rebuild

Price $29.95
