Rockshox Kage RC and R

SSD Modification and Adjustment System
(No Compression adjust for the R Model)





Technical discussion:
.

High and mid speed compression system is controlled by the custom valved speed sensitive shimmed compression main piston. This is set-up to match the leverage and rider terrain.

Mid and high speed rebound is controlled by a custom valved shim stack to match the riders weight
(air can pressure) and the leverage of the frame.
Low speed rebound can now be fine tuned by the red rebound knob,

Includes custom revalve and setup for rider, frame leverage and conditions

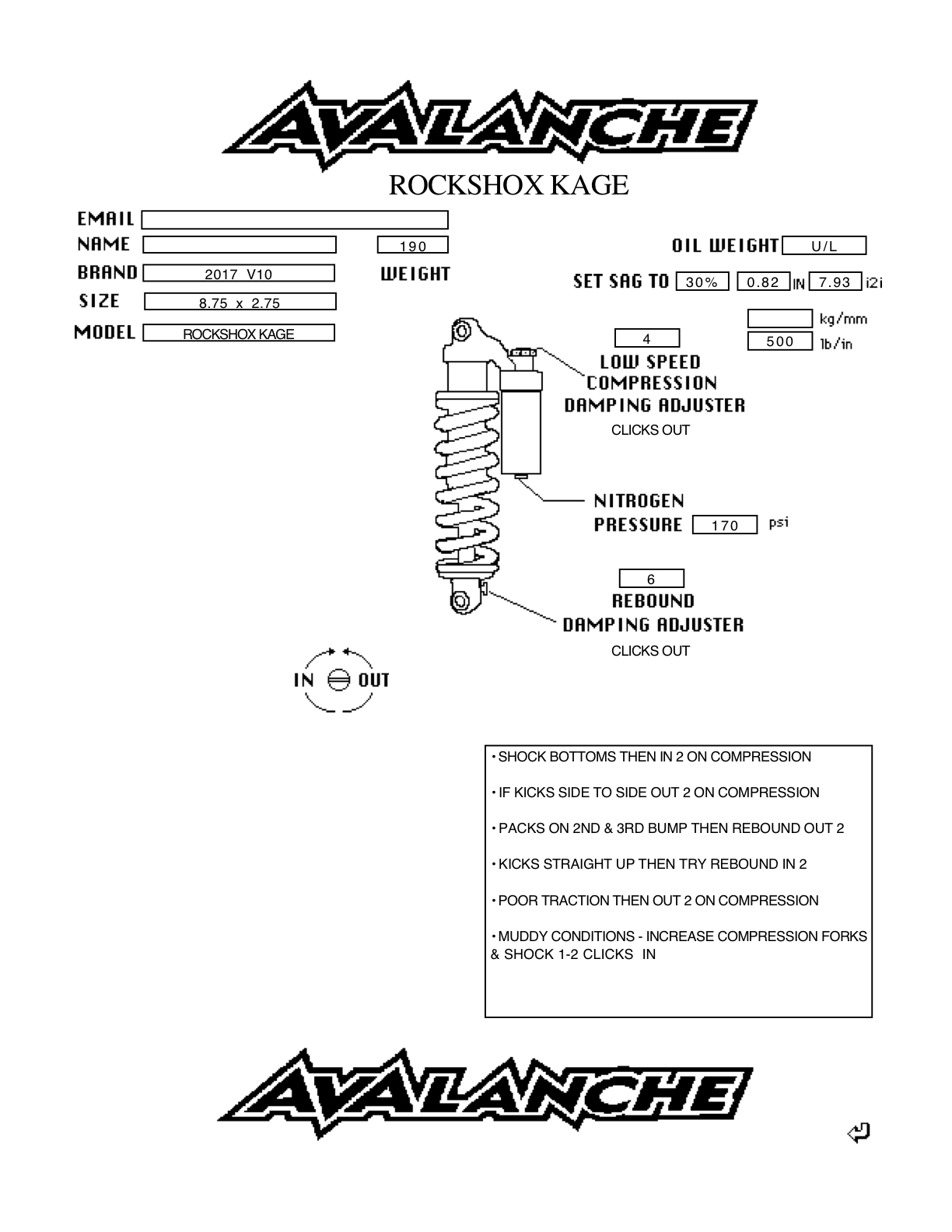

and printed set-up chart.


We will recommend the spring rate needed to match your weight to the leverage.

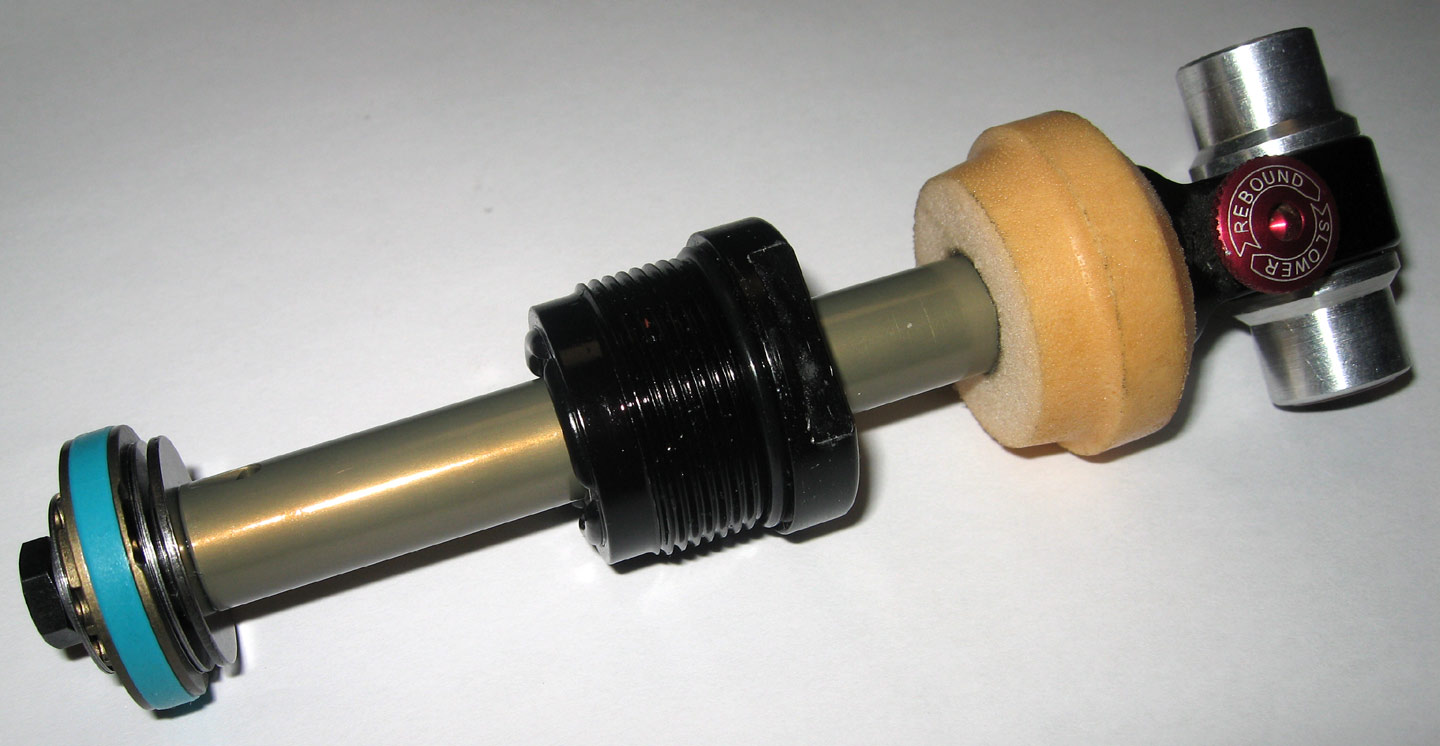

Optional Shape factor bottom out bumper.

Also includes complete rebuild service, oil, nitrogen charge and typical wear parts* included in price.

New lower friction, higher temperature shaft seal and IFP seal.
*(Typical wear parts: shaft seal, reducer DU bushings, and o-rings)

**The shock must be in good working condition with no scratches or dents on moving parts.
Service interval will remain the same as before the modifications)
















Rockshox Kage RC and R

SSD Modification
and
Revalve
/Rebuild



Shock must be sent in to receive modifications.

Price $249

Order Here and Send Shock for Modifications



Choose the type of riding that you will be doing so we can custom valve it to your specific needs.

Click here for a description of our definitions

Type of Riding

Choose your shock model that the SSD kit will be installed in.

Shock Model

Choose rider weight.
Rider weight is without gear, we add 5-7 lbs for DH gear, 7-10 lbs for All-Mtn/Freeride.

Rider Weight



Click here for sag setting Tips

Make sure that this spring gives you 30% sag with 2-3 turns of preload.
We will help you choose your correct spring if you are unable to.

Spring Rate

Choose your rider ability for us to set-up your shock.

Rider Ability

Provide us with Bike info to set-up your shock.

Year

Brand

Model

Provide us with any other info to help us set-up your shock.

Set-up Info

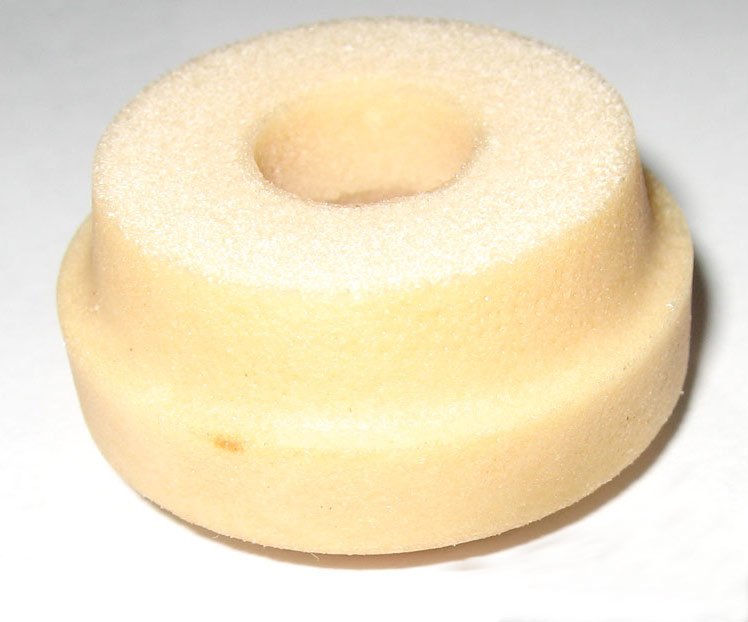

Shape Factor Bottom-Out Bumper

Click here for Technical Description

Shape Factor Bottom-Out Bumper

Add option here

Price $15.95

Available Now



Optional Bumper

Price $15.95
