Technology

RAMP
(Remote Adjustable Modulated Progression)

Add one Ramp system to the stock air side to correct the negative spring pull down effect and to increase the effective linear travel of the fork.

Call to place an order, cost $259 for Air Ramp System and $239 for Hydraulic Ramp System with the purchase of our open bath system.







We are pleased to announce our new External Progression Adjustment System for Fox Forks. The Air and Hydraulic Ramp System.

Air RAMP System
RAMP (Remote Adjustable Modulated Progression)

Used to control the rate of progression of the Evol air spring system.
Compatible with Fox air forks with bleeder valves in lowers. Models include all 2021 models of the Fox 36, 38 and 40’s.

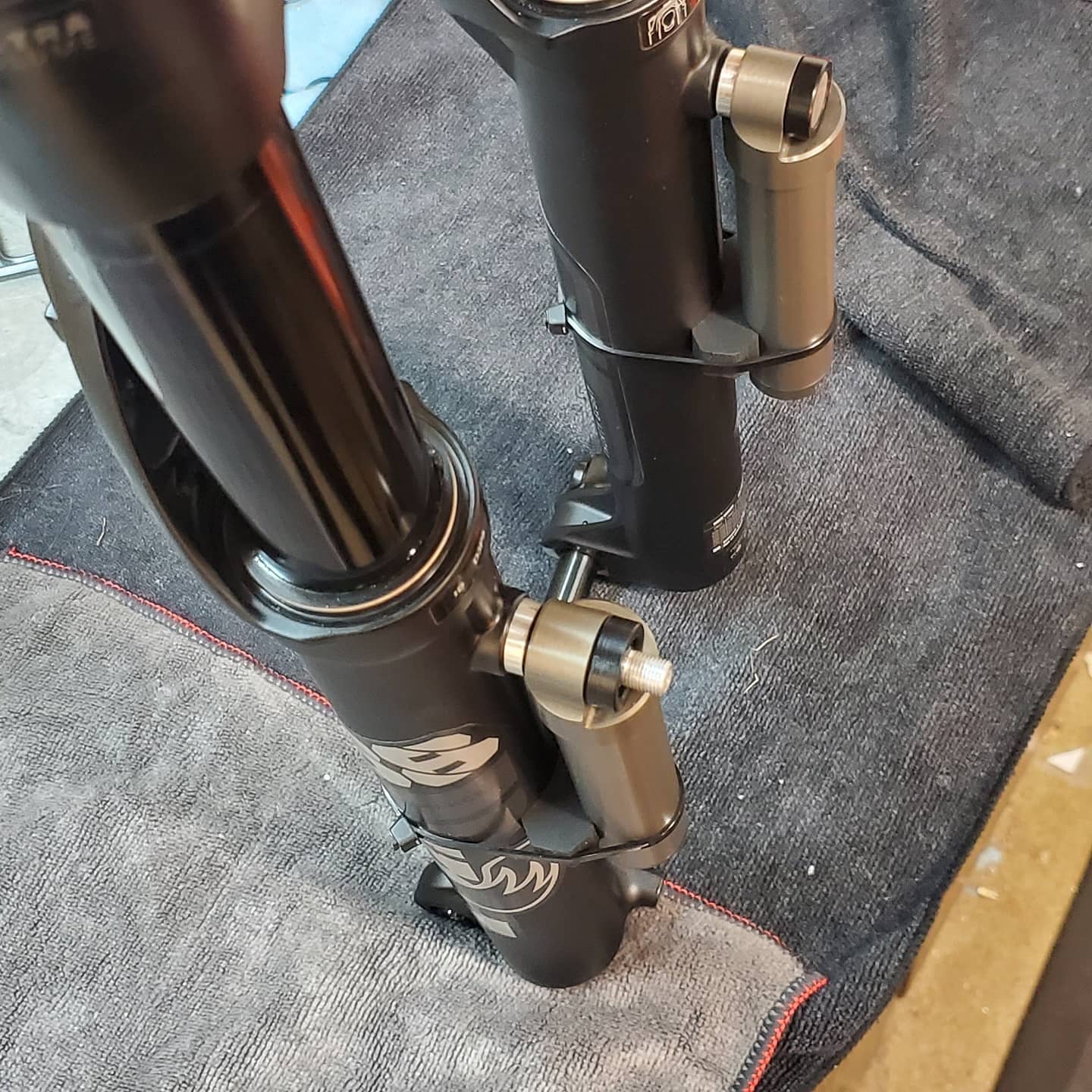

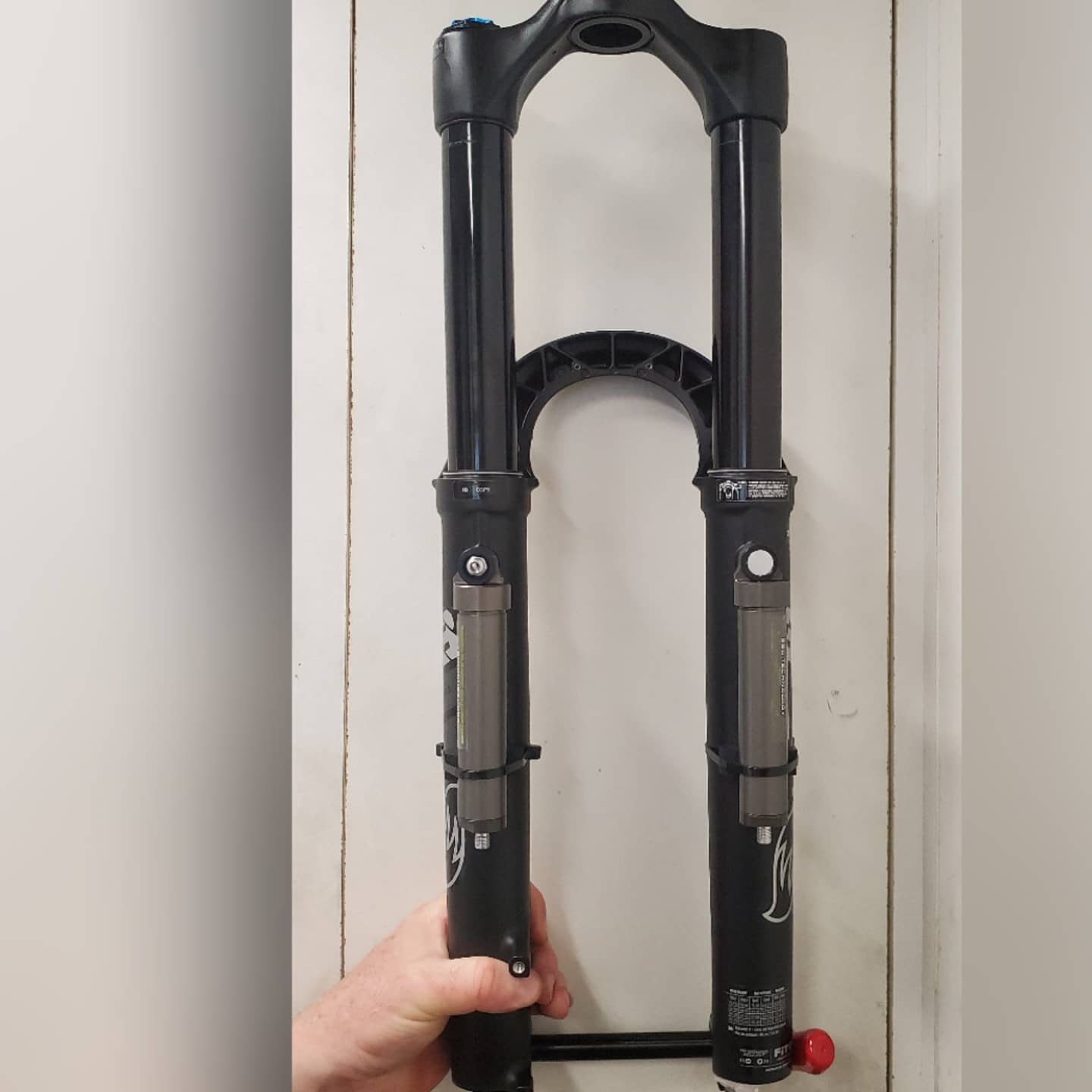

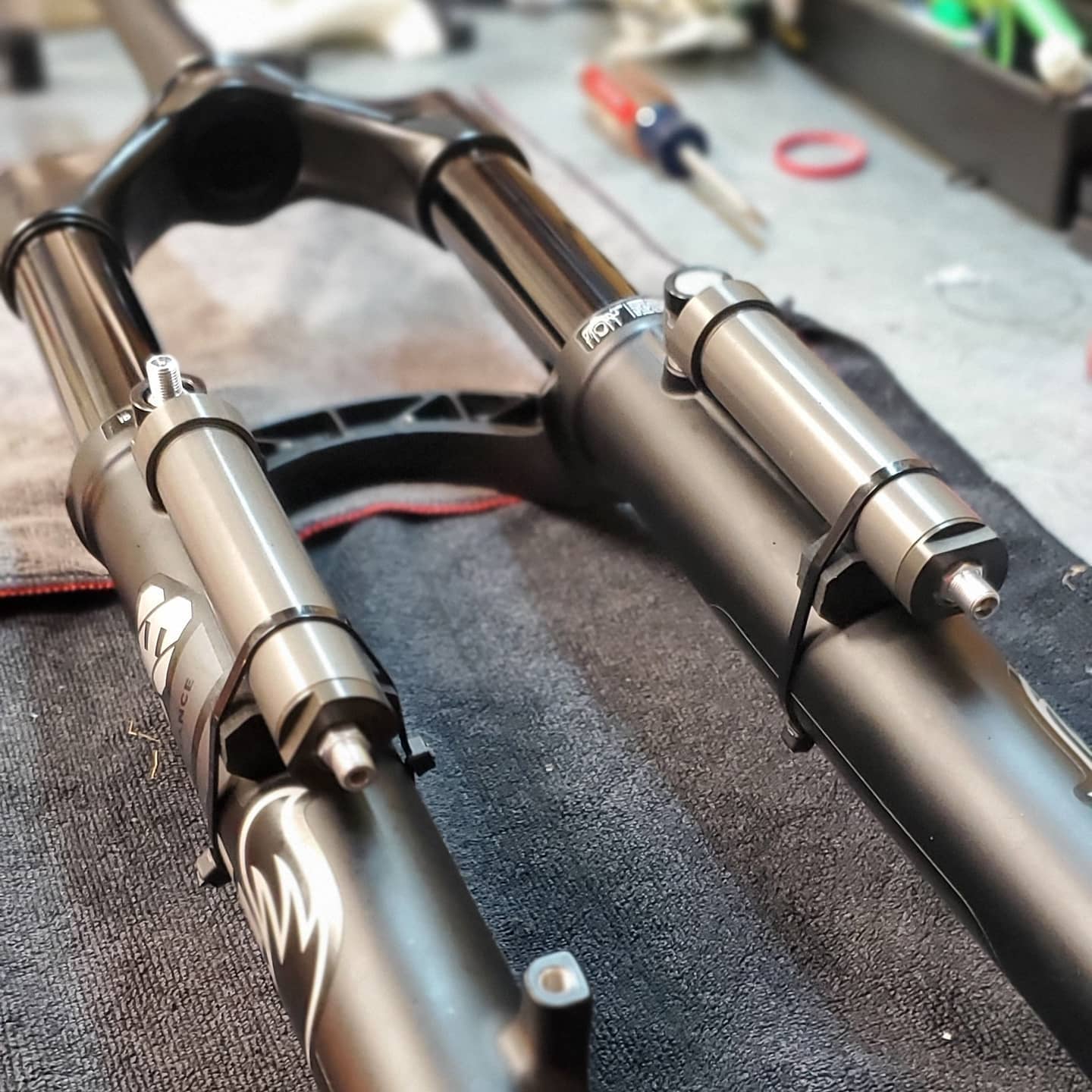

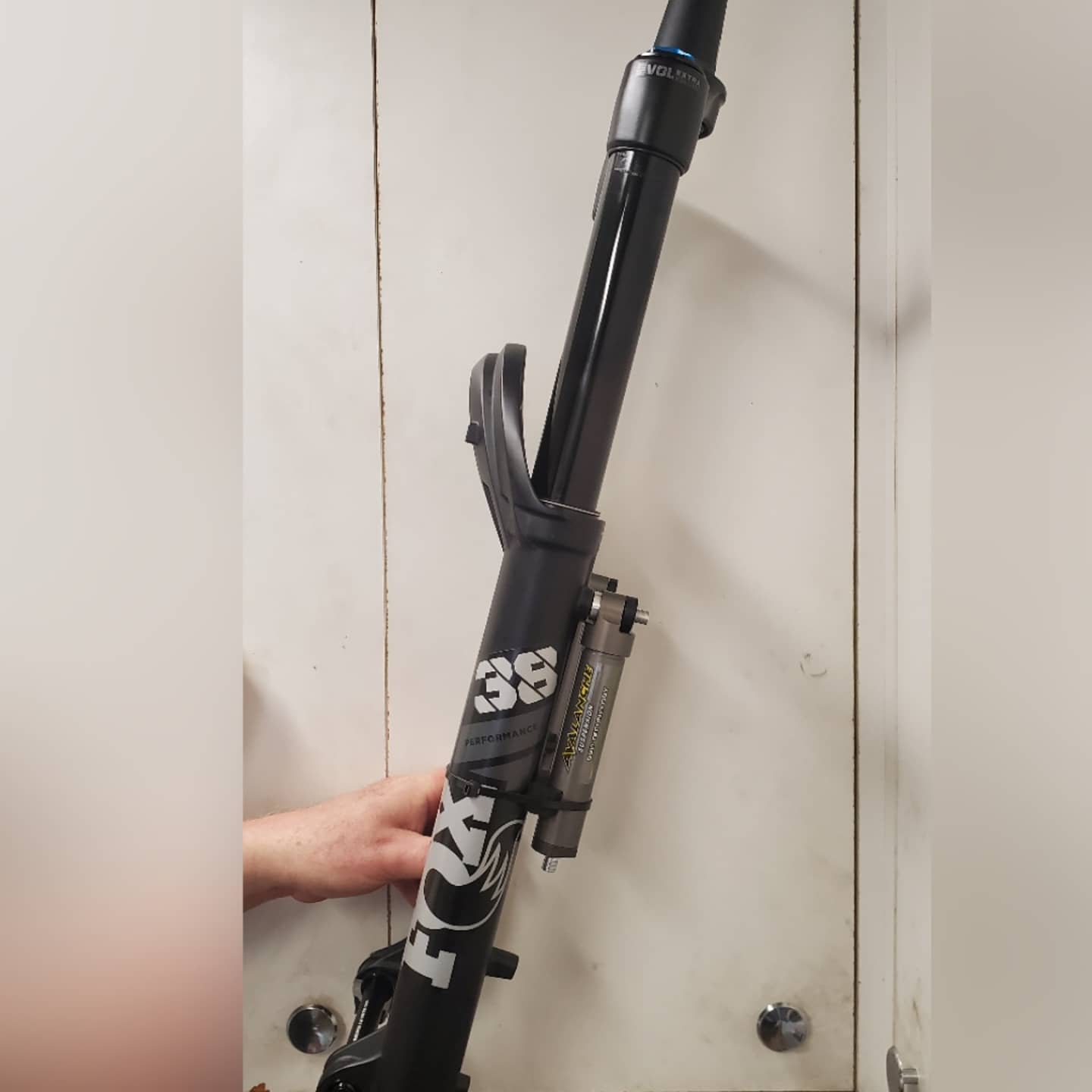

Mounts to the air bleeder hole and is clamped to the back of the lowers. Easy installation and adjustable with you air pump.
Provides external adjustment of air ramp up from progressive to more linear.
The secondary adjustment reduces pull down effect of the negative spring to increase ride height and provide more effective travel and also serves as air bleeder to release pressure build up in lowers.
Allows removal of tokens to provide a larger positive air chamber for a longer linear range of travel with a smoother external adjustable progression to resist bottoming.
Only one required for the stock damper.

Hydraulic RAMP System
RAMP (Remote Adjustable Modulated Progression)
Provides external adjustment of the effective oil height in our Open bath cartridge system.
Compatible option for our open bath damper system with all Fox forks with bleeder valves in lowers. Models include all 2021 models of the Fox 36, 38 and 40’s.
Mounts to the air bleeder hole and is clamped to the back of the damper side lowers. Easy installation and adjustable with you air pump
External adjustment of the air over oil ramp rate for added progression or a more linear feel.
Increased oil volume above cartridge to reduce aeration which improves damper performance.
The open bath cartridge allows for both sides to create ramp up, so two units can be installed.

Call for more info and to place order.
