All data is our best estimate based on the information provided online

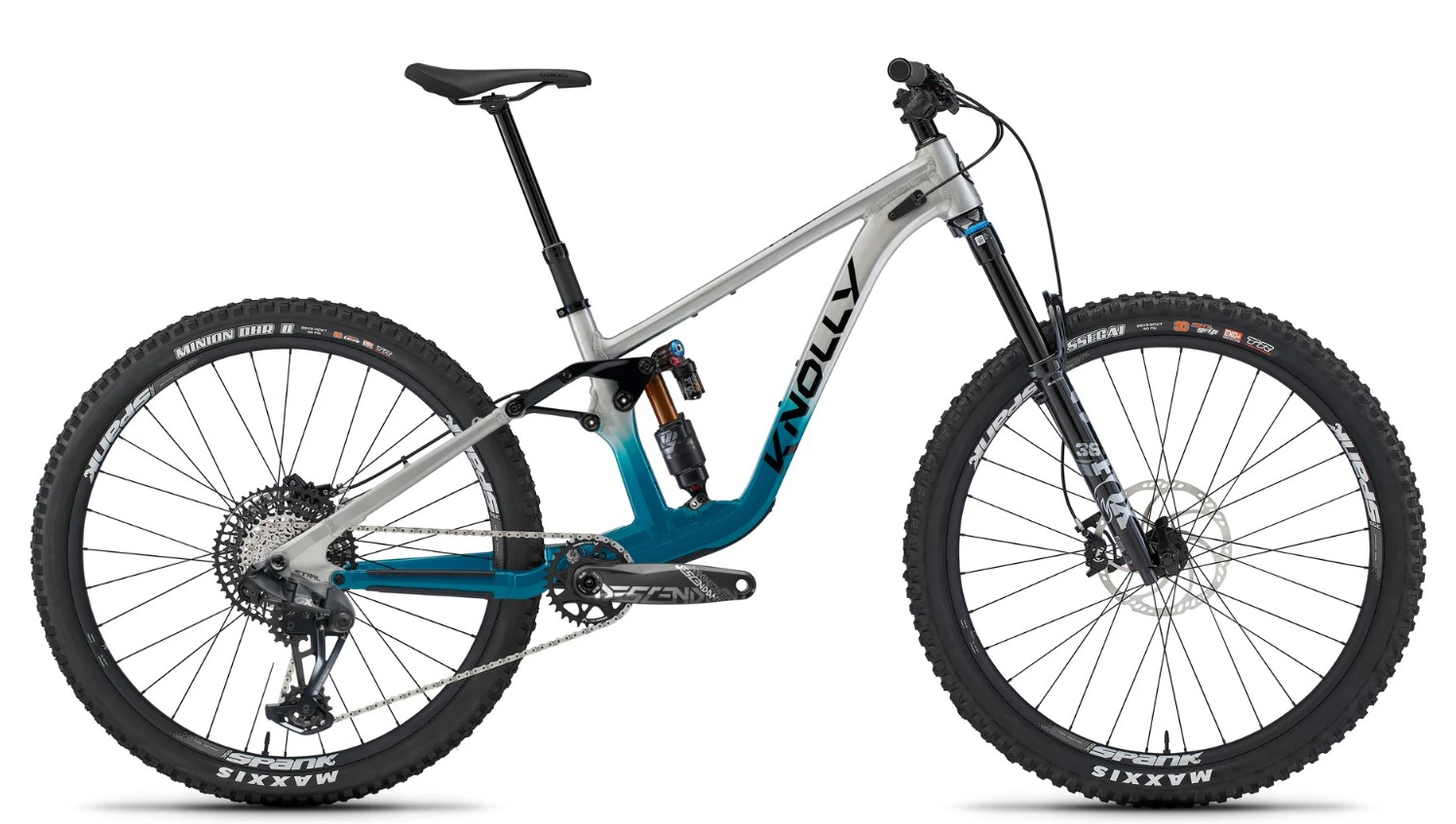

2024 KNOLLY Chilcotin 155
| MODEL VERSION YEARS | 2024- |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 34 |
| SHOCK SIZE | 205 x 60,T |
| TRAVEL MM | 155 |
| UPPER REDUCER | Trunnion x 10.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | FOUR x FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.58 |
| STARTING LEVERAGE | 3.1 |
| SAG POINT LEVERAGE | 2.76 |
| ENDING LEVERAGE | 2.48 |
| PROGRESSION % | 20.0 |
| LEVERAGE CURVE | PR
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PR |
| OEM SHOCK | FOX FLOAT X2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 64.75 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | BOMBER Z1 |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | high low setting, 64.25/64.75, 2.44 @ 135 mm |
| COMMENTS | Same Frame as 170 with 60 mm stroke |
