Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

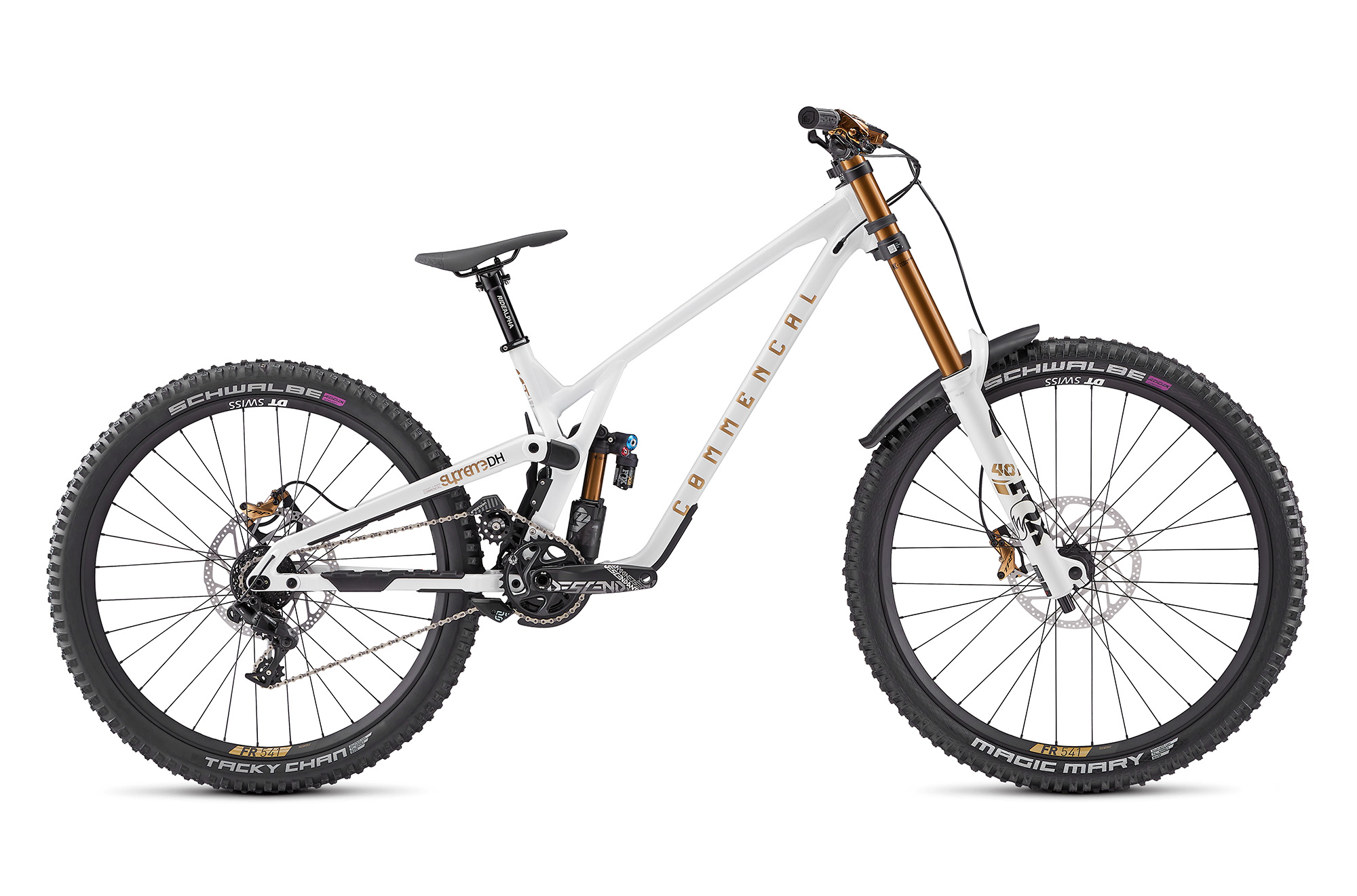

2023 COMMENCAL Supreme DH V5
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 or 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 39 |
| SHOCK SIZE | 250 x 75 |
| TRAVEL MM | 220 |
| UPPER REDUCER | 30.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | Six BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.93 |
| STARTING LEVERAGE | 3.6 |
| SAG POINT LEVERAGE | 3.35 |
| ENDING LEVERAGE | 2.25 |
| PROGRESSION % | 37.5 |
| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views
|
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | AVALANCHE WOODIE(std top Eye only) |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 63.7 |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | FOX 40 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,40,45, |
| COMMENTS | Best guess leverage, high single pivot, but with rocker linkage and with idler gear, chain stay length changes to reduce progression, Flip chip, Two position leverage front, 2 position high/low BB height, AHTA 63.2 |

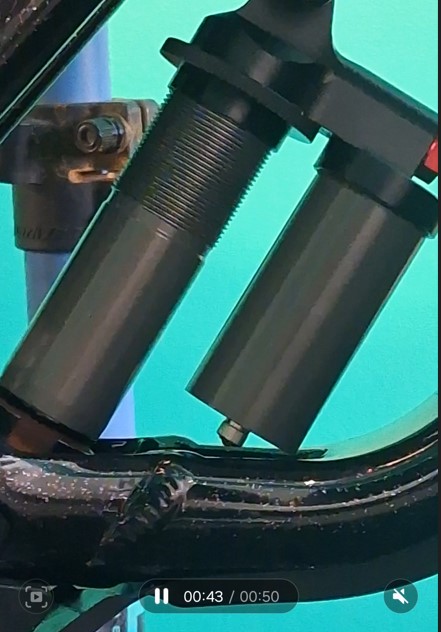

| COMMENTS | Woodie reservoir hits with 3/8 top eye |
