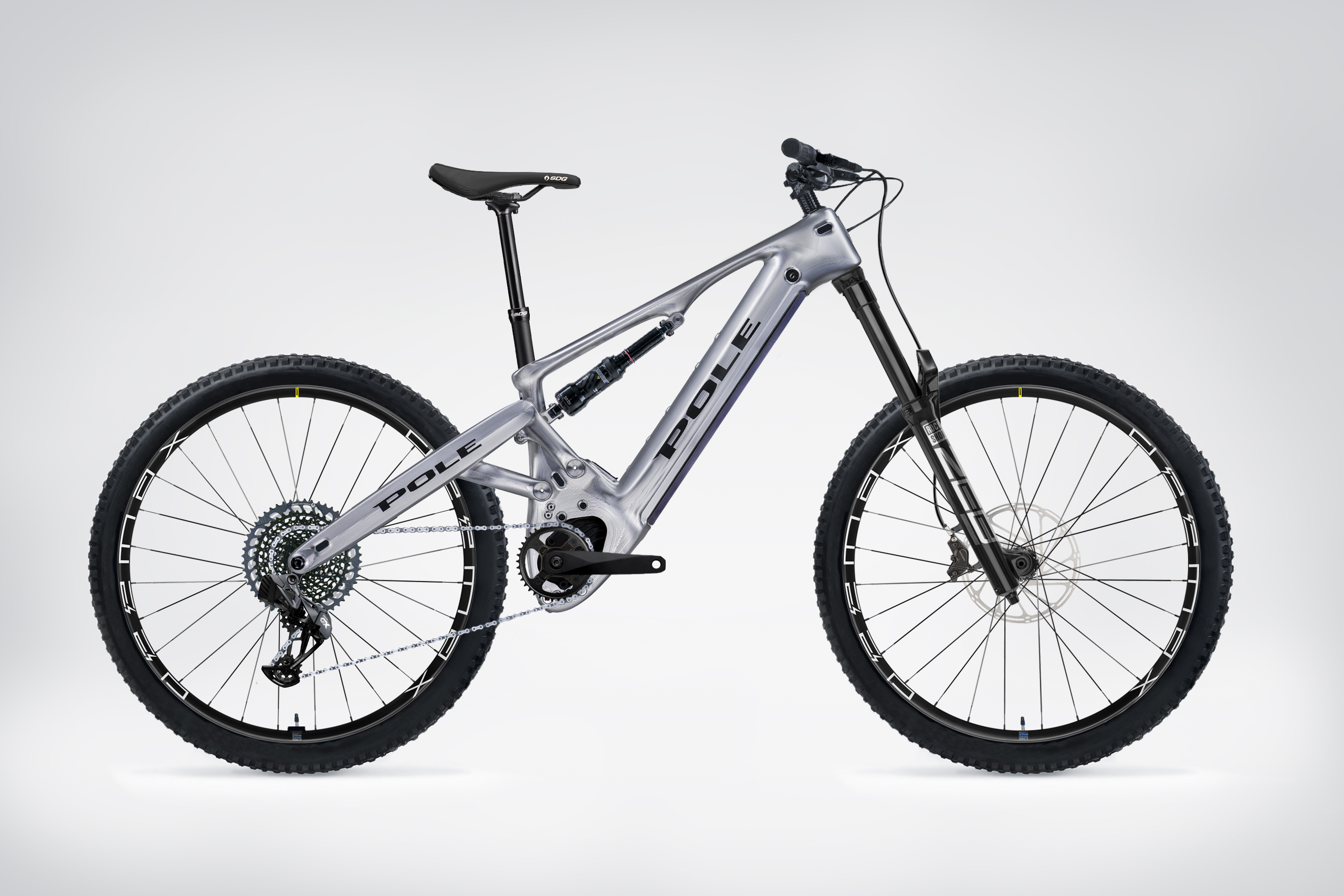

2022 POLE Voima
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 55 |
| SHOCK SIZE | 250 x 75 |
| TRAVEL MM | 190 |
| UPPER REDUCER | 15.0 x 8.0 |
| LOWER REDUCER | 15.0 x 8.0 |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.53 |
| STARTING LEVERAGE | 3.03 |
| SAG POINT LEVERAGE | 2.7 |
| ENDING LEVERAGE | 2.3 |
| PROGRESSION % | 24.1 |

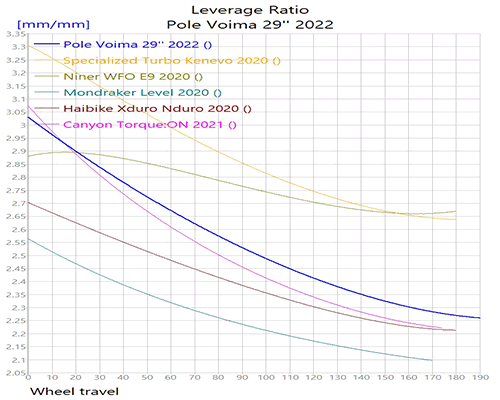

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | ROCKSHOX COIL SUPER DELUXE |
| OEM SHOCK | Cane Creek Kitsuma |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,350,400,450,500,500, |
| HEAD TUBE ANGLE | 63.5 |
| RECOMMENDED FORK TRAVEL | 190 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,45,50,55, |
| COMMENTS | Shock is yoke mount,190-200 mm fork travel |
| COMMENTS |
