Bike Build Specs

CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help

LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD

All data is our best estimate based on the information provided online

2022 SPECIALIZED Turbo Levo Cascade

MODEL VERSION YEARS 2022-
TIRE SIZE 29 Front 27.5 Rear
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 50
SHOCK SIZE 210 x 55
TRAVEL MM 160
UPPER REDUCER 20.0 x 8.0
LOWER REDUCER 13.90 x 12.7
LINKAGE YOKE HORST LINK (PROGRESSIVE)
AVERAGE LEVERAGE 2.91
STARTING LEVERAGE 3.51
SAG POINT LEVERAGE 3.12
ENDING LEVERAGE 2.53
PROGRESSION % 27.9

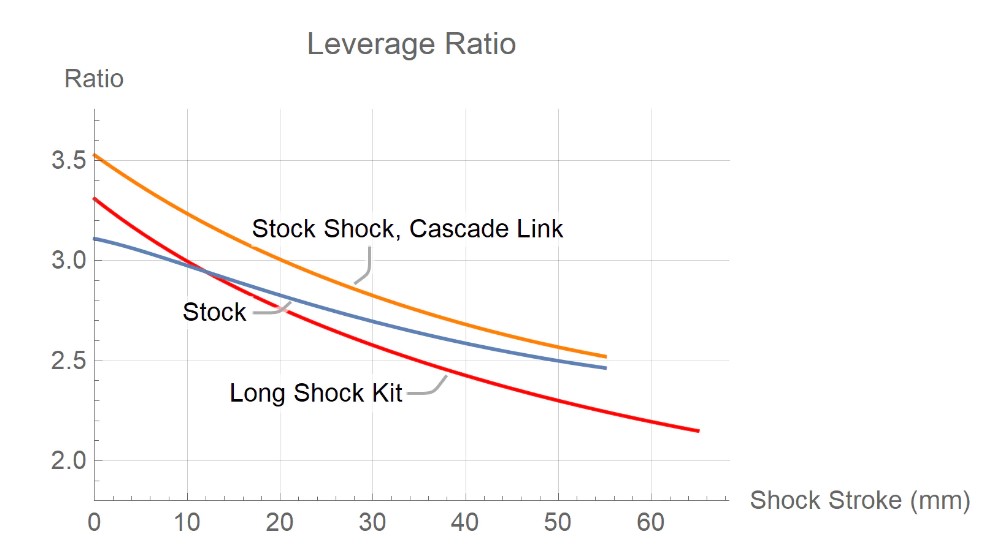

LEVERAGE CURVE HPL

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE HPL
OEM SHOCK DELUXE R DEBON AIR
OEM SHOCK FOX FLOAT X
OEM SHOCK FOX FLOAT X2
UPGRADE OPTION BOMBER CR

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 500,550,600,700,750,800,
HEAD TUBE ANGLE 64.5
RECOMMENDED FORK TRAVEL 160
OEM FORK FOX 38 FLOAT ROCKSHOX ZEB
UPGRADE OPTION CARTRIDGE/SPRING FOX 38 HYBRID
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX ZEB HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 40,45,50,55,60,65,
COMMENTS Needs chrome steel shaft upgrade, Maximum rider weight 240 lbs
COMMENTS Horst Pivot Flip chip, no flip chip in shock eyelet, 1/2 inch flanged reducers, send 1/2 x 1/2 DU
