All data is our best estimate based on the information provided online
2022 ORBEA Occam M30 LT
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 31.2 |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 150 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | YOKE FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.73 |
| STARTING LEVERAGE | 3.14 |
| SAG POINT LEVERAGE | 2.86 |
| ENDING LEVERAGE | 2.56 |
| PROGRESSION % | 18.5 |

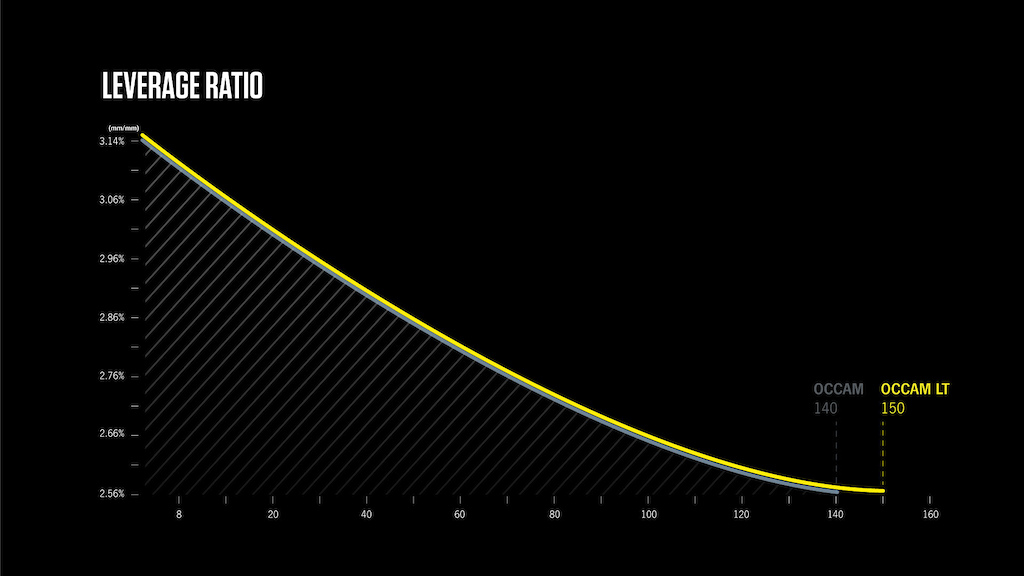

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PBLE |
| OEM SHOCK | FOX FLOAT X |
| OEM SHOCK | FOX DHX |
| OEM SHOCK | FOX FLOAT DPS |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 400,500,550,600,650,700, |
| HEAD TUBE ANGLE | 65.5 |
| RECOMMENDED FORK TRAVEL | 140 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | sm 66 HTA, yoke mount short extension, alloy available |
| COMMENTS |
