Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

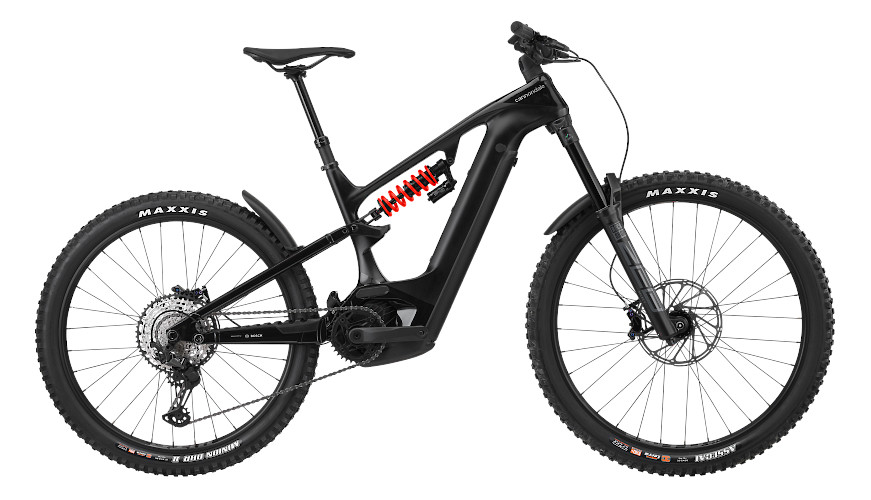

2022 CANNONDALE Moterra Neo Carbon LT
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | |
| SHOCK SIZE | 230 x 65 |
| TRAVEL MM | 165 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | YOKE FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.54 |
| STARTING LEVERAGE | 2.9 |
| SAG POINT LEVERAGE | 2.74 |
| ENDING LEVERAGE | 2.24 |
| PROGRESSION % | 22.8 |

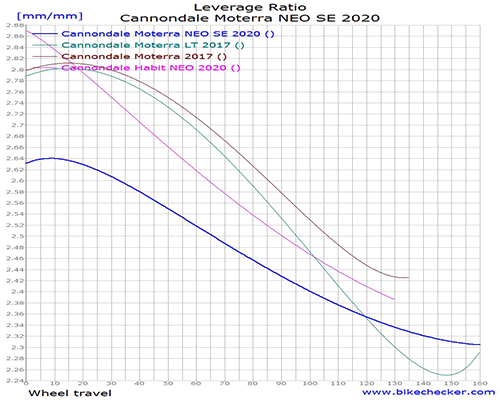

| LEVERAGE CURVE | LP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE LP |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| OEM SHOCK | ROCKSHOX DELUXE |
| UPGRADE OPTION | FOX FLOAT X |
| UPGRADE OPTION | FOX FLOAT DPS |
| UPGRADE OPTION | FOX FLOAT DPX2 |
| SUGGESTED SHOCK SPRING | 250,300,350,400,450,500, |
| HEAD TUBE ANGLE | 64 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 38 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 25,30,35,40,45,50, |
| COMMENTS | Best estimate for leverage, 18% progression from Bike radar |
| COMMENTS |
