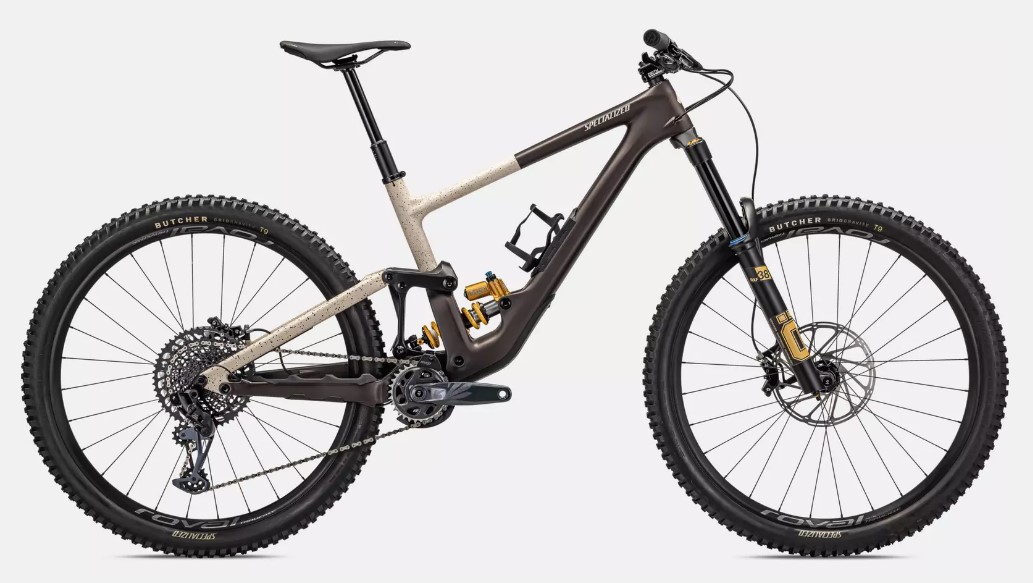

2022 SPECIALIZED Enduro S-Works
| MODEL VERSION YEARS | 2021- |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 205 x 60,T |
| TRAVEL MM | 170 |
| UPPER REDUCER | Trunnion x 10.0 |
| LOWER REDUCER | flip chip |
| LINKAGE | LINKAGE DRIVEN FOUR BAR |
| AVERAGE LEVERAGE | 2.83 |
| STARTING LEVERAGE | 3.32 |
| SAG POINT LEVERAGE | 3.05 |
| ENDING LEVERAGE | 2.4 |
| PROGRESSION % | 27.7 |

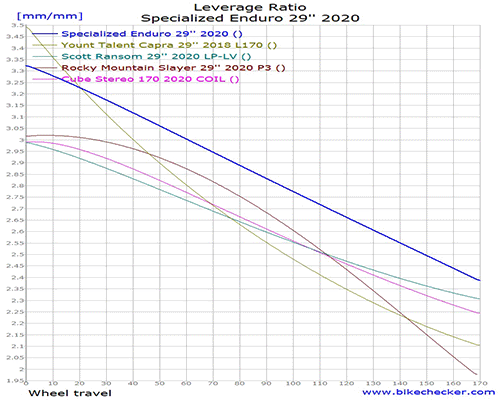

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views
|
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | Ohlins TTX 22 |
| OEM SHOCK | FOX FLOAT X2 |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 63.9 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | ROCKSHOX ZEB |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,40,45,50,55, |
| COMMENTS | Remove 10 mm from reservoir to clear seat tunnel. Max travel 64 mm stroke. |
| COMMENTS | flip chip 3.33-2.35, 28,5% |
