All data is our best estimate based on the information provided online
2021 PIVOT Switchblade
| MODEL VERSION YEARS | 2020-2023 |
|---|---|
| TIRE SIZE | 27.5 or 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 29.2 |
| SHOCK SIZE | 185 x 55,T |
| TRAVEL MM | 142 |
| UPPER REDUCER | Trunnion x 10.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.58 |
| STARTING LEVERAGE | 3.1 |
| SAG POINT LEVERAGE | 2.67 |
| ENDING LEVERAGE | 2.28 |
| PROGRESSION % | 26.5 |

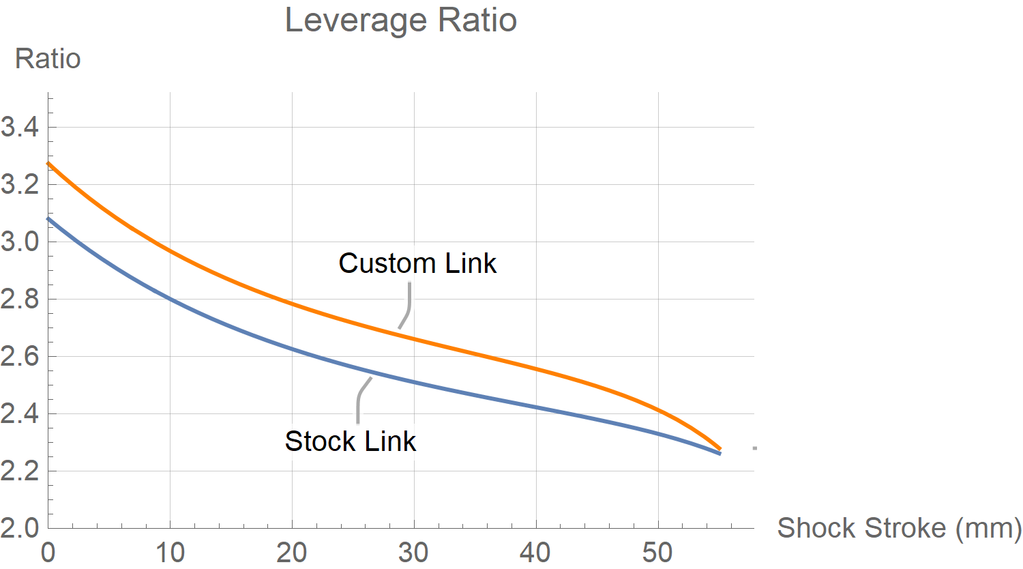

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX FLOAT DPX2 |
| OEM SHOCK | FOX FLOAT X |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 66.5 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | FOX 36 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | V2, tight area for Bombercr reservoir remove 10-15 mm from reservoir |
| COMMENTS | coil capaitible, flip chip in upper link for BB or Tire size adjustments |
