Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

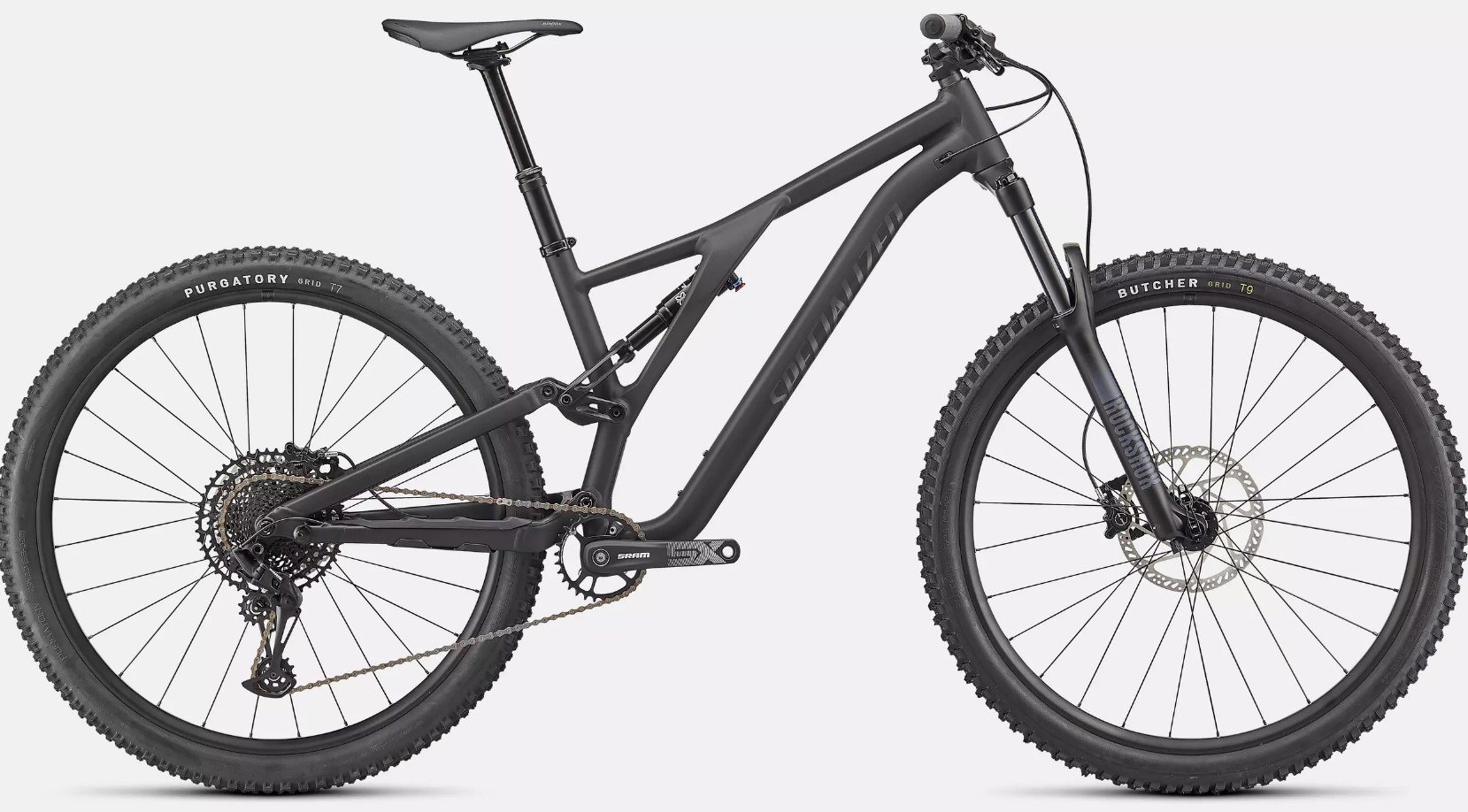

2021 SPECIALIZED Stumpjumper Alloy Cc
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 190 x 45 |
| TRAVEL MM | 138 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | YOKE HORST LINK (PROGRESSIVE) |
| AVERAGE LEVERAGE | 3.07 |
| STARTING LEVERAGE | 3.43 |
| SAG POINT LEVERAGE | 3.09 |
| ENDING LEVERAGE | 2.62 |
| PROGRESSION % | 23.6 |

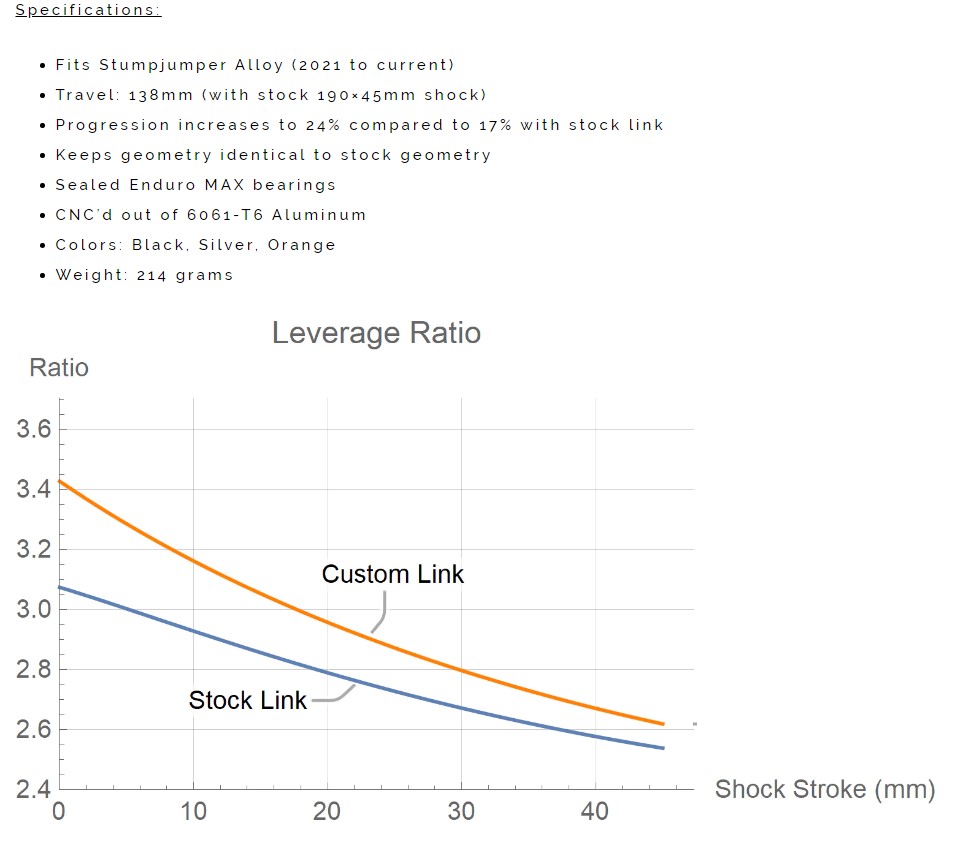

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | 4-BAR HPL |
| OEM SHOCK | FOX FLOAT DPS |
| UPGRADE OPTION | FOX FLOAT X |
| UPGRADE OPTION | BOMBER CR Custom |
| SUGGESTED SHOCK SPRING | 600,650,750,800,900,950, |
| HEAD TUBE ANGLE | 65.5 |
| RECOMMENDED FORK TRAVEL | 140 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | Cascade Components Link, Alloy (non Evo), optional HTA 65.0 Low BB |
| COMMENTS | Limited to riders under 210 lbs(800 lb/350 psi) |
