Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

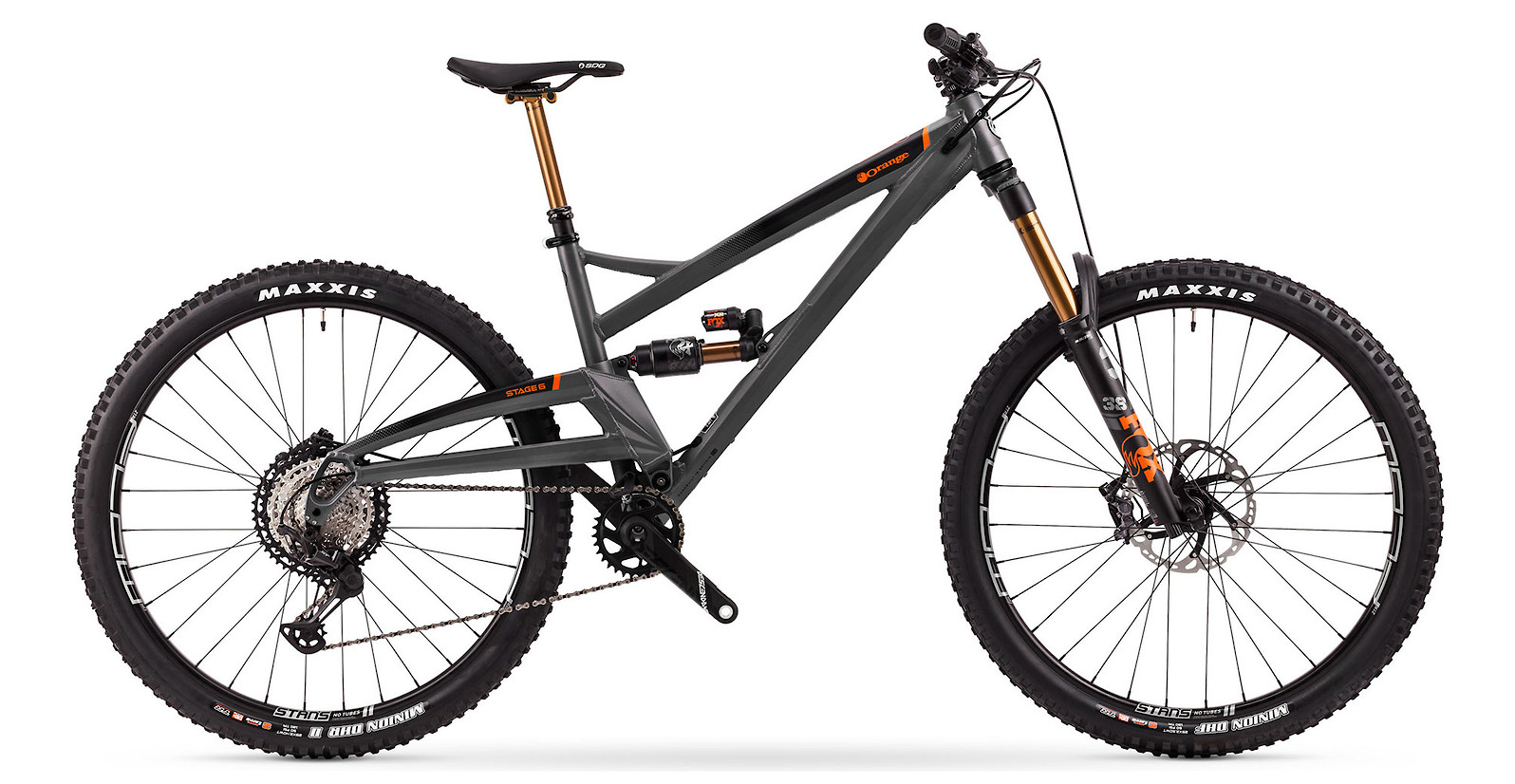

2021 ORANGE Stage 6 29er
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 150 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | SINGLE PIVOT (LINEAR) |
| AVERAGE LEVERAGE | 2.73 |
| STARTING LEVERAGE | 2.74 |
| SAG POINT LEVERAGE | 2.73 |
| ENDING LEVERAGE | 2.72 |
| PROGRESSION % | 0.7 |
| LEVERAGE CURVE | LL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | LINEAR LL |
| OEM SHOCK | FOX FLOAT X2 |
| UPGRADE OPTION | FOX FLOAT DPX2 |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 64 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | Limited aggression, no big jumps to flat with a coil shock. |
| COMMENTS |
