Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

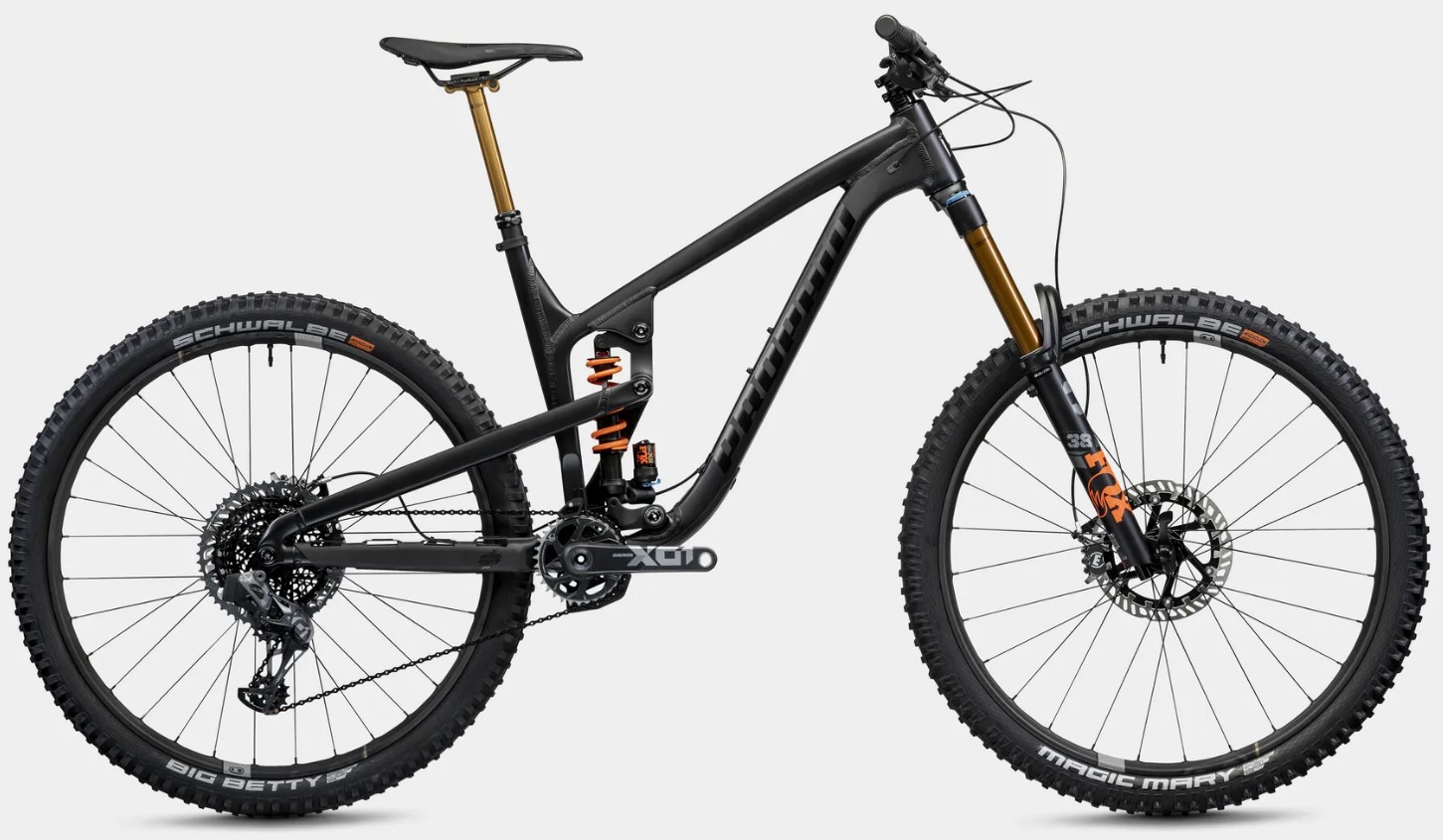

2021 PROPAIN Spindrift Al
| MODEL VERSION YEARS | 2021-2024 |
|---|---|
| TIRE SIZE | 27.5 or 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 34 |
| SHOCK SIZE | 230 x 65 |
| TRAVEL MM | 180 |
| UPPER REDUCER | 20.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.77 |
| STARTING LEVERAGE | 3.08 |
| SAG POINT LEVERAGE | 2.95 |
| ENDING LEVERAGE | 2.2 |
| PROGRESSION % | 28.6 |

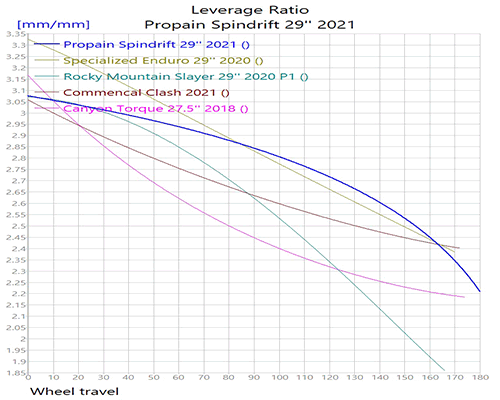

| LEVERAGE CURVE | PE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PE |
| OEM SHOCK | FOX DHX2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 180 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,45,45, |
| COMMENTS | 2021-22, 190 mm option for fork travel, mix wheel sizes |
| COMMENTS |
