Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

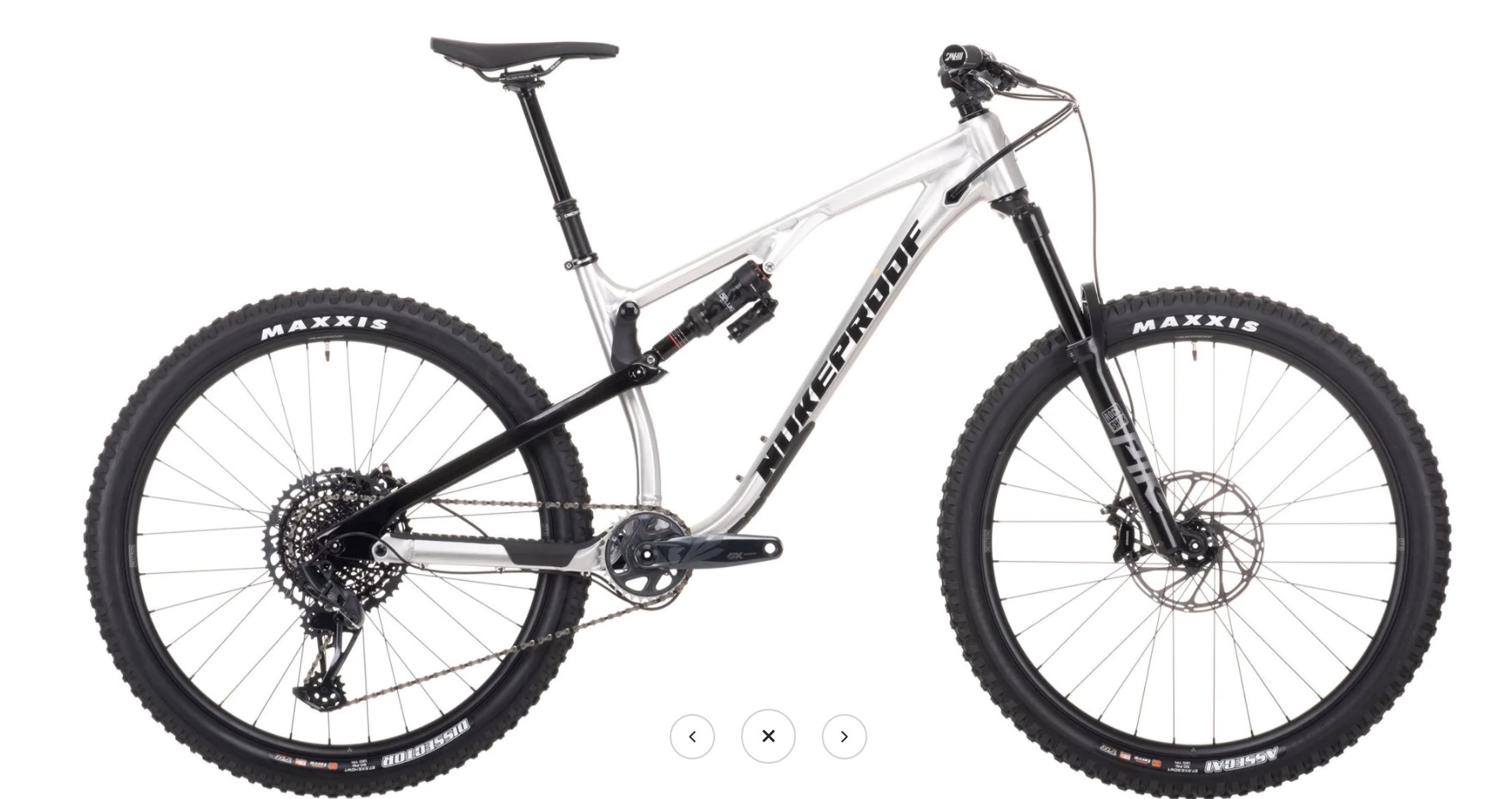

2021 NUKEPROOF Reactor 275
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 140 |
| UPPER REDUCER | 25.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |

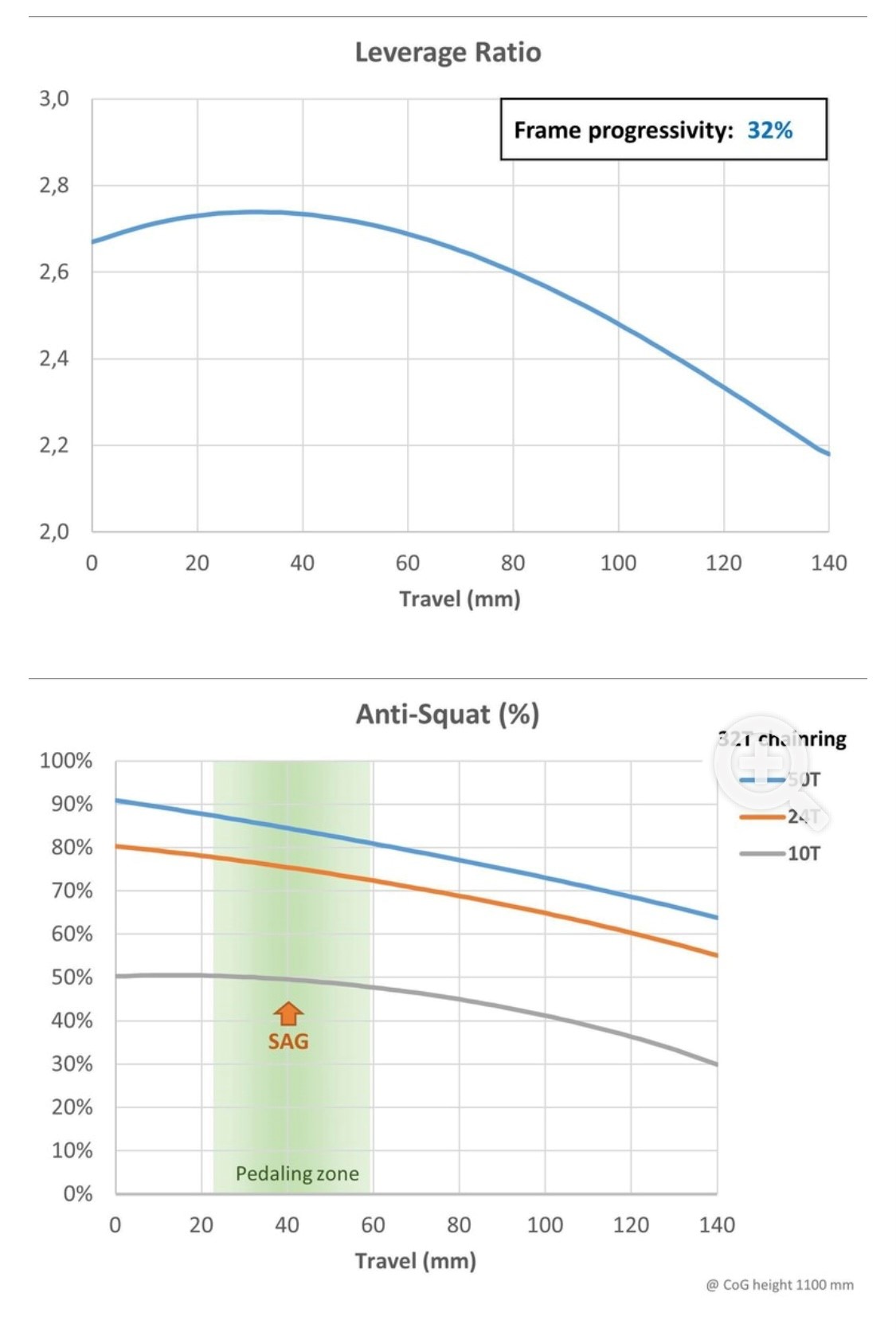

| AVERAGE LEVERAGE | 2.55 |
| STARTING LEVERAGE | 2.68 |
| SAG POINT LEVERAGE | 2.73 |
| ENDING LEVERAGE | 2.18 |
| PROGRESSION % | 18.66 |

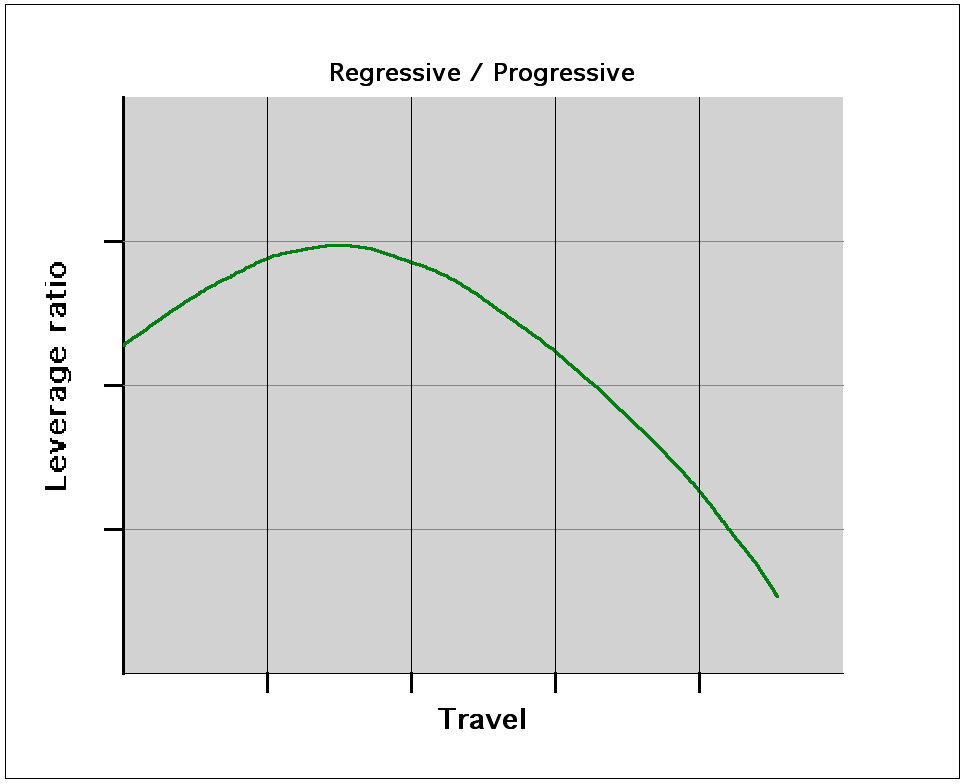

| LEVERAGE CURVE | RP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | REGRESSIVE/PROGRESSIVE RP |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 66.0 |
| RECOMMENDED FORK TRAVEL | 150 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | Progressivity 32%, low hta 65.5 |
| COMMENTS |
