All data is our best estimate based on the information provided online

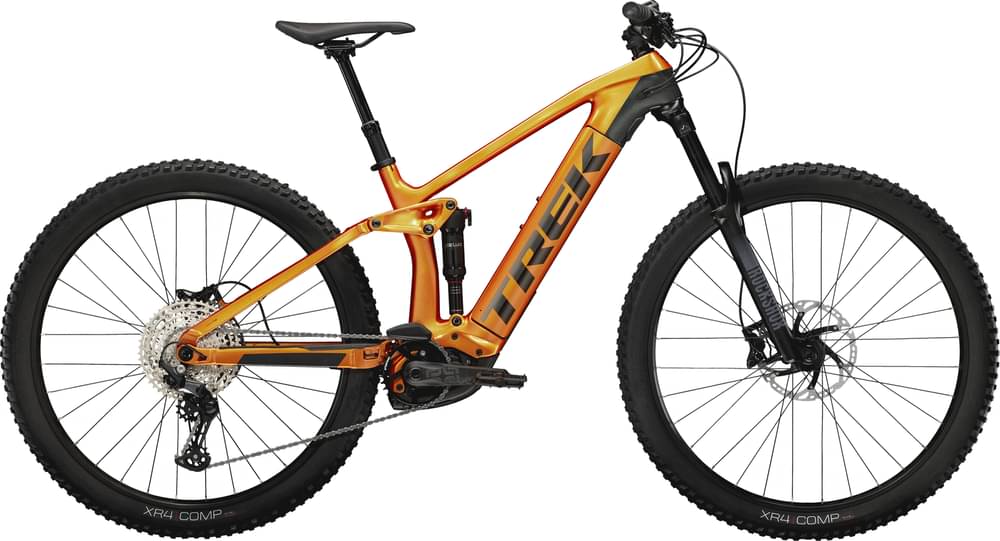

2021 TREK Rail 9.5
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 52.6 |
| SHOCK SIZE | 230 x 57.5 |
| TRAVEL MM | 150 |
| UPPER REDUCER | 54.0 x 10.0 |
| LOWER REDUCER | 40.0 x 10.0 |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.61 |
| STARTING LEVERAGE | 2.9 |
| SAG POINT LEVERAGE | 2.74 |
| ENDING LEVERAGE | 2.4 |
| PROGRESSION % | 17.2 |

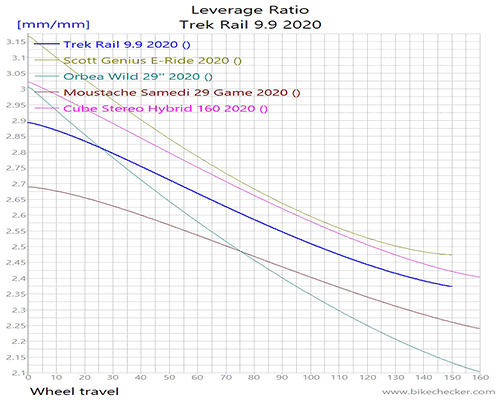

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | ROCKSHOX SUPER DELUXE THRU |
| OEM SHOCK | ROCKSHOX DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 450,500,550,600,650,700, |
| HEAD TUBE ANGLE | 64.9 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 38 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,45,50,55,60, |
| COMMENTS | reservoir needs to be 10 mm shorter., 64.5 HTA low |
| COMMENTS |
