Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

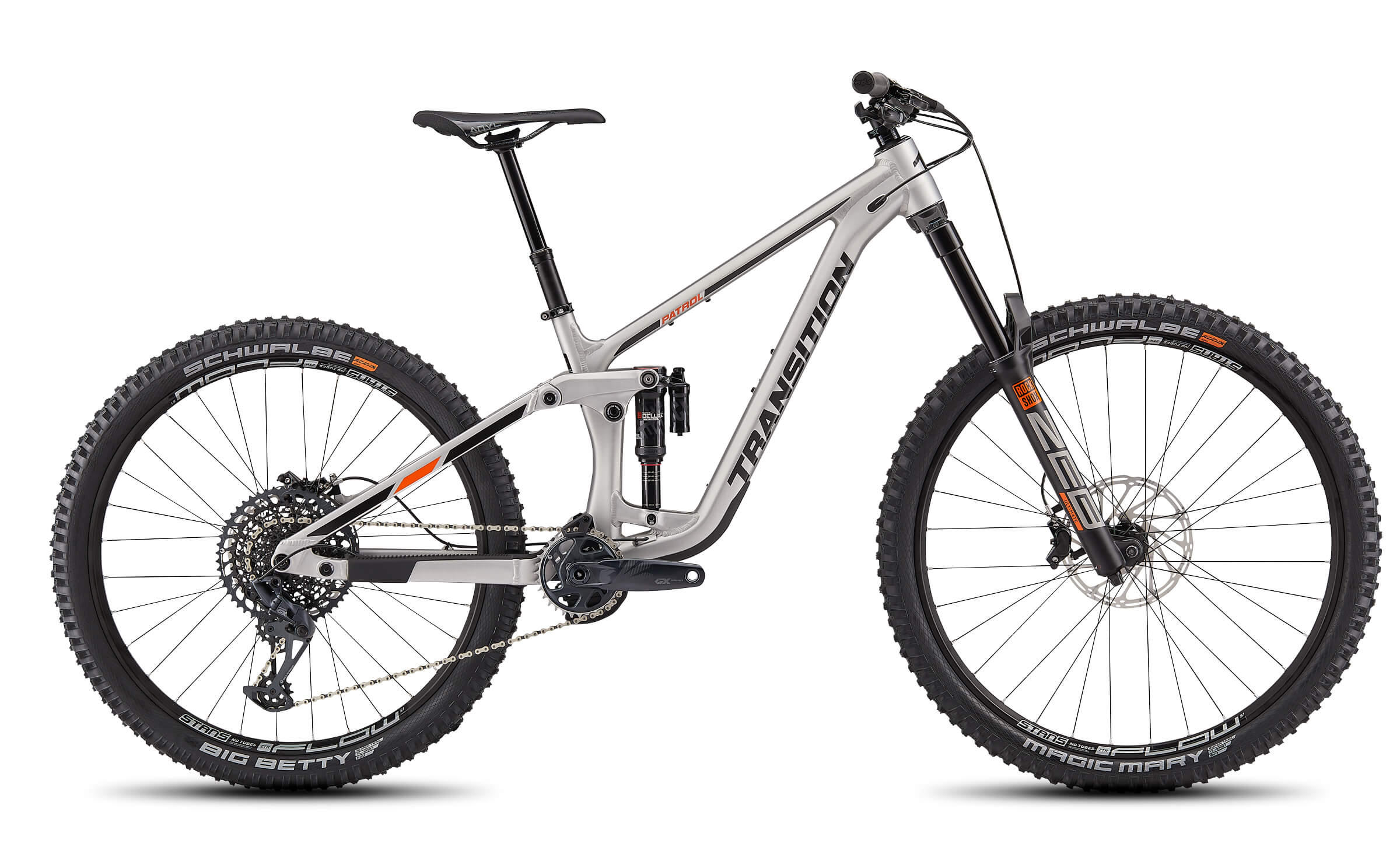

2021 TRANSITION Patrol Alloy V3
| MODEL VERSION YEARS | |
|---|---|
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 205 x 60,T |
| TRAVEL MM | 160 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (SLIGHT PROGRESSION) |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 3.06 |
| SAG POINT LEVERAGE | 2.78 |
| ENDING LEVERAGE | 2.34 |
| PROGRESSION % | 23.53 |
| LEVERAGE CURVE | PL
|
| SHOCK TUNE | 4-BAR PL |
| OEM SHOCK | FOX FLOAT DPX2 |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING (140/160/180/200/220/240 LBS) | 400,450,500,550,600,600, |
| HEAD TUBE ANGLE | 63.5 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| SUGGESTED FORK SPRING WITH OUR CARTRIDGE(140/160/180/200/220/240 LBS) | 35,40,40,45,50,55, |
| COMMENTS | 2021-2022, V3 is more progressive leverage, 24% |
| COMMENTS | decrease travel to 160 with 60 stroke |
