Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

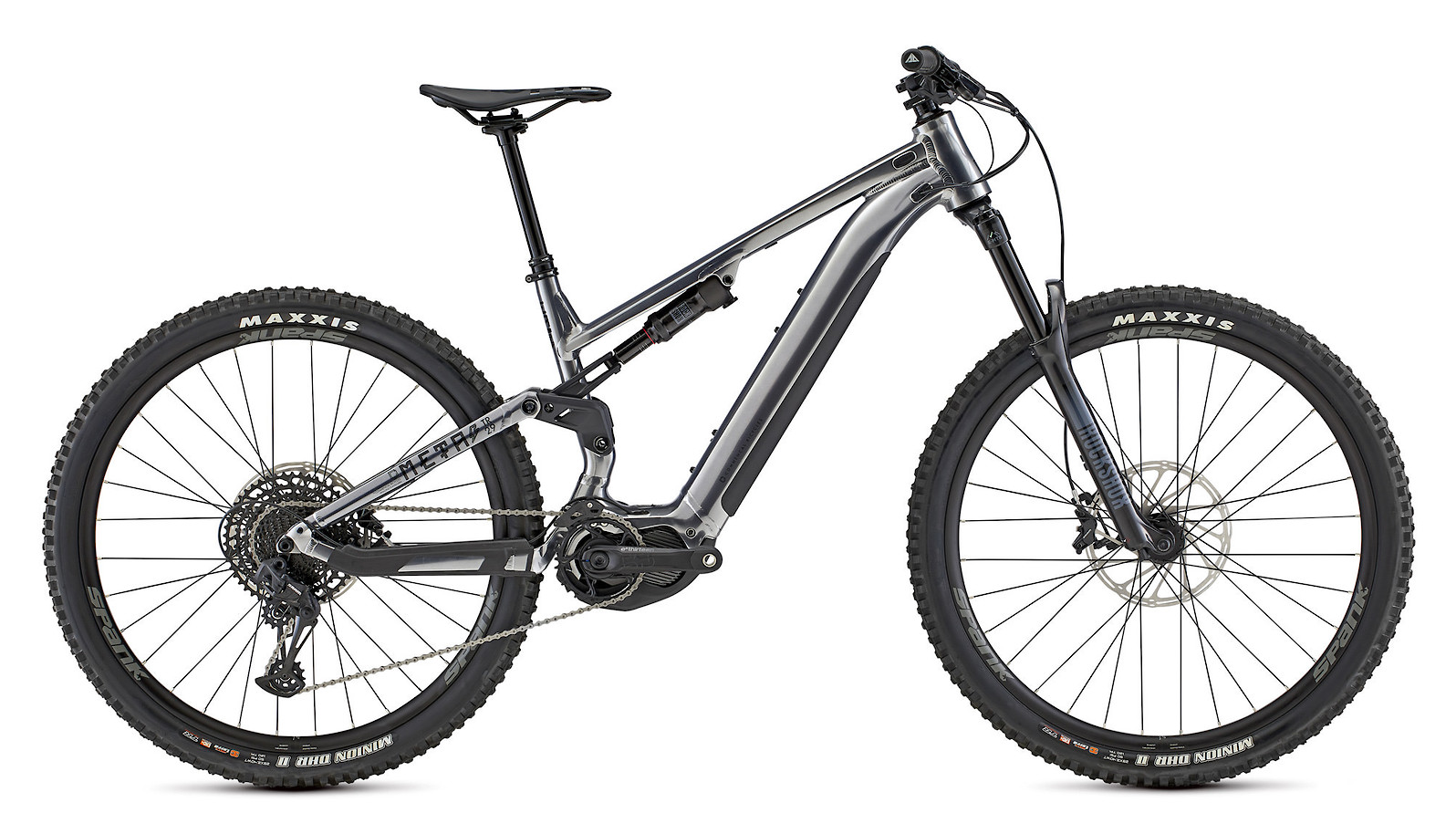

2021 COMMENCAL Meta Power Tr
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 55 |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 140 |
| UPPER REDUCER | 20.0 x 10.0 |
| LOWER REDUCER | 12.7 fitted x 10.0 |
| LINKAGE | Yoke (Progressive) |
| AVERAGE LEVERAGE | 2.55 |
| STARTING LEVERAGE | 2.82 |
| SAG POINT LEVERAGE | 2.62 |
| ENDING LEVERAGE | 2.3 |
| PROGRESSION % | 18.4 |

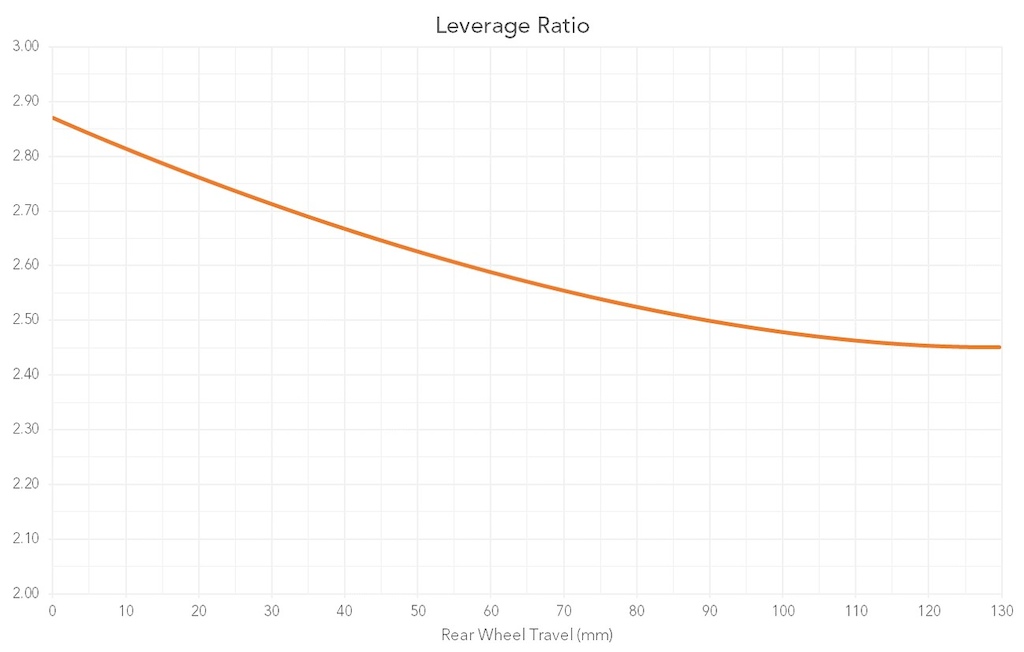

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PBLE |
| OEM SHOCK | FOX DHX2 |
| OEM SHOCK | ROCKSHOX COIL SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 450,500,550,600,650,700, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 150 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 45,50,55,60,65,70, |
| COMMENTS | 2.82-2.3 to 1, 18.4 % |
| COMMENTS |
