All data is our best estimate based on the information provided online

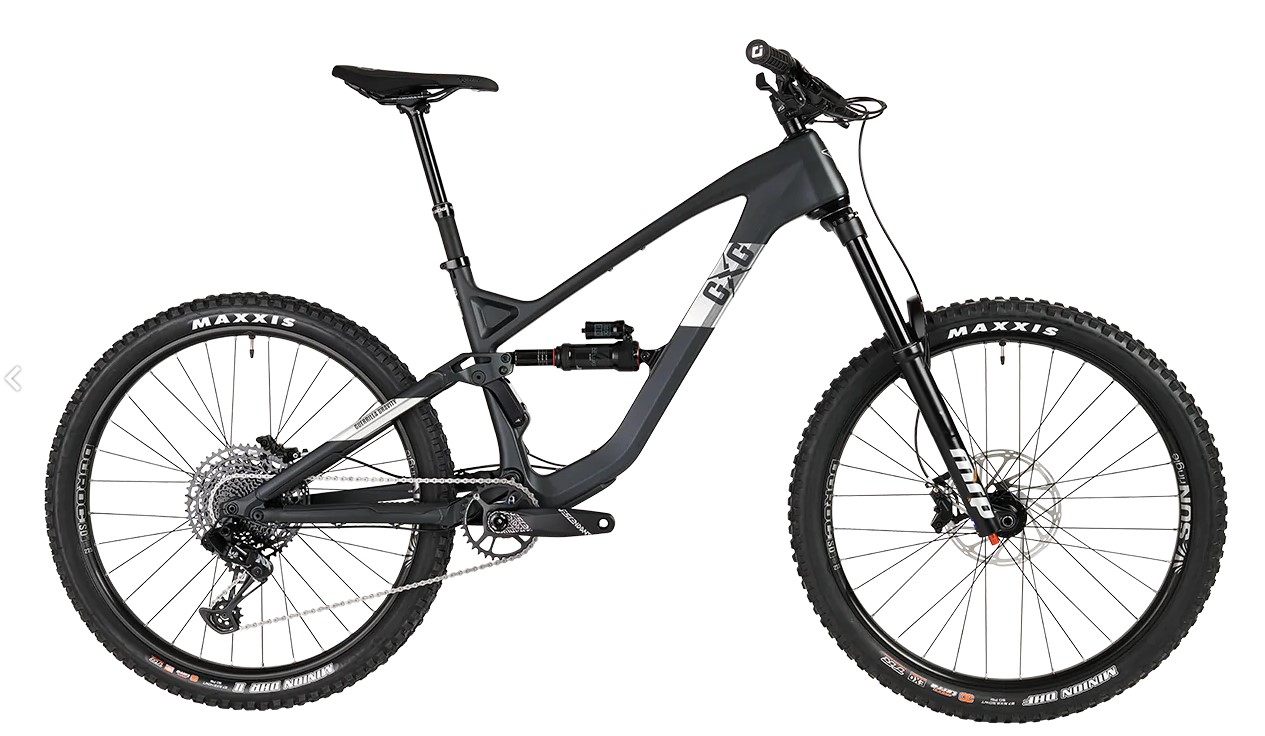

2021 Guerrilla Gravity Megatrail
| MODEL VERSION YEARS | 2019- |
|---|---|
| TIRE SIZE | 29 Front, 29 or 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 230 x 65 |
| TRAVEL MM | 165 |
| UPPER REDUCER | 20.0 x 8.0 |
| LOWER REDUCER | 35.0 x 8.0 |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.54 |
| STARTING LEVERAGE | 2.9 |
| SAG POINT LEVERAGE | 2.58 |
| ENDING LEVERAGE | 2.25 |
| PROGRESSION % | 22.4 |
| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX FLOAT X2 |
| OEM SHOCK | FOX DHX2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | AVALANCHE WOODIE |
| SUGGESTED SHOCK SPRING | 350,400,400,450,500,550, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,40,45,50,55, |
| COMMENTS | trail mode 155, gravity mode 165, 22% Progression, best estimate for leverage |
| COMMENTS | AHTA 64.5/64.0 |
