Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

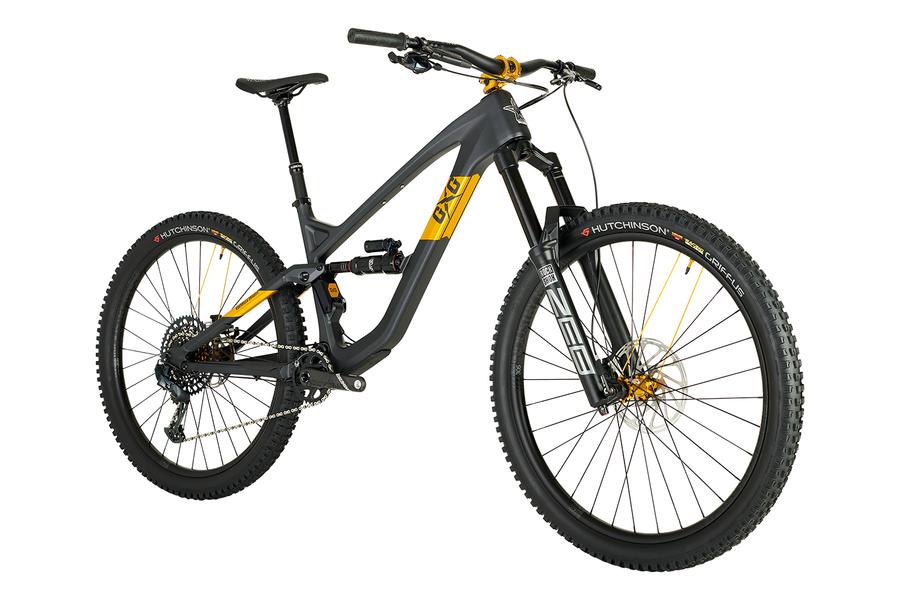

2021 GUERILLA GRAVITY Gnarvana
| MODEL VERSION YEARS | |
|---|---|
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32.8 |
| SHOCK SIZE | 230 x 65 |
| TRAVEL MM | 160 |
| UPPER REDUCER | 20.0 x 8.0 |
| LOWER REDUCER | 35.0 x 8.0 |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.46 |
| STARTING LEVERAGE | 2.91 |
| SAG POINT LEVERAGE | 2.66 |
| ENDING LEVERAGE | 2.3 |
| PROGRESSION % | 21.0 |

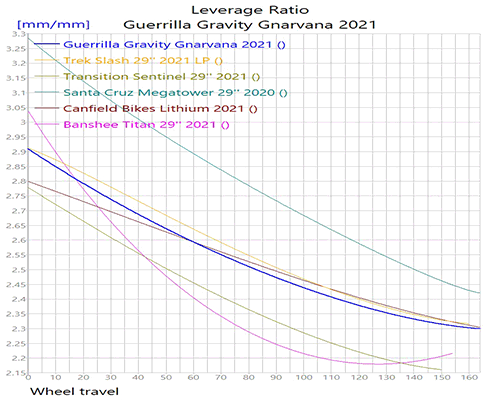

| LEVERAGE CURVE | LP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE LP |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | AVALANCHE WOODIE |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING (140/160/180/200/220/240 LBS) | 300,350,400,450,500,550, |
| HEAD TUBE ANGLE | 63.7 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | ROCKSHOX ZEB |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
| SUGGESTED FORK SPRING WITH OUR CARTRIDGE(140/160/180/200/220/240 LBS) | 35,40,45,45,50,55, |
| COMMENTS | plush position, 2.41 average leverage |
| COMMENTS |
