All data is our best estimate based on the information provided online

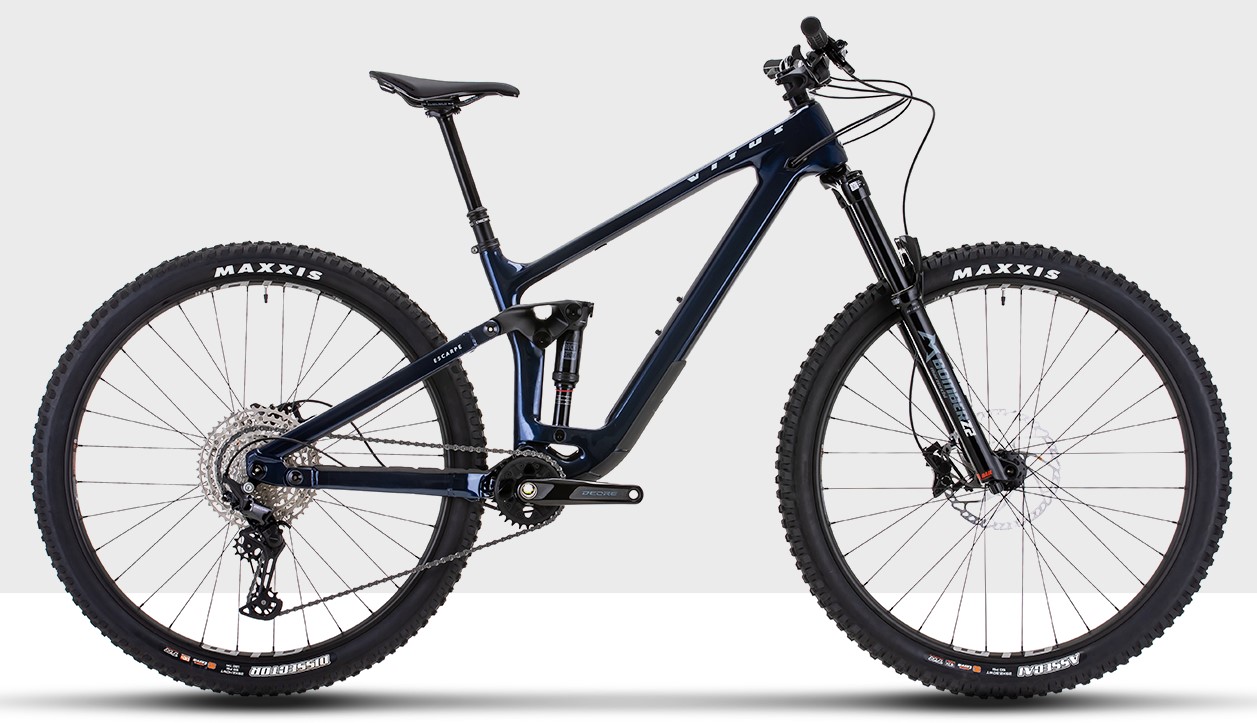

2021 VITUS Escarpe 29 CR
| MODEL VERSION YEARS | 2021 |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 33.2 |
| SHOCK SIZE | 205 x 60,T |
| TRAVEL MM | 140 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.33 |
| STARTING LEVERAGE | 2.75 |
| SAG POINT LEVERAGE | 2.54 |
| ENDING LEVERAGE | 2.12 |
| PROGRESSION % | 22.9 |
| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | ROCKSHOX DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 350,400,400,450,500,550, |
| HEAD TUBE ANGLE | 65.0 |
| RECOMMENDED FORK TRAVEL | 150 |
| OEM FORK | BOMBER Z2 |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | Alloy rear, adjustable flip chip +.5 degree, lifts 6 mm |
| COMMENTS |
