Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

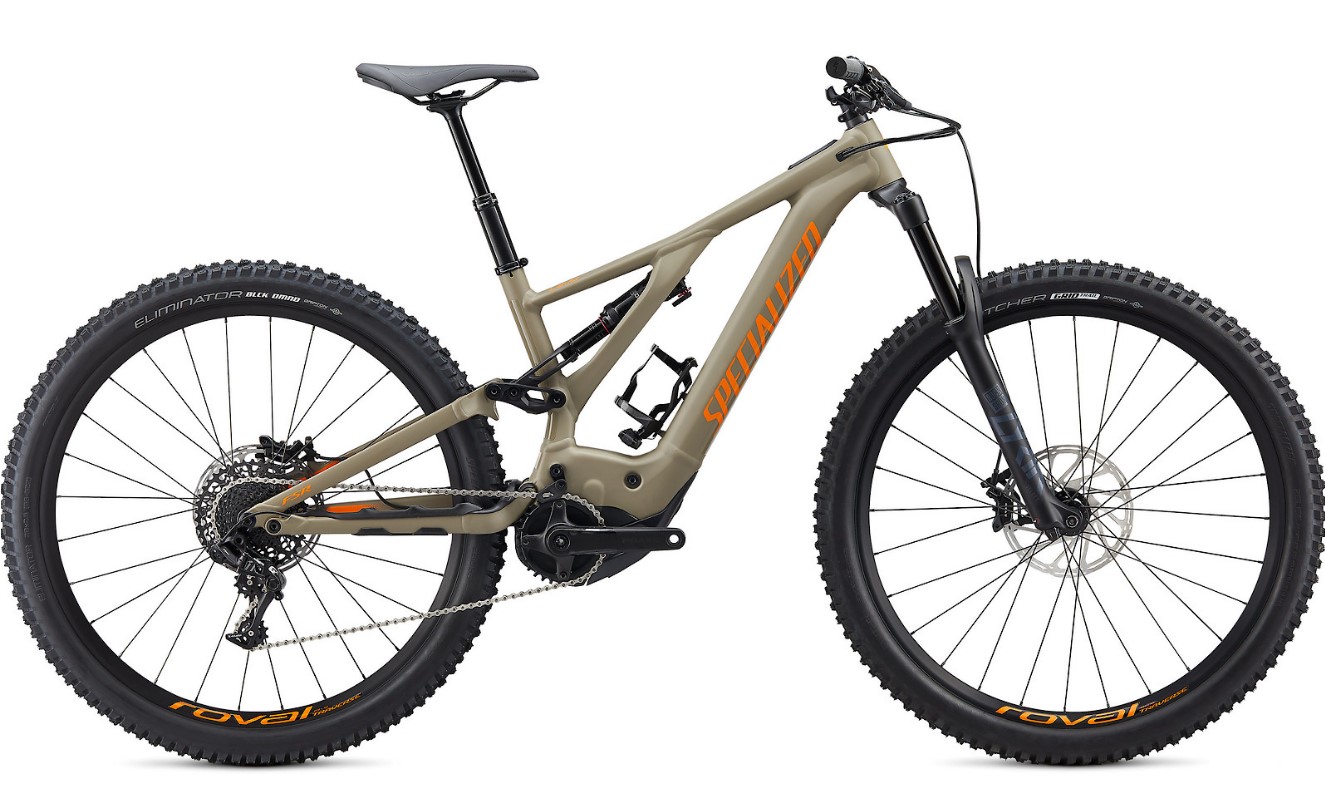

2020 SPECIALIZED Turbo Levo Comp
| MODEL VERSION YEARS | 2019-2021 |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 52 |
| SHOCK SIZE | 210 x 52.5 |
| TRAVEL MM | 150 |
| UPPER REDUCER | 20.0 x 8.0 |
| LOWER REDUCER | flip chip |
| LINKAGE | YOKE HORST LINK (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.73 |
| STARTING LEVERAGE | 3.16 |
| SAG POINT LEVERAGE | 2.93 |
| ENDING LEVERAGE | 2.67 |
| PROGRESSION % | 15.51 |

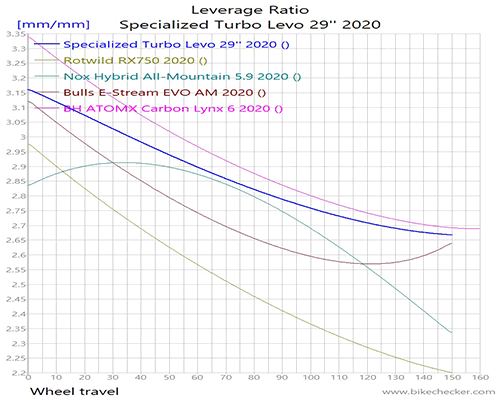

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | 4-BAR PL |
| OEM SHOCK | FOX FLOAT DPX2 |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 500,550,600,650,700,750, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 38 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | Needs chrome steel shaft upgrade, Maximum rider weight 240 lbs |
| COMMENTS | 2019-2021 |
