Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online
2020 SPECIALIZED Turbo Kenevo EXP 65mm
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 52 |
| SHOCK SIZE | 230 x 65 |
| TRAVEL MM | 187 |
| UPPER REDUCER | 20.0 x 8.0 |
| LOWER REDUCER | flip chip |
| LINKAGE | YOKE HORST LINK (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.88 |
| STARTING LEVERAGE | 3.3 |
| SAG POINT LEVERAGE | 3.0 |
| ENDING LEVERAGE | 2.65 |
| PROGRESSION % | 19.7 |

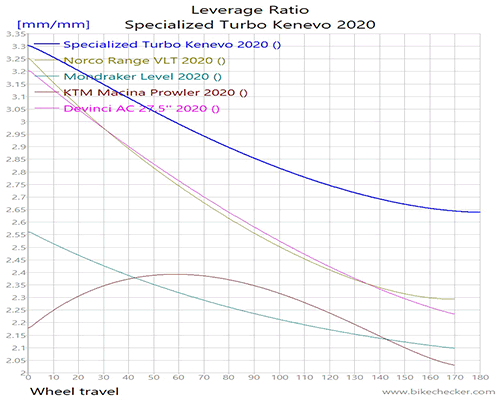

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | 4-BAR PBLE |
| OEM SHOCK | FOX FLOAT X2 |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| OEM SHOCK | FOX FLOAT DPS PERFORMANCE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 450,500,550,600,600,650, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 180 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,55, |
| COMMENTS | 2020-2023 same |
| COMMENTS |
