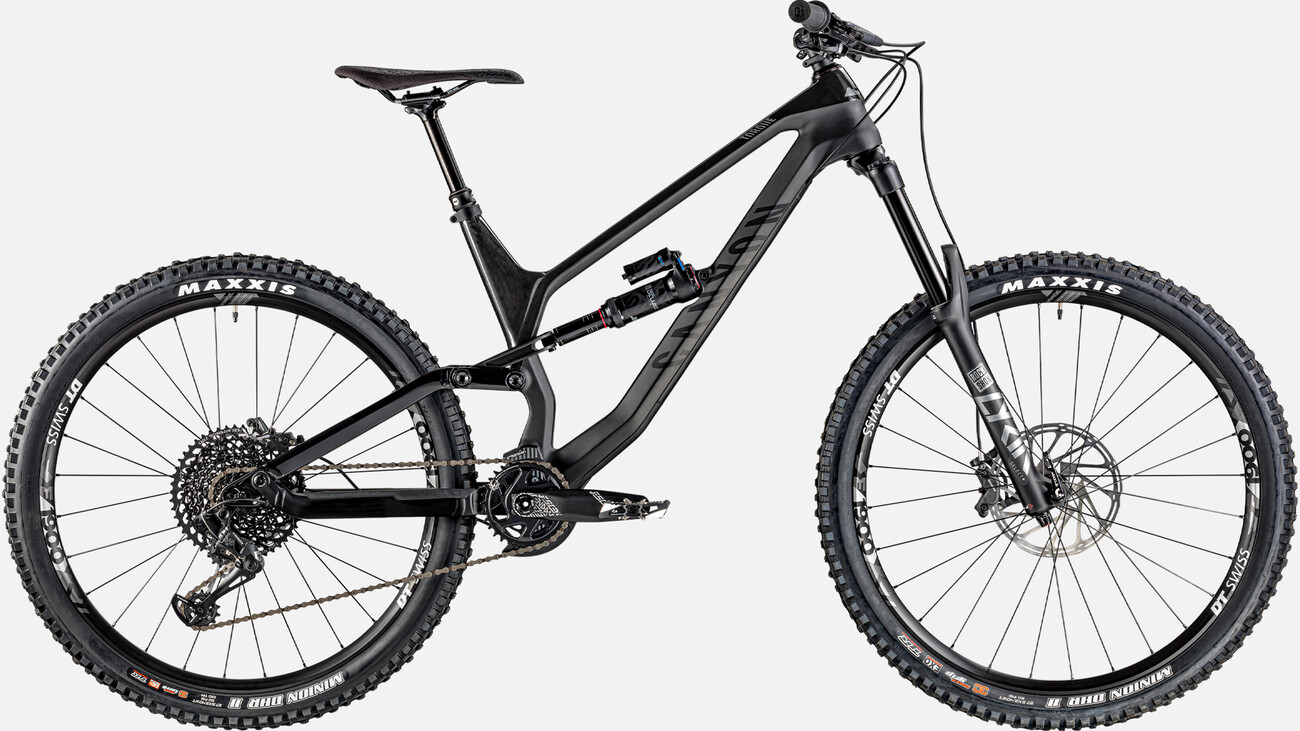

2020 CANYON TORQUE CF 7.0

MODEL VERSION YEARS 2018-2020
TIRE SIZE 27.5
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 34.7
SHOCK SIZE 250 x 70
TRAVEL MM 175
UPPER REDUCER 40.0 x 8.0
LOWER REDUCER 25.0 x 8.0
LINKAGE FOUR BAR (PROGRESSIVE)
AVERAGE LEVERAGE 2.50
STARTING LEVERAGE 3.16
SAG POINT LEVERAGE 2.68
ENDING LEVERAGE 2.18
PROGRESSION % 31.01
LEVERAGE CURVE PL

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE PL
OEM SHOCK FOX FLOAT X2
UPGRADE OPTION BOMBER CR

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 300,350,400,450,450,500,
HEAD TUBE ANGLE 65.3
RECOMMENDED FORK TRAVEL 180
OEM FORK ROCKSHOX LYRIK DEBON AIR
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX ZEB HYBRID
UPGRADE OPTION CARTRIDGE/SPRING Fox 38 HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 35,35,40,45,50,55,
COMMENTS 170 MM 29ER, 63.5 ADJUSTMENT(8mm bb height)
COMMENTS aluminum version available
