All data is our best estimate based on the information provided online

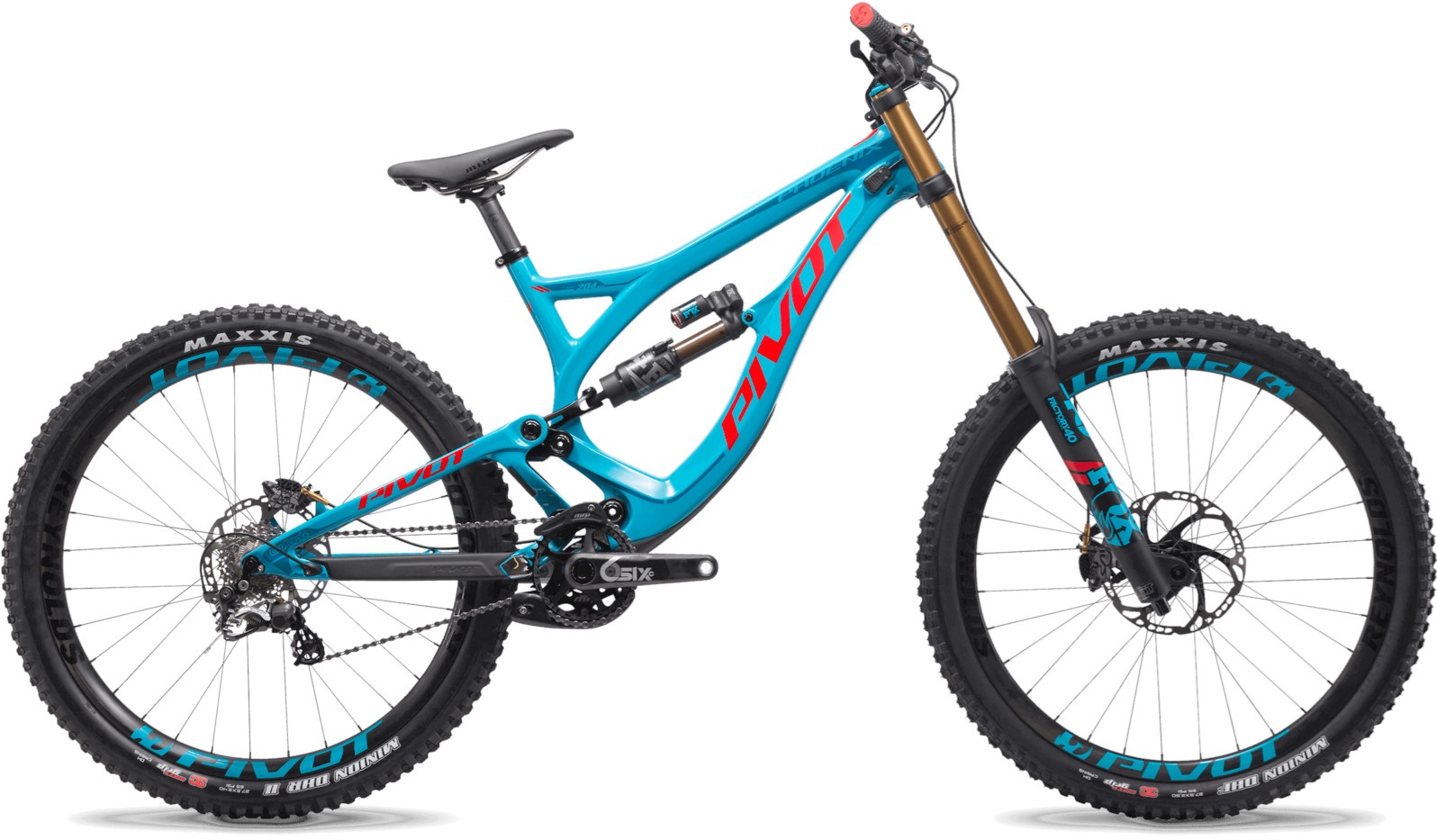

2020 PIVOT Phoenix V2
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 38 |
| SHOCK SIZE | 9.5 x 3.00 |
| TRAVEL MM | 204 |
| UPPER REDUCER | 22.0 x 8.0 |
| LOWER REDUCER | Direct |
| LINKAGE | Yoke (Progressive) |
| AVERAGE LEVERAGE | 2.68 |
| STARTING LEVERAGE | 3.5 |
| SAG POINT LEVERAGE | 2.8 |
| ENDING LEVERAGE | 2.45 |
| PROGRESSION % | 30.0 |

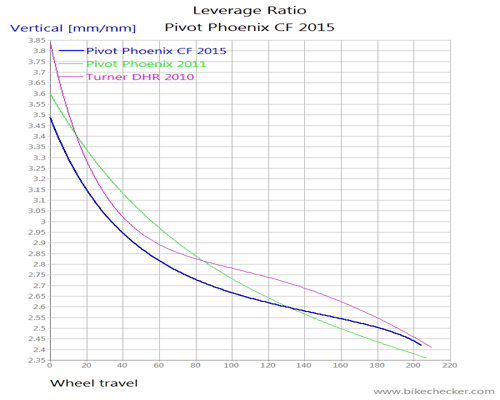

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PBLE |
| OEM SHOCK | FOX FLOAT X2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | ROCKSHOX COIL SUPER DELUXE |
| SUGGESTED SHOCK SPRING | 300,350,400,450,500,500, |
| HEAD TUBE ANGLE | 62.5 |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,40,45, |
| COMMENTS | V2 2016-2020 |
| COMMENTS |
