2020 EVIL BIKES Following V3
| MODEL VERSION YEARS | 2020- |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 28 |
| SHOCK SIZE | 165 x 45,T |
| TRAVEL MM | 120 |
| UPPER REDUCER | Trunnion x 10 |
| LOWER REDUCER | 20.0 x 8.0 |
| LINKAGE | DW (DELTA LINKAGE SYSTEM) SINGLE PIVOT |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 3.1 |
| SAG POINT LEVERAGE | 2.7 |
| ENDING LEVERAGE | 2.45 |
| PROGRESSION % | 21.0 |

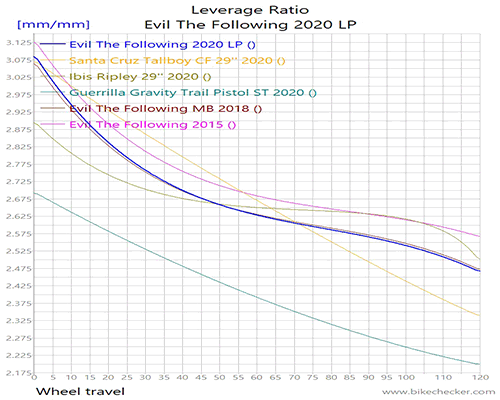

| LEVERAGE CURVE | PBLE
|

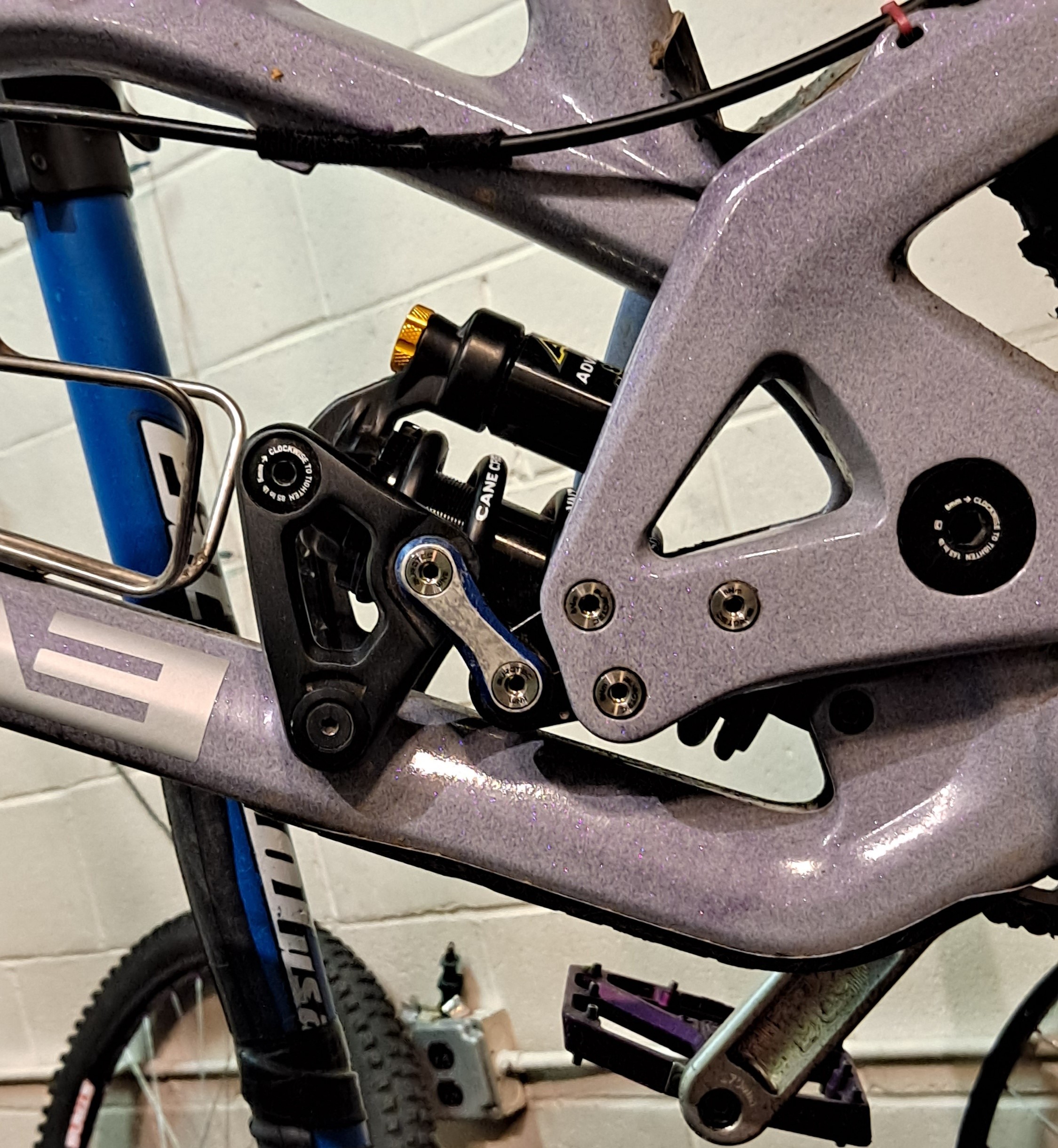

| Installed Pictures | Installed Views
|
| SHOCK TUNE | PROGRESSIVE PBLE |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |

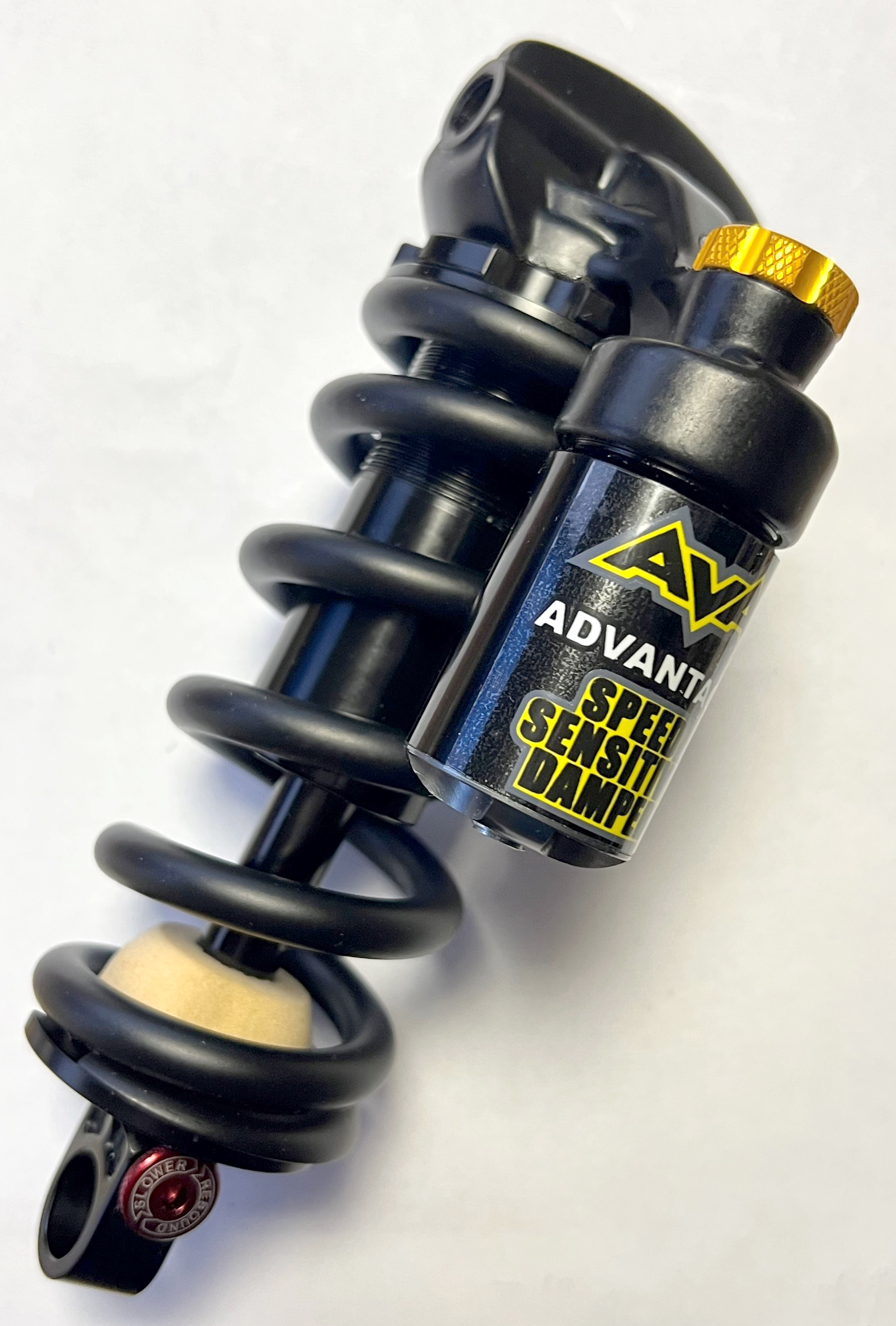

| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 500,550,600,700,750,800, |
| HEAD TUBE ANGLE | 66.4 |
| RECOMMENDED FORK TRAVEL | 130 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 45,50,55,60,65,70, |
| COMMENTS | flip chip for high low bb |
| COMMENTS |
