Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

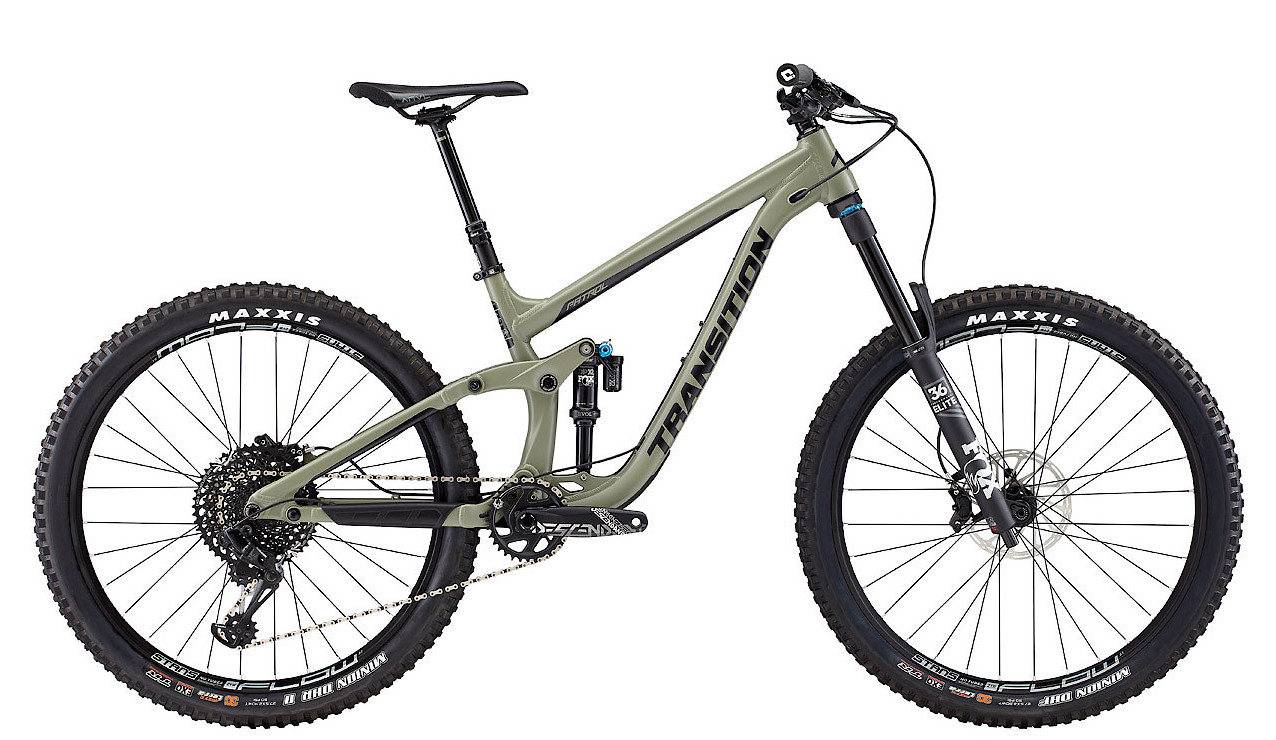

2019 TRANSITION Patrol Alloy
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 160 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (SLIGHT PROGRESSION) |
| AVERAGE LEVERAGE | 2.46 |
| STARTING LEVERAGE | 2.52 |
| SAG POINT LEVERAGE | 2.56 |
| ENDING LEVERAGE | 2.34 |
| PROGRESSION % | 7.1 |
| LEVERAGE CURVE | RP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | 4-BAR RP |
| OEM SHOCK | FOX FLOAT DPX2 |
| UPGRADE OPTION | BOMBER CR with link |
| UPGRADE OPTION | ROCKSHOX SUPER DELUXE |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | Leverage too low for coil, needs more progression, Cascade linkage(24.5%) |
| COMMENTS |
