2019 KONA Operator
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 or 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 40 |
| SHOCK SIZE | 225 x 75 |
| TRAVEL MM | 205 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.73 |
| STARTING LEVERAGE | 2.97 |
| SAG POINT LEVERAGE | 2.86 |
| ENDING LEVERAGE | 2.28 |
| PROGRESSION % | 23.2 |

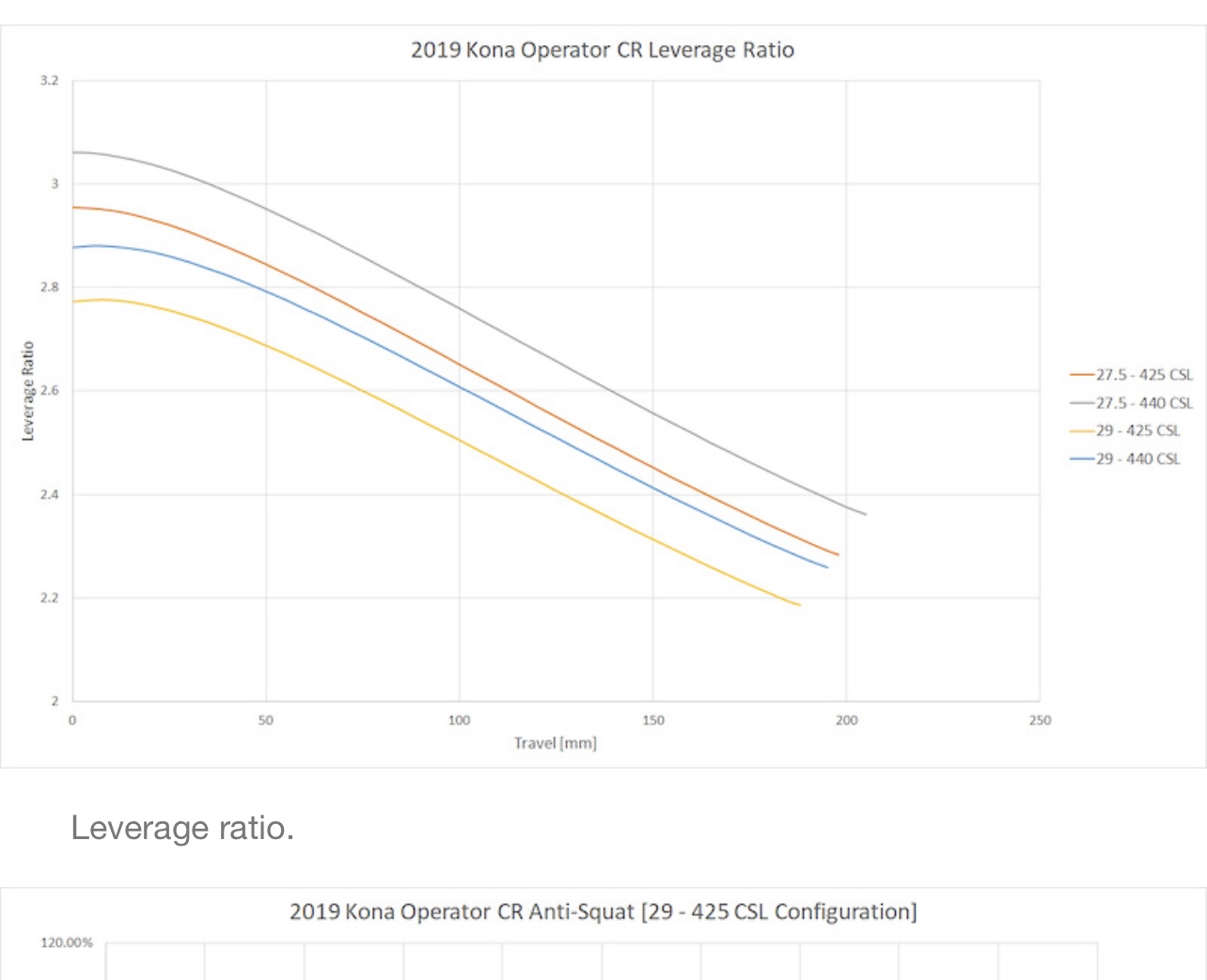

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,400,400,450,500,550, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 200 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,40,45, |
| COMMENTS | 29er 195 travel, leverage for 27.5 425 CSL |
| COMMENTS |
