All data is our best estimate based on the information provided online
2019 SANTA CRUZ MEGATOWER V1
| MODEL VERSION YEARS | 2019-2021 |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 230 x 57.5 |
| TRAVEL MM | 160 |
| UPPER REDUCER | 20.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | VP (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.78 |
| STARTING LEVERAGE | 3.42 |
| SAG POINT LEVERAGE | 3.08 |
| ENDING LEVERAGE | 2.33 |
| PROGRESSION % | 31.9 |

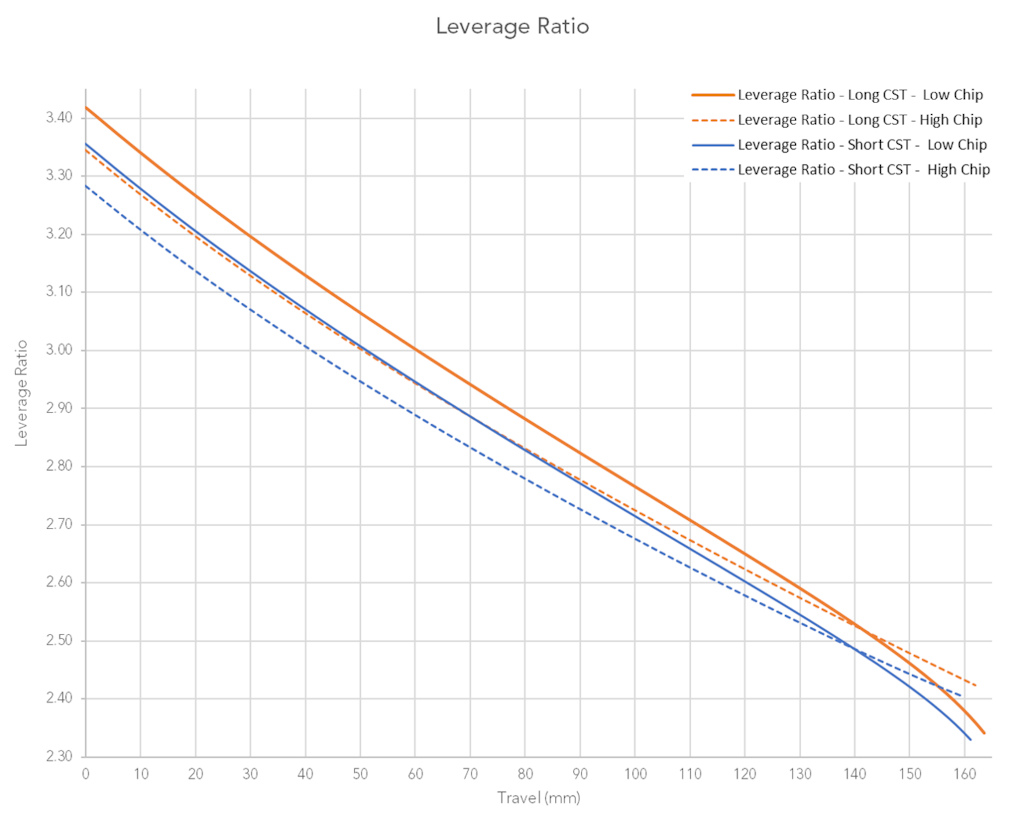

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | FOX DHX2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 400,450,500,550,650,700, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | V1 2019-2021, 4 position chip, short cst/high chip=26.8% |
| COMMENTS |
