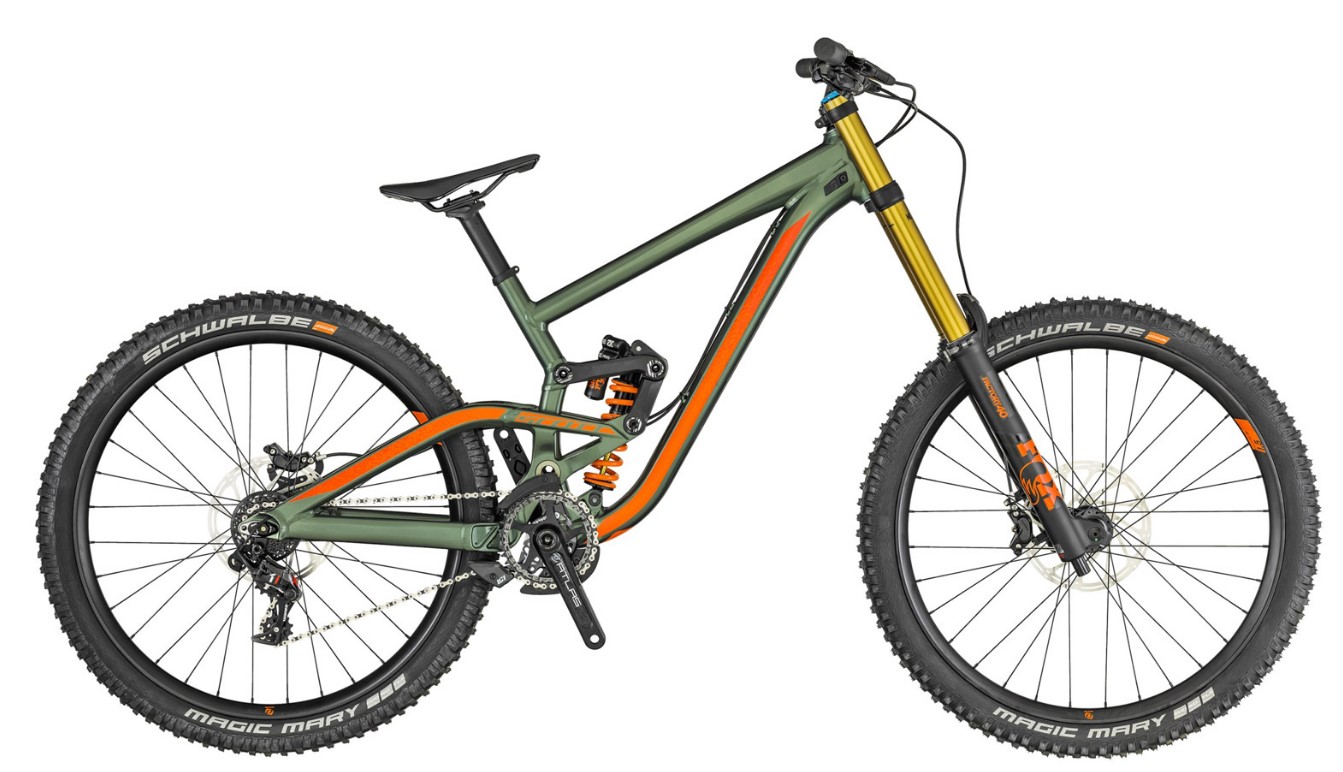

2019 SCOTT Gambler
| MODEL VERSION YEARS | 2018-2019 |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 37.3 |
| SHOCK SIZE | 9.5 x 3.00 |
| TRAVEL MM | 210 |
| UPPER REDUCER | 60.0 x 8.0 |
| LOWER REDUCER | 22.2 x 8.0 |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.76 |
| STARTING LEVERAGE | 3.53 |
| SAG POINT LEVERAGE | 3.08 |
| ENDING LEVERAGE | 2.3 |
| PROGRESSION % | 34.8 |

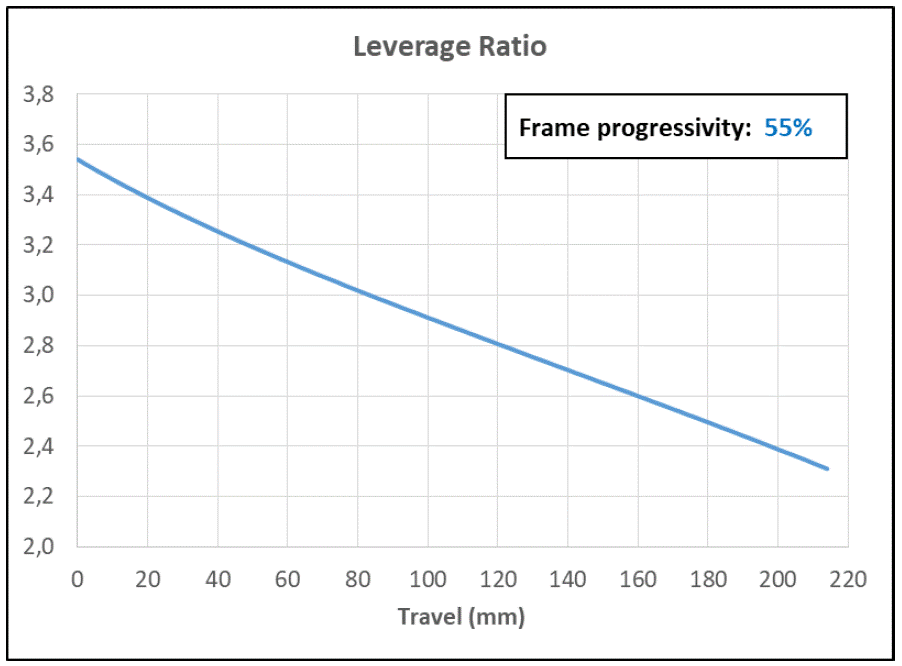

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | FOX VANRC |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | AVALANCHE WOODIE |
| SUGGESTED SHOCK SPRING | 350,350,400,450,500,550, |
| HEAD TUBE ANGLE | 63.7 |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | FOX 40 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 40 HYBRID OPEN BATH |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 25,30,35,40,40,45, |
| COMMENTS | 2 position Flip Chip low/high/AHTA 63/63.7, can use 27.5 tires |
| COMMENTS | Chain stay 435/450 mm, best estimate Leverage |
