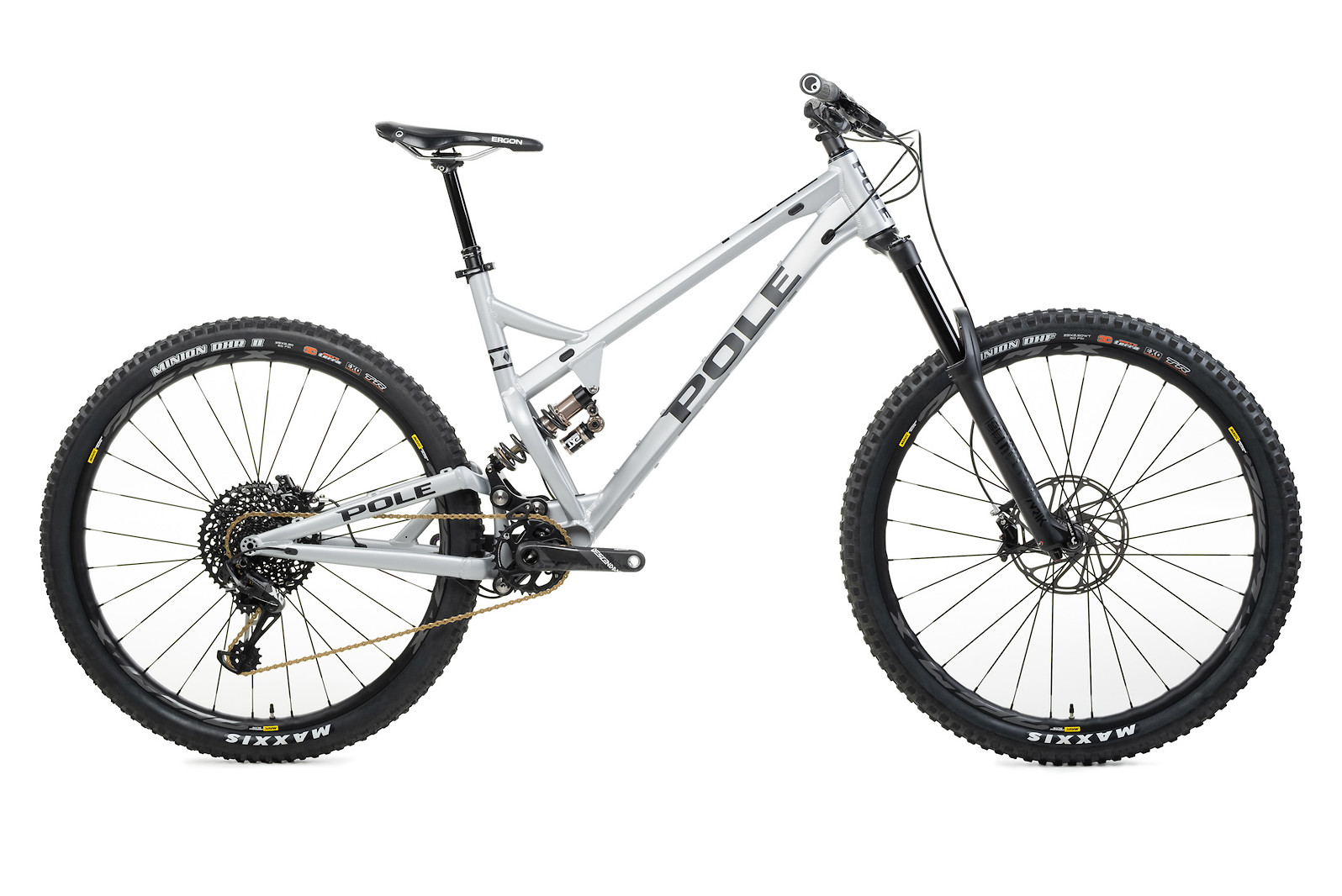

2019 Pole Evolink 1.4
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 144 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.62 |
| STARTING LEVERAGE | 3.11 |
| SAG POINT LEVERAGE | 2.75 |
| ENDING LEVERAGE | 2.33 |
| PROGRESSION % | 25.1 |

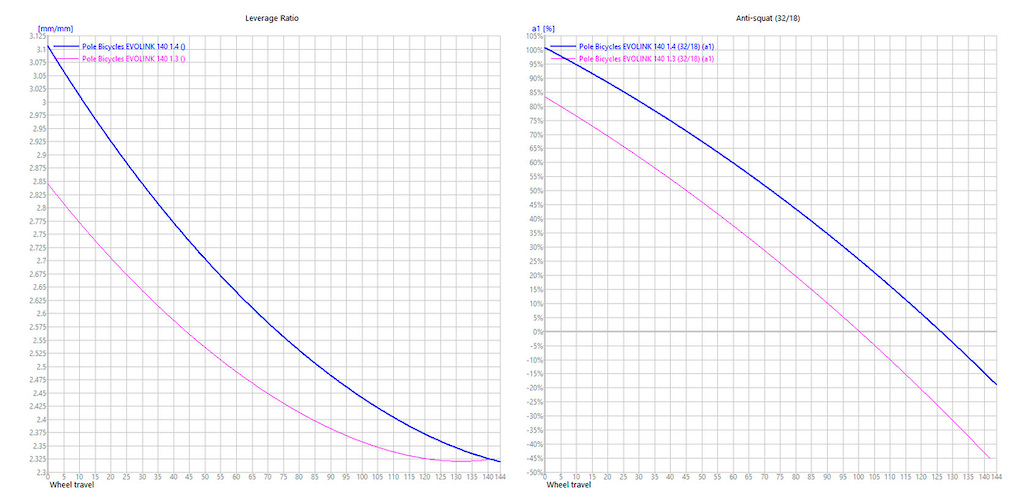

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | TTX |
| OEM SHOCK | EXT |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | |
| COMMENTS | |
| COMMENTS |
