2018 CANYON Sender CF 8.0

MODEL VERSION YEARS
TIRE SIZE 29 Front 27.5 Rear
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 36.5
SHOCK SIZE 240 x 76
TRAVEL MM 200
UPPER REDUCER 22.0 x 8.0
LOWER REDUCER 22.2 x 8.0
LINKAGE FOUR BAR (PROGRESSIVE)
AVERAGE LEVERAGE 2.63
STARTING LEVERAGE 3.3
SAG POINT LEVERAGE 2.85
ENDING LEVERAGE 2.3
PROGRESSION % 30.3

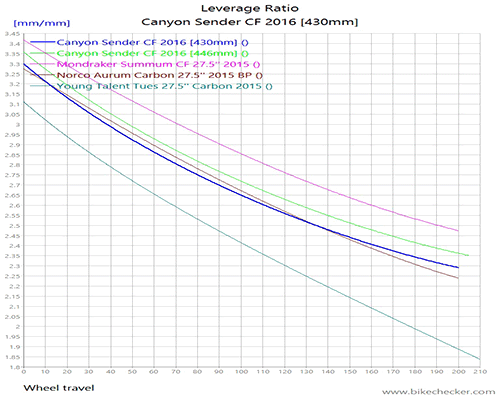

LEVERAGE CURVE HPL

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE HPL
OEM SHOCK ROCKSHOX VIVID AIR
OEM SHOCK ROCKSHOX COIL SUPER DELUXE
UPGRADE OPTION BOMBER CR

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 300,350,400,450,450,500,
HEAD TUBE ANGLE 63
RECOMMENDED FORK TRAVEL 200
OEM FORK
UPGRADE OPTION CARTRIDGE/SPRING Fox 40 HYBRID
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX BOXXER HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 30,30,35,40,40,45,
COMMENTS 9.5 x 3.0, adjustable leverage positions, Rear can accept 29er tire at a lower leverage position
COMMENTS Best estimate Leverage
