Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online
2018 INTENSE M16
| MODEL VERSION YEARS | 2018-2020 |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 38 |
| SHOCK SIZE | 250 x 75 |
| TRAVEL MM | 216 |
| UPPER REDUCER | 33.65 x 8.0 |
| LOWER REDUCER | 22.0 x 8.0 |
| LINKAGE | ROCKER LINKAGE (RISING RATE) |
| AVERAGE LEVERAGE | 2.88 |
| STARTING LEVERAGE | 3.55 |
| SAG POINT LEVERAGE | 3.05 |
| ENDING LEVERAGE | 2.5 |
| PROGRESSION % | 29.6 |

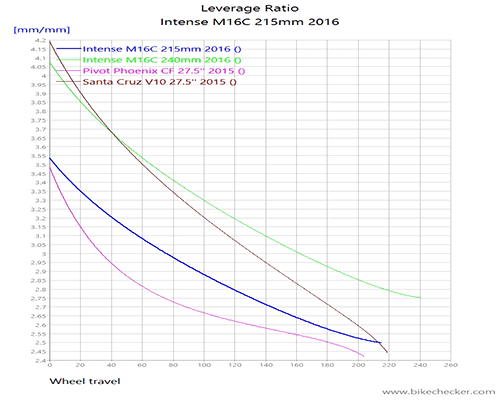

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | Vivid |
| UPGRADE OPTION | AVALANCHE WOODIE |
| UPGRADE OPTION | FOX VANRC |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,400,450,500,500,550, |
| HEAD TUBE ANGLE | 63.1 |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,40,45, |
| COMMENTS | Higher travel is not useful, too much leverage (4.05 to 1). |
| COMMENTS |
