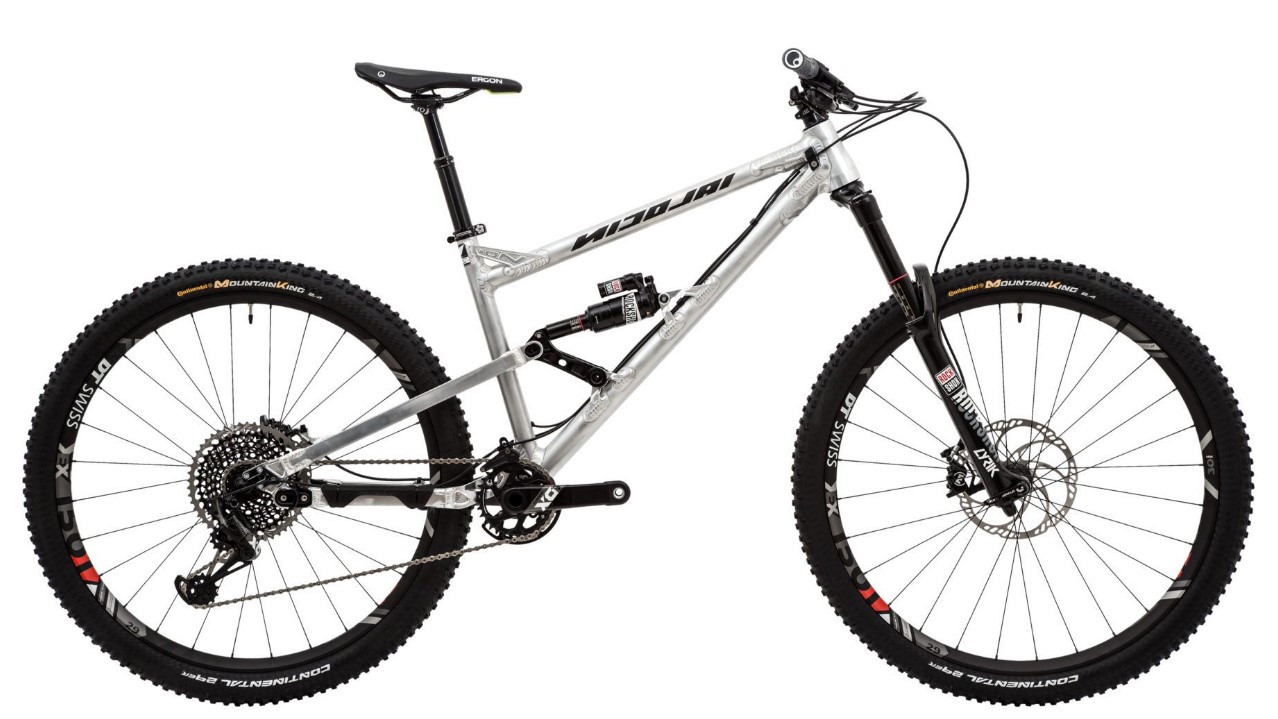

2018 NICOLAI Ion G15
| MODEL VERSION YEARS | -2018 |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 37 |
| SHOCK SIZE | 216 x 63 |
| TRAVEL MM | 150 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.38 |
| STARTING LEVERAGE | 2.9 |
| SAG POINT LEVERAGE | 2.57 |
| ENDING LEVERAGE | 2.0 |
| PROGRESSION % | 31.0 |

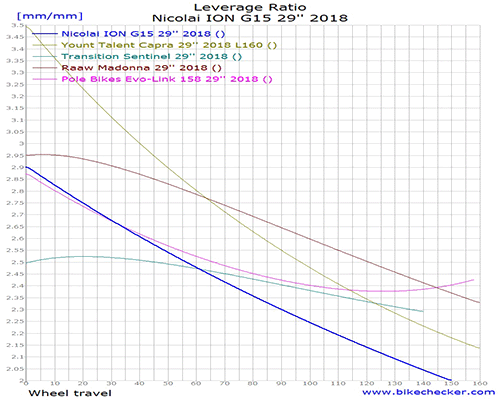

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX FLOAT X2 |
| OEM SHOCK | MONARCH PLUS RC3 DEBON AIR |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 350,350,400,450,500,550, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | ROCKSHOX LYRIK DEBON AIR |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | AHTA 64.0 |
| COMMENTS |
