All data is our best estimate based on the information provided online

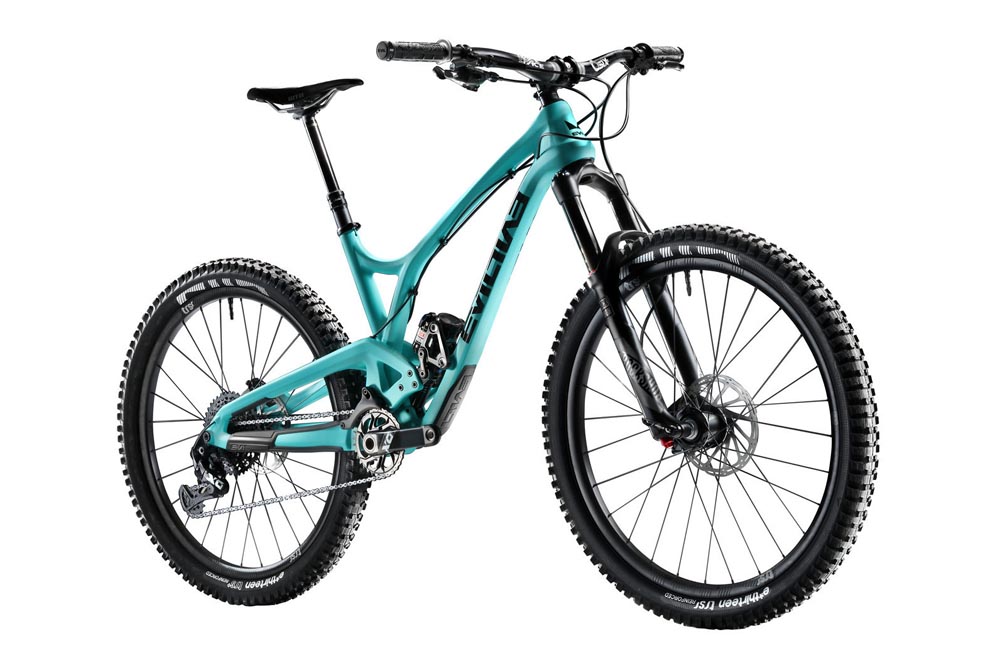

2018 EVIL BIKES Calling LT
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 185 x 55,T |
| TRAVEL MM | 143 |
| UPPER REDUCER | Trunnion x 10.0 |
| LOWER REDUCER | 20.0 x 8.0 |
| LINKAGE | DW (DELTA LINKAGE SYSTEM) SINGLE PIVOT |
| AVERAGE LEVERAGE | 2.60 |
| STARTING LEVERAGE | 3.3 |
| SAG POINT LEVERAGE | 2.64 |
| ENDING LEVERAGE | 2.35 |
| PROGRESSION % | 28.8 |

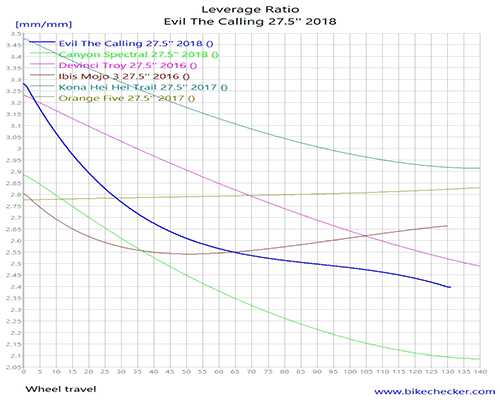

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views
|
| SHOCK TUNE | PROGRESSIVE PBLE |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | ROCKSHOX SUPER DELUXE |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 66.4 |
| RECOMMENDED FORK TRAVEL | 150 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | flip chip for high low bb, remove 10 mm from reservoir |
| COMMENTS |
