All data is our best estimate based on the information provided online
2018 SANTA CRUZ 5010 V3
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 210 x 50 |
| TRAVEL MM | 130 |
| UPPER REDUCER | 20.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | VP (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.60 |
| STARTING LEVERAGE | 2.65 |
| SAG POINT LEVERAGE | 2.68 |
| ENDING LEVERAGE | 2.36 |
| PROGRESSION % | 10.94 |

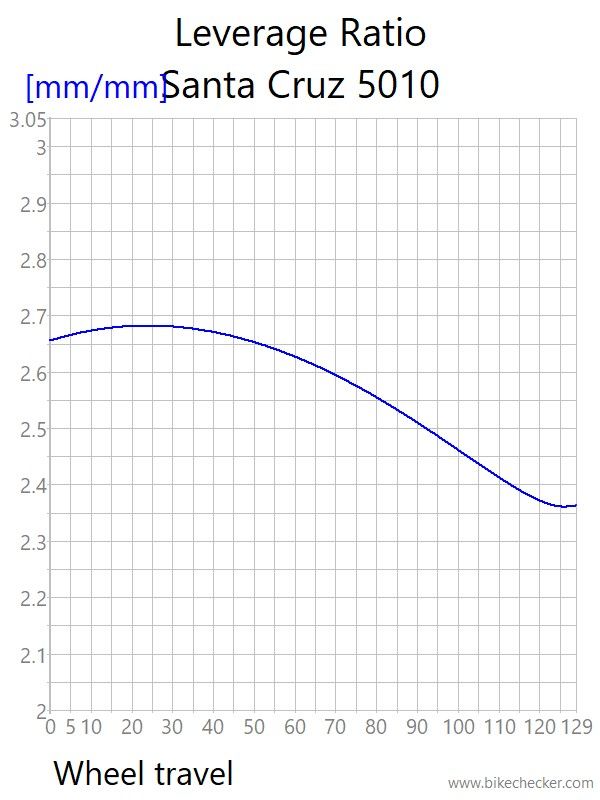

| LEVERAGE CURVE | LP
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE LP |
| OEM SHOCK | FOX FLOAT DPX2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | ROCKSHOX COIL SUPER DELUXE |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | 66.5 |
| RECOMMENDED FORK TRAVEL | 140 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,65, |
| COMMENTS | 2018-2020 |
| COMMENTS |
