2017 ROCKY MOUNTAIN Maiden
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 35 |
| SHOCK SIZE | 9.5 x 3.00 |
| TRAVEL MM | 200 |
| UPPER REDUCER | 30.0 x 10.0 |
| LOWER REDUCER | 30.0 x 10.0 |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.63 |
| STARTING LEVERAGE | 3.05 |
| SAG POINT LEVERAGE | 2.80 |
| ENDING LEVERAGE | 2.15 |
| PROGRESSION % | 29.5 |

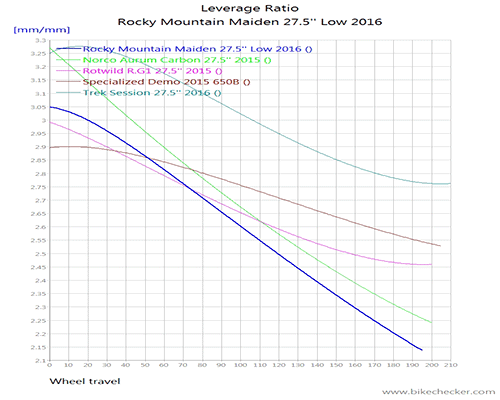

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | FOX VANRC |
| OEM SHOCK | FOX DHX2 |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 300,350,400,450,450,500, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 200 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 25,30,35,40,40,45, |
| COMMENTS | shock installed upside down |
| COMMENTS |
