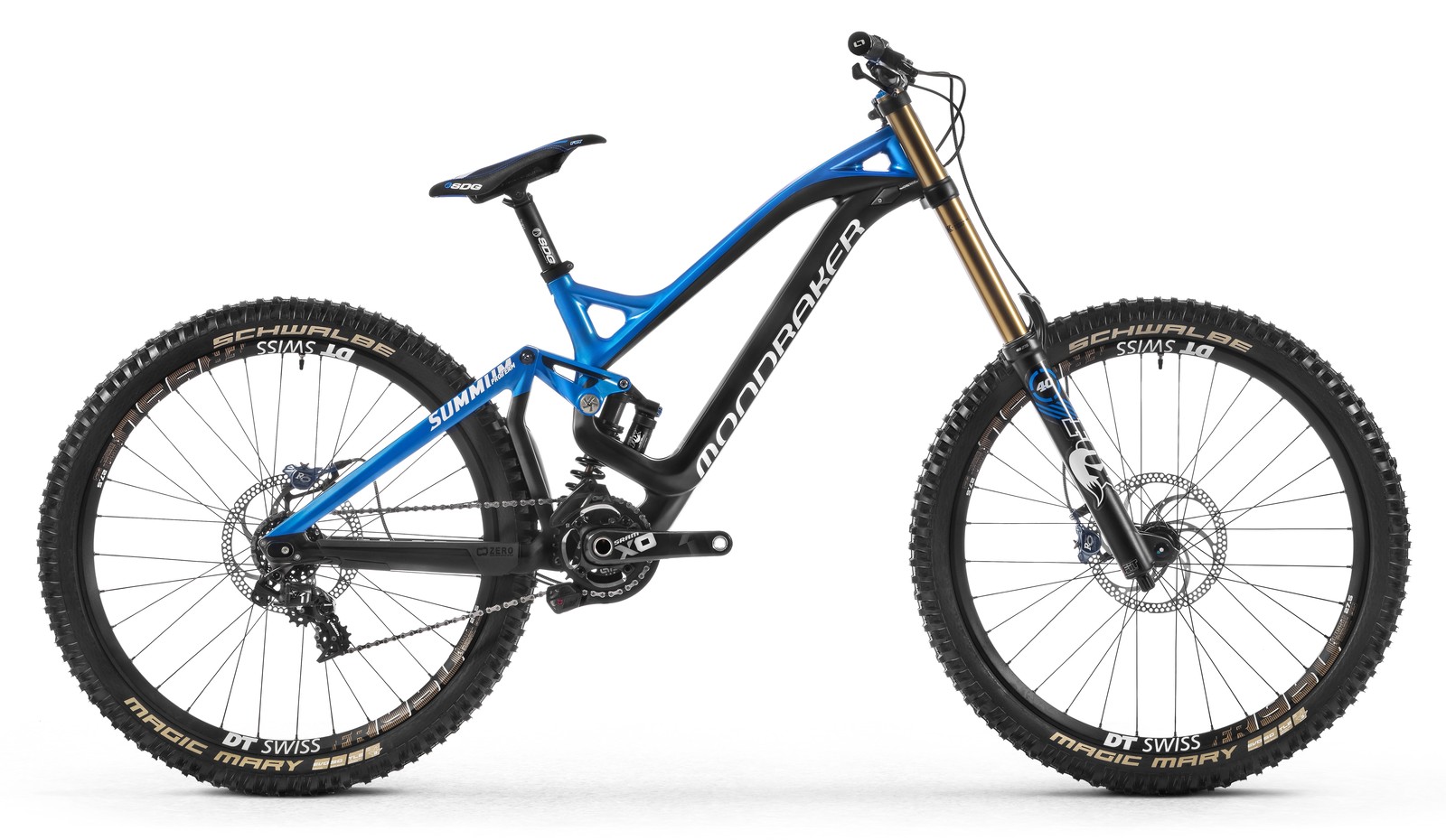

2015 MONDRAKER Summum
| MODEL VERSION YEARS | |
|---|---|
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 35 |
| SHOCK SIZE | 8.75 x 2.75 |
| TRAVEL MM | 200 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |

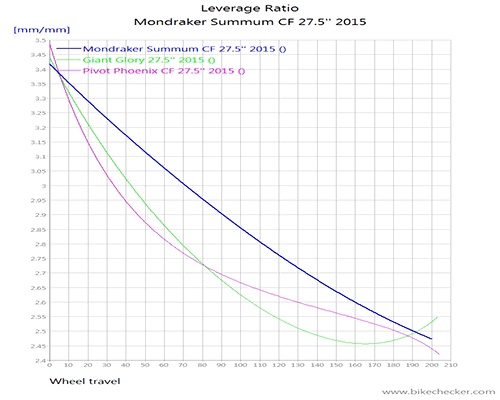

| AVERAGE LEVERAGE | 2.86 |
| STARTING LEVERAGE | 3.4 |
| SAG POINT LEVERAGE | 3.05 |
| ENDING LEVERAGE | 2.5 |
| PROGRESSION % | 26.5 |

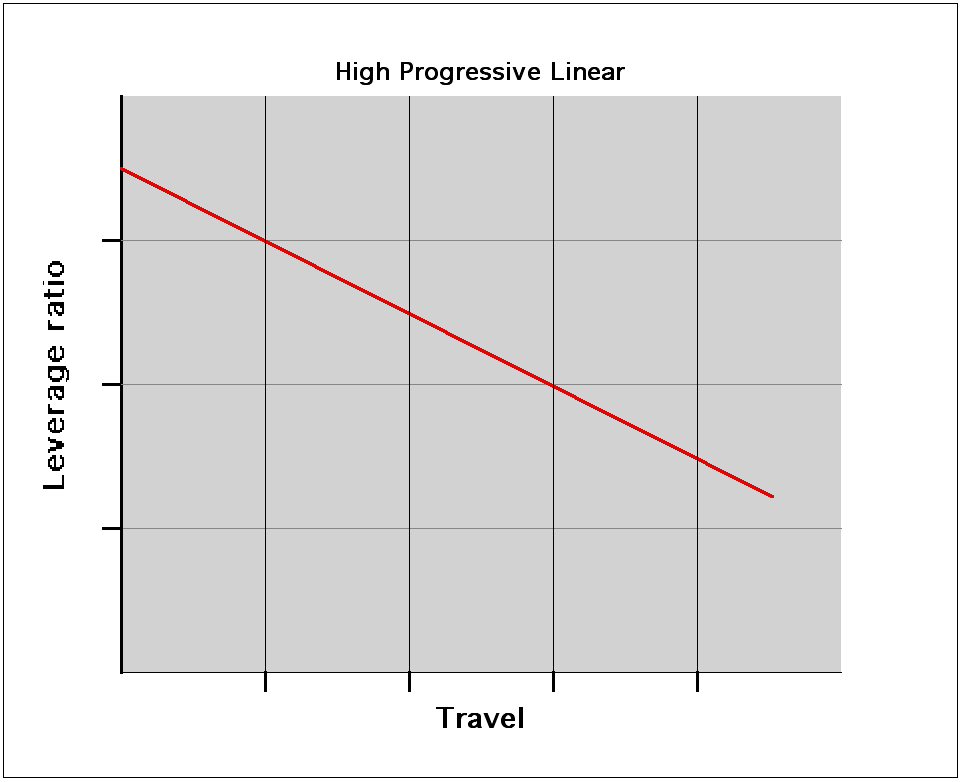

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | FOX VANRC |
| UPGRADE OPTION | AVALANCHE WOODIE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX VANRC |
| SUGGESTED SHOCK SPRING (140/160/180/200/220/240 LBS) | 400,450,500,550,600,600, |
| HEAD TUBE ANGLE | 63 |
| RECOMMENDED FORK TRAVEL | 2003 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | |
| SUGGESTED FORK SPRING WITH OUR CARTRIDGE(140/160/180/200/220/240 LBS) | |
| COMMENTS | 2015-2017 |
| COMMENTS |
