Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

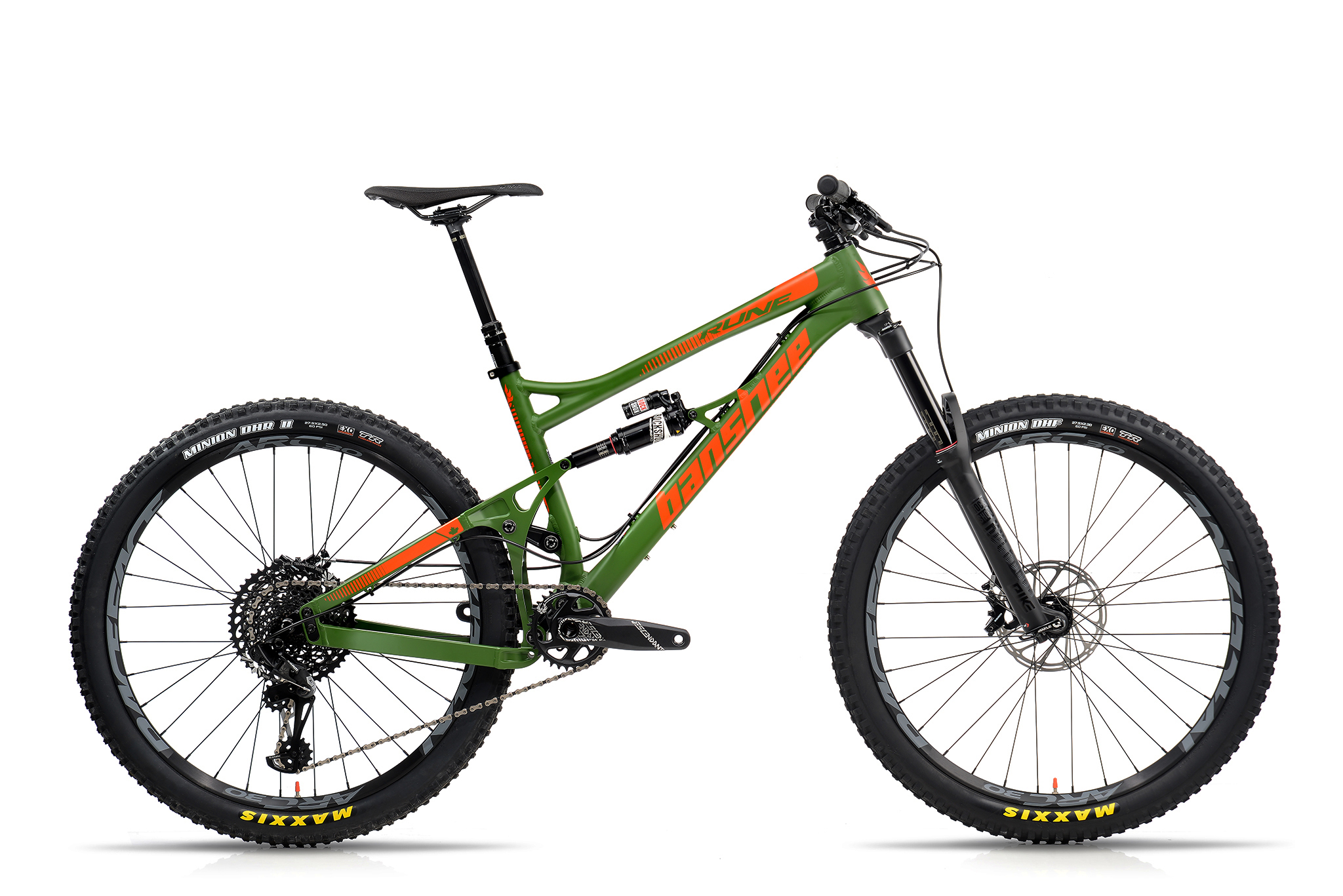

2014 BANSHEE Rune V2
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 35 |
| SHOCK SIZE | 8.5 x 2.50 |
| TRAVEL MM | 160 |
| UPPER REDUCER | 20.0 x 8.0 |
| LOWER REDUCER | 40.0 x 8.0 |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.52 |
| STARTING LEVERAGE | 2.95 |
| SAG POINT LEVERAGE | 2.62 |
| ENDING LEVERAGE | 2.4 |
| PROGRESSION % | 18.6 |

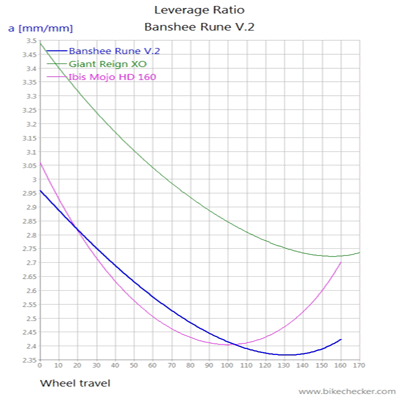

| LEVERAGE CURVE | PR
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/REGRESSIVE PR |
| OEM SHOCK | MONARCH PLUS RC3 |
| OEM SHOCK | FOX FLOAT CTD EVOLUTION |
| UPGRADE OPTION | FOX VANRC |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX FLOAT DPS PERFORMANCE |
| SUGGESTED SHOCK SPRING | 350,400,450,500,500,550, |
| HEAD TUBE ANGLE | 65.0 |
| RECOMMENDED FORK TRAVEL | 120 |
| OEM FORK | ROCKSHOX LYRIK SOLO AIR |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 34 STEP-CAST |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX PIKE |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z21 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 50,55,60,65,75,80, |
| COMMENTS | ADJ HTA 64.5 Deg |
| COMMENTS |
