Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

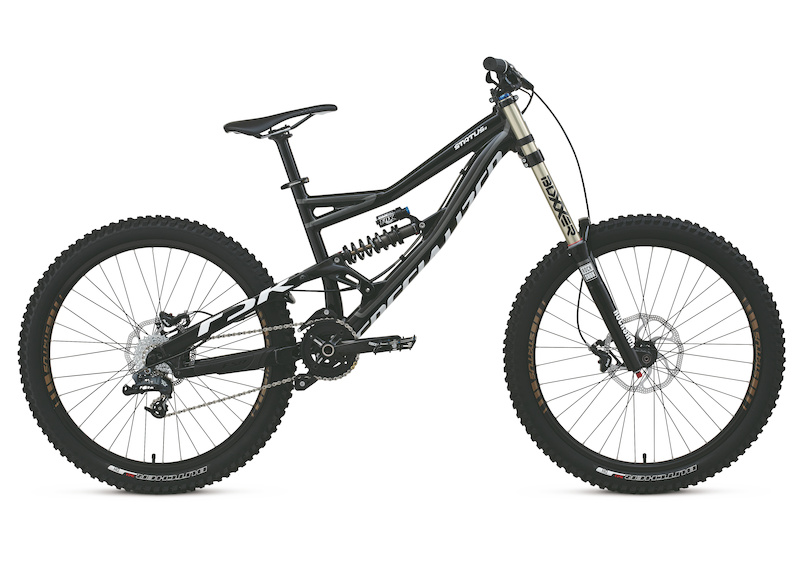

2013 SPECIALIZED Status II
| MODEL VERSION YEARS | 2013- |
|---|---|
| TIRE SIZE | 26 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 38.5 |
| SHOCK SIZE | 8.75 x 2.75 |
| TRAVEL MM | 200 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | YOKE FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.86 |
| STARTING LEVERAGE | 3.4 |
| SAG POINT LEVERAGE | 3.06 |
| ENDING LEVERAGE | 2.62 |
| PROGRESSION % | 22.9 |

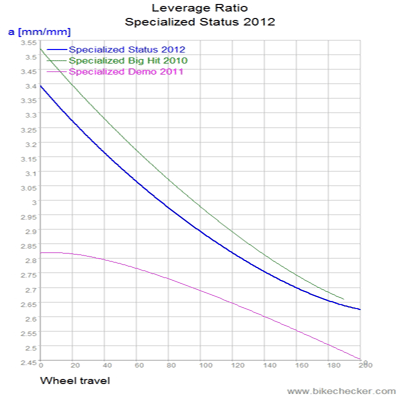

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | FOX VANRC |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX VANRC |
| SUGGESTED SHOCK SPRING | 400,400,450,500,550,600, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 200 |
| OEM FORK | ROCKSHOX BOXXER RC ROCKSHOX DOMAIN DUAL CROWN |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER RC |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,40,45, |
| COMMENTS | |
| COMMENTS |
