All data is our best estimate based on the information provided online
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 26 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 34 |
| SHOCK SIZE | 7.875 x 2.00 |
| TRAVEL MM | 115 |
| UPPER REDUCER | 22.0 x 8.0 |
| LOWER REDUCER | 18.0 x 8.0 |
| LINKAGE | VP (REGRESSIVE/PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.25 |
| STARTING LEVERAGE | 2.0 |
| SAG POINT LEVERAGE | 2.65 |
| ENDING LEVERAGE | 1.88 |
| PROGRESSION % | 6.0 |

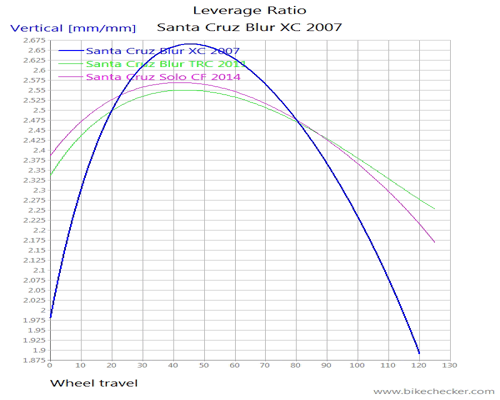

| LEVERAGE CURVE |
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | REGRESSIVE/PROGRESSIVE |
| OEM SHOCK | 5TH ELEMENT AIR 5-WAY |
| UPGRADE OPTION | FOX FLOAT DPS |
| UPGRADE OPTION | FOX FLOAT CTD |
| UPGRADE OPTION | MONARCH RT3 |
| SUGGESTED SHOCK SPRING | Not Coil Compatible |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 130 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 50,60,65,70,75,85, |
| COMMENTS | up to 2007 |
| COMMENTS |
